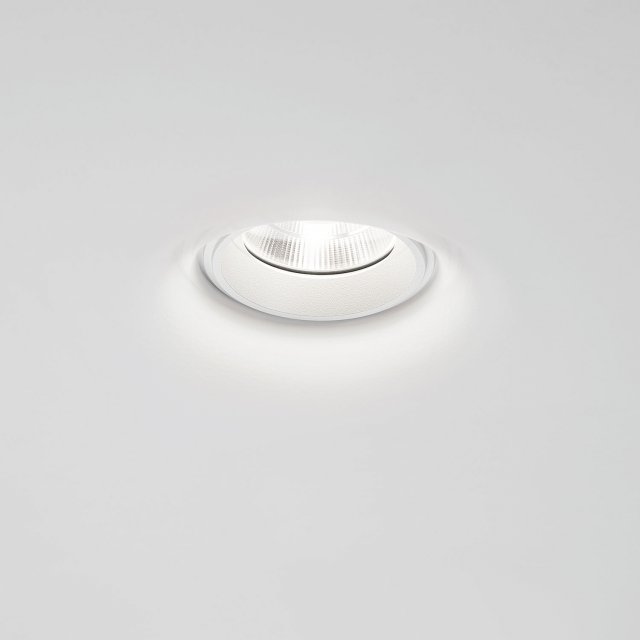

GYN 1 SOFT 92733 W

GYN 1 FRAME + GYN SNAP-IN SOFT DIM W

White - 415 95 63 + 415 411 81120 W
CRI
Beam angle
CCT

General

Location
Indoor
Fixation
Ceiling
Installation
Recessed
Cutout shape
square
Cutout size (mm)
140 x 140
Min. recessed depth (mm)
80
Thickness of mounting surface (mm)
min.7 - max.18
IP
IP23/20
Weight (kg)
1.3
Adjustability
non adjustable
Information
INCL.1 x REFLECTOR FL-40° EXCL.DIMMABLE LED POWER SUPPLY 650mA-DC

Electrical

Class
III
Dimming type
Soft Dim

Lightsource

Light source
LED
LED information
LED array 10W / CRI>80 / 2700K-1800K / 850lm
SDCM
SDCM3
Riskgroup
RG0
LED technics (light source)
850lm // 10W // 85lm/W
LED technics (luminaire)
588lm // 12W // 51lm/W

Additional

Remarks
Parts to be ordered separately
Requirements
DIMMABLE LED POWER SUPPLY 650mA-DC
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Ceiling compatibility

Please find an overview of the suitable ceiling types for this specific product.

Ceiling Type
Mounting kit
systemceiling.svg
system ceiling
-
plasterboard.svg
plasterboard
-
stucanet.svg
stucanet
-
