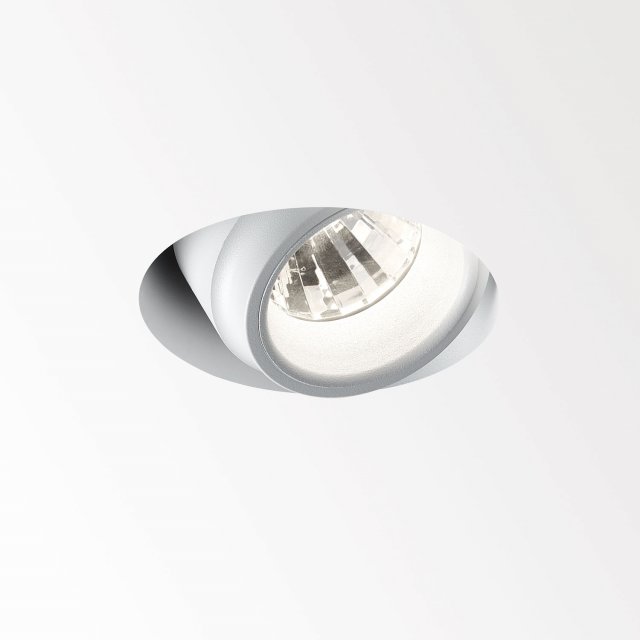

PINTOR 63 TRIMLESS XR19 93043
202 403 13 933
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 120 |
| IP | IP23/20 |
| Weight (kg) | 0.5 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | INCL.1 x REFLECTOR WFL-43°
EXCL.DIMMABLE LED POWER SUPPLY 500-600mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | LED Xicato Artist 10,9-13,3W / CRI>95 / 3000K / 965-1130lm |
| LED technics (light source) | 1130lm // 13,3W // 85lm/W |
| LED technics (luminaire) | 1018lm // 15,3W // 67lm/W |
Additional
| Requirements | PINTOR 63 XR TUBE
MOUNTING KIT PINTOR 63 TRIMLESS
PINTOR 63 FRONTRING |
| Options | LED POWER SUPPLY 500 / 600mA-DC DIM |
| Accessories | HONEYCOMB 50
LINEAR SPREAD LENS 50
SPREAD LENS 50
SOFTENING LENS 50
GLASS SBL 50 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5 | - | III | DALI | IP20 | round | 30 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 1(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 1(1) | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 2(2) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 1(1) | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 4(3) | 3(2) | Add to pinlist |
