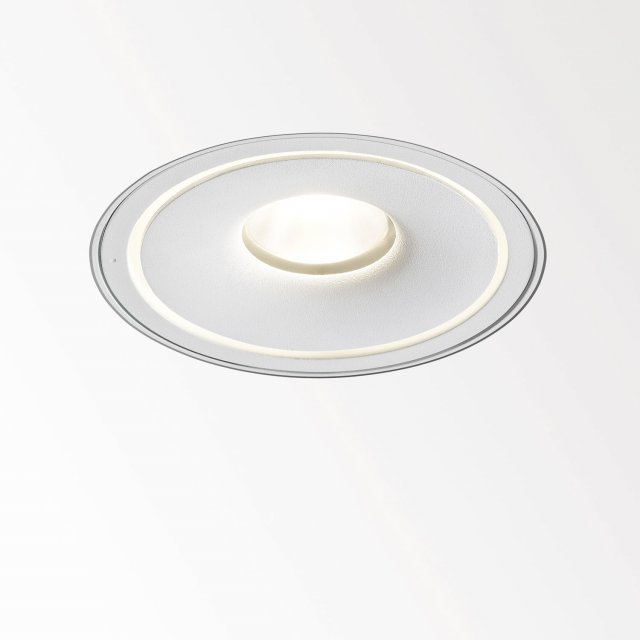

TWEETER TRIMLESS REO 3033 W-W
White-White - 206 21 28122 W-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 100 |
| IP | IP23/20 |
| Weight (kg) | 0.7 |
| Adjustability | 0° to 45° swiveling, 355° rotatable |
| Information | INCL.1 x REFLECTOR FL-33°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | LED array 7-10W / CRI>80 / 3000K / 680-958lm |
| LED technics (light source) | 958lm // 10W // 91lm/W |
| LED technics (luminaire) | 775lm // 11,5W // 67lm/W |
Additional
| Requirements | MOUNTING KIT TWEETER TRIMLESS |
| Options | LED POWER SUPPLY 350 / 500mA-DC DIM |
| Accessories | TWEETER CLIP + ACCESSORIES |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 350mA-DC / 10W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 42 | 1 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 18W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 55 | min.2 - max.2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 1 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 1 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 3 | 3 | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 1 | 2(1) | - | - | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 15W | 100-240V | II | non-dimmable | IP20 | round | 40 | 2(1) | Add to pinlist |
