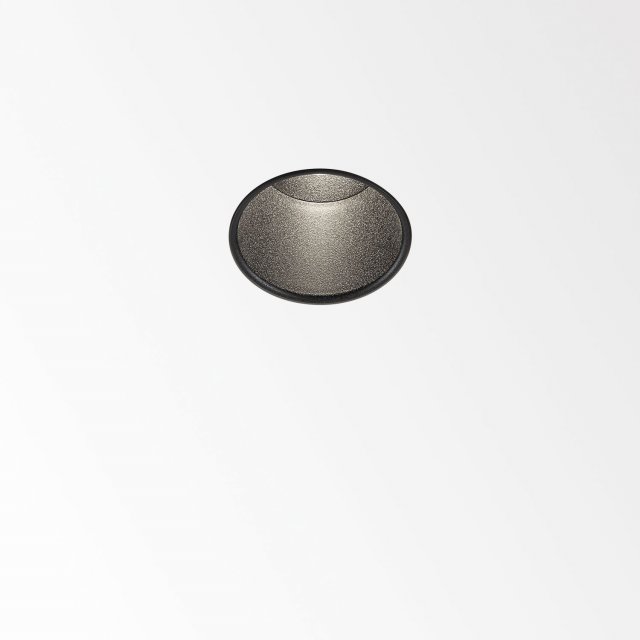

MINI DEEP RINGO TRIMLESS 82740 B
Black - 415 311 823 B
Beam angle
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 100 |
| IP | IP20 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
| Information | INCL.1 x REFLECTOR WFL-40°
EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | LED array 7W / CRI>80 / 2700K / 595lm |
| LED technics (light source) | 595lm // 7W // 85lm/W |
| LED technics (luminaire) | 327lm // 8W // 41lm/W |
Additional
| Requirements | MOUNTING KIT R60 TRIMLESS O.F.A.
SPY TUBE
TUBE SL
TUBE SBL
LED POWER SUPPLY 350mA-DC DIM |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 350mA-DC / 18W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 55 | min.2 - max.2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 3 | - | - | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 2 | - | - | - | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 15W | 100-240V | II | non-dimmable | IP20 | round | 40 | 2(1) | Add to pinlist |
