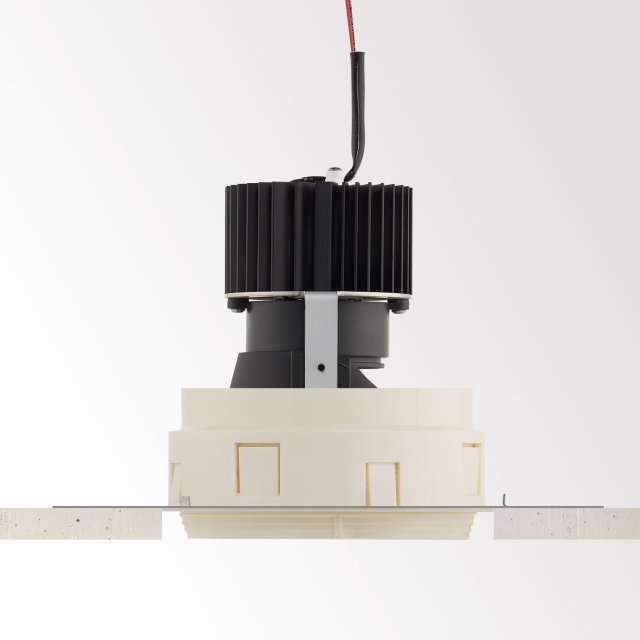

iMAX ADJUSTABLE TRIMLESS BR8 92729
403 01 811 922
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 160 |
| IP | IP20 |
| Weight (kg) | 0.4 |
| Adjustability | 0° to 15° swiveling, 355° rotatable |
| Information | INCL.1 x REFLECTOR FL-29°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | LED array 7,1-10,4W / CRI>90 (R9: 60) / 2700K / 779-1083lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1083lm // 10,4W // 105lm/W |
| LED technics (luminaire) | 622lm // 12W // 52lm/W |
Additional
| Remarks | Front cover to be ordered separately ! Look at our iMAX configurator |
| Requirements | MOUNTING KIT R102 TRIMLESS O.F.A.
MOUNTING KIT S102 TRIMLESS
MOUNTING KIT S102 TRIMLESS O.F.A.
iMAX COVER |
| Options | LED POWER SUPPLY 350 / 500mA-DC DIM |
| Accessories | iMAX ACCESSOIRES |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5 | - | III | DALI | IP20 | round | 30 | 1 | Add to pinlist |
| | LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5 | - | III | DALI | IP20 | round | 30 | 1 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 10W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 42 | 1 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 18W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 55 | 2->2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2(2) | 1(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 1(1) | 1(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 3(3) | 3(3) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 2(1) | 2(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 5(5) | 4(3) | - | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 15W | 100-240V | II | non-dimmable | IP20 | round | 40 | 2(1) | Add to pinlist |
Mounting kits
| Product name | Cutout shape | Cutout size | Thickness of mounting surface | ||
|---|---|---|---|---|---|
 | MOUNTING KIT S102 TRIMLESS | square | 125 x 125 | min.10 / max.15 | Add to pinlist |
 | MOUNTING KIT S102 TRIMLESS O.F.A. | rectangle | 230 x 160 | - | Add to pinlist |
