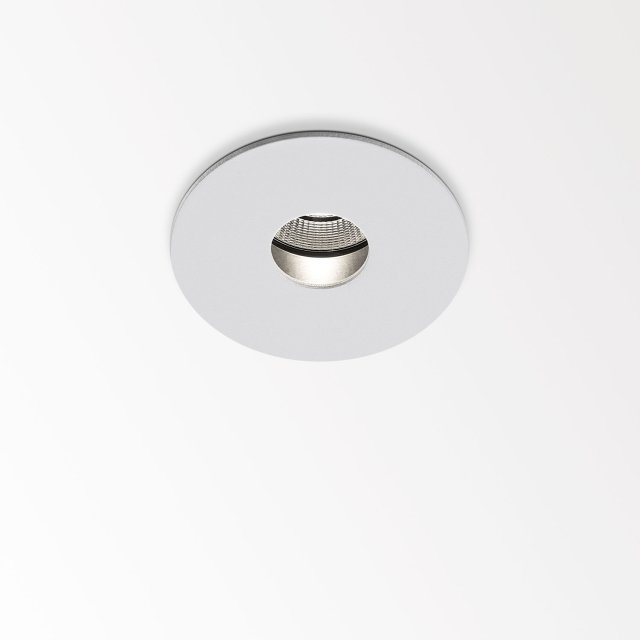

MINI DIRO R IP 83010 W

White - 415 143 831 W

CRI

Beam angle

CCT

Location	Indoor, Outdoor
CCT	3000K
Fixation	Ceiling
Installation	Recessed
Cutout shape	round
Cutout size (mm)	67
Min. recessed depth (mm)	70
Thickness of mounting surface (mm)	min.5
IP	IP44
IK	IK03
Weight (kg)	0.4
Adjustability	non adjustable
Information	INCL.1 x LENS FL-20° EXCL.LED POWER SUPPLY 350-500mA-DC

Class	III
Dimming type	depending on power supply

Options

LED POWER SUPPLY 350 / 500mA-DC DIM

Technical data was measured in optimum conditions.

Following downloads are available:

Please find an overview of the suitable ceiling types for this specific product.

Ceiling Type

Mounting kit

system ceiling

plasterboard

stucanet

wood

concrete

concrete + plaster

lintel + plaster

hollow-core slab

hollow-core slab + plaster

Use the information listed below to complete your product

Product name	Voltage	Class	Dimming type	IP	Cutout shape	Cutout size	max. devices / supply
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5	-	III	DALI	IP20	round	30	3	Add to pinlist
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5	-	III	DALI	IP20	round	30	3	Add to pinlist
LED POWER SUPPLY 350mA-DC / 10W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	42	2->2	Add to pinlist
LED POWER SUPPLY 350mA-DC / 18W DIM8	220-240V	II	mains (phase cut-off)	IP20	round	55	3->3	Add to pinlist
LED POWER SUPPLY MULTI-POWER DIM7	110-240V	II	1-10V or push button	IP20	round	55	3(3) \| 3(2)	Add to pinlist
LED POWER SUPPLY MULTI-POWER MINI DIM5	110-240V	II	DALI	IP20	round	55	3(3) \| 3(2)	Add to pinlist
LED POWER SUPPLY MULTI-POWER DIM9	110-240V	II	1-10V or DALI or push button	IP20	round	82	5(5) \| 5(5)	Add to pinlist
LED POWER SUPPLY MULTI-POWER DIM5	110-240V	II	DALI	IP20	round	72	3(3) \| 3(2)	Add to pinlist
LED POWER SUPPLY MULTI-POWER HV DIM9	110-240V	II	1-10V or DALI or push button	IP20	round	84	8(8) \| 7(6)	Add to pinlist
LED POWER SUPPLY 350mA-DC / 15W	100-240V	II	non-dimmable	IP20	round	40	3(2)	Add to pinlist
