New

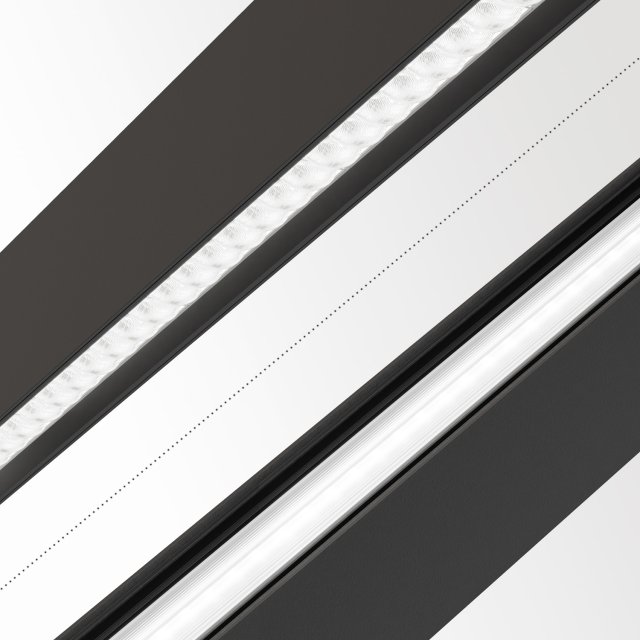

OML50 - PRISMATIC LENS DU HO 1640mm 940 DIM5 B
Black - 31635 9405 B
CRI
CCT
General
| Location | Indoor |
| CCT | 4000K |
| IP | IP20 |
| Weight (kg) | 2.4 |
| Information | INCL.DIMMABLE LED POWER SUPPLY
(DALI-2 standard)
CABLING 1 CIRCUIT |
Electrical
| Voltage | 220-240V / 0|50-60Hz |
| Class | I |
| Dimming type | DALI |
| Energy class | D |
| Certificates | EPD, RCM |
Lightsource
| Light source | LED |
| LED information | DOWN: LED cluster 38,8W / CRI>90 (R9: 50) / 4000K / 6062lm
UP: LED cluster 30,2W / CRI>90 (R9: 50) / 4000K / 4552lm |
| TM-30 Values | Rf: 90 / Rg: 101 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L80 > 60000 |
| LED technics (light source) | DOWN: 6062lm // 38,8W // 160lm/W
UP: 4552lm // 30,2W // 151lm/W |
| LED technics (luminaire) | DOWN: 4880lm // 44,6W // 109lm/W
UP: 3684lm // 34,7W // 106lm/W |
Additional
| Options | WIRELESS CONTROL DIM5 |
Technical data was measured in optimum conditions.
