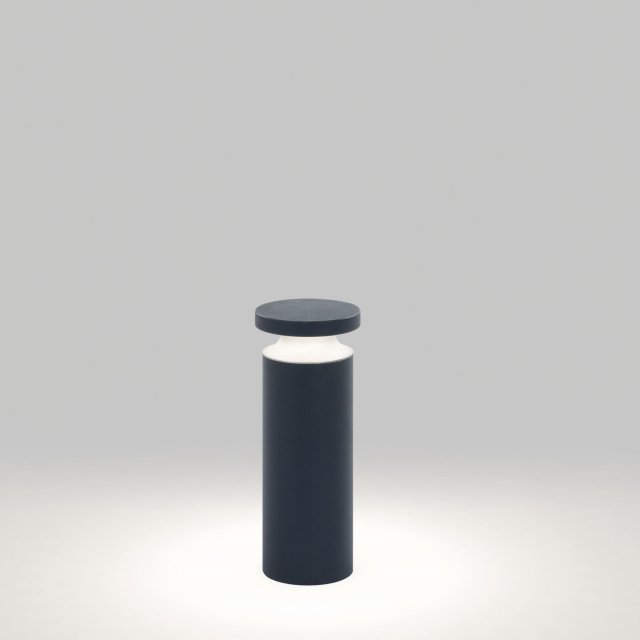

BAZIL 123 N-GOLD
Anthracite-Gold - 222 123 12 N-GOLD
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Surface mounted |
| IP | IP55 |
| IK | IK08 |
| Weight (kg) | 3.5 |
| Adjustability | non adjustable |
| Information | INCL.LED POWER SUPPLY 700mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | non-dimmable |
| Energy class | E |
| Certificates | CB, ENEC, RCM |
Lightsource
| Light source | LED |
| LED information | LED cluster 14W / CRI>80 (R9: 50) / 3000K / 1810lm |
| SDCM | SDCM5 |
| LM80 | L80 > 60000 |
| LED technics (light source) | 1810lm // 14W // 129lm/W |
| LED technics (luminaire) | 1515lm // 16,1W // 94lm/W |
Additional
| Options | PIN 3
CBOX
IP68 CONNECTION KIT
IP68 CONNECTOR 3P |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional

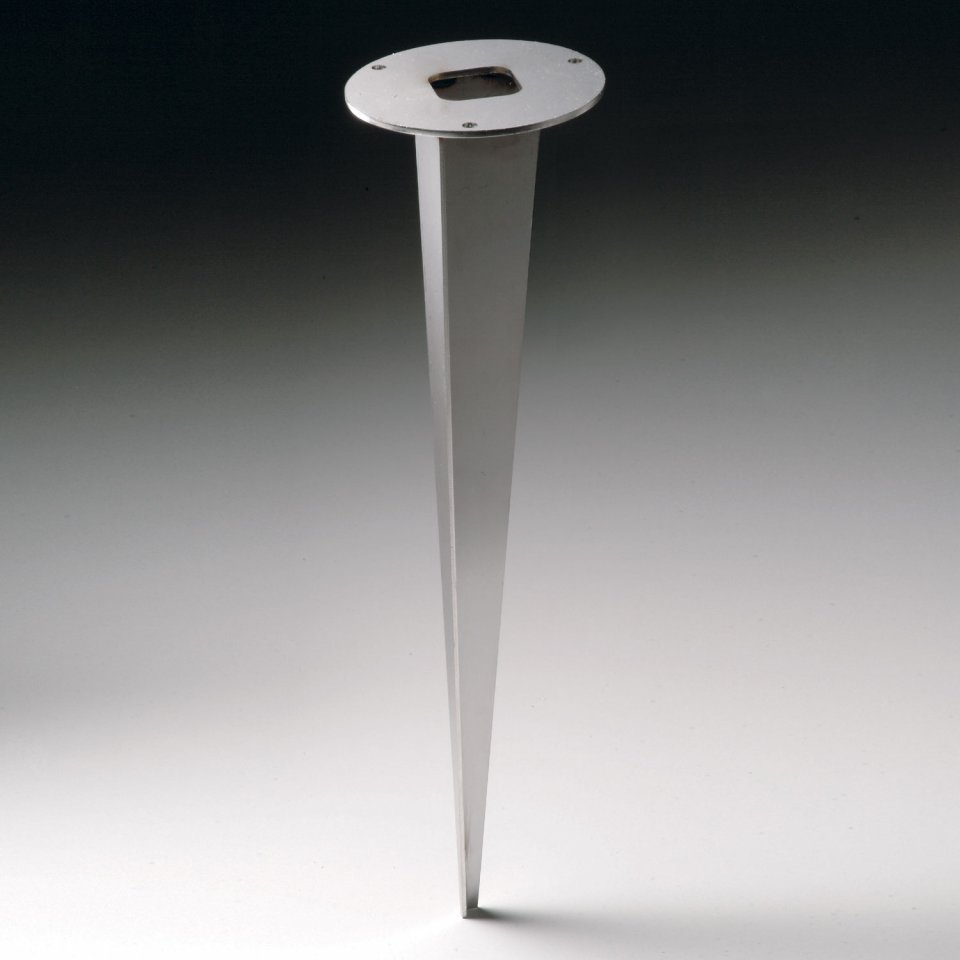

Pins and plates for bollards
Waterproof connection parts
| Product name | Information | ||
|---|---|---|---|
 | CBOX | INCL.2 x PG13,5 / 1 x PG11 | Add to pinlist |
 | IP68 CONNECTION KIT | CABLE Ø 7,5-10 mm MAX.3 x 4mm² 4A 250V-AC | Add to pinlist |
 | IP68 CONNECTOR 3P | CABLE Ø 7,5-12 mm MAX.3 x 1,5mm² 4A 250V-AC | Add to pinlist |
