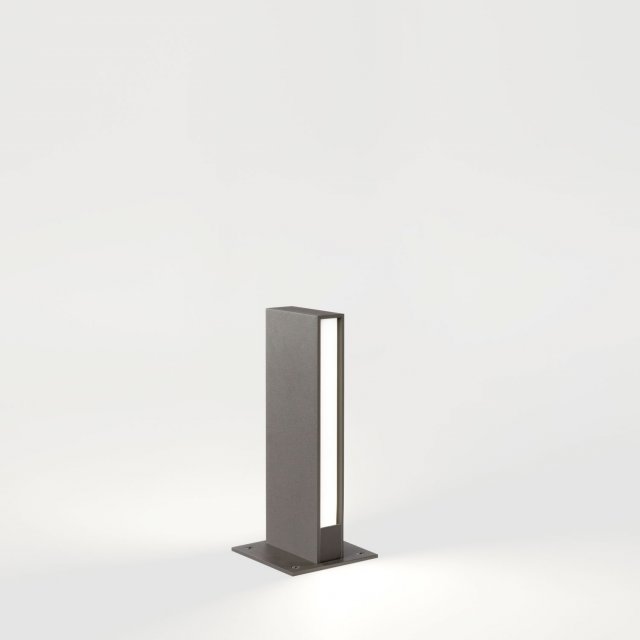

BOTANIC 24 WW A
Alu Grey - 317 12 22 A
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Surface mounted |
| IP | IP55 |
| IK | IK03 |
| Weight (kg) | 1 |
| Information | INCL.2 x PC SBL
INCL.LED POWER SUPPLY 24V-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | II |
| Dimming type | non-dimmable |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | 2 x (LED STRIP 3000K / 1,25W) |
| LED technics (light source) | 220lm // 2W // 110lm/W |
| LED technics (luminaire) | lm // 2,9W // lm/W |
Additional
| Options | PIN 14
CBOX
IP68 CONNECTION KIT
IP68 CONNECTOR 3P |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Waterproof connection parts
| Product name | Information | ||
|---|---|---|---|
 | CBOX | INCL.2 x PG13,5 / 1 x PG11 | Add to pinlist |
 | IP68 CONNECTION KIT | CABLE Ø 7,5-10 mm MAX.3 x 4mm² 4A 250V-AC | Add to pinlist |
 | IP68 CONNECTOR 3P | CABLE Ø 7,5-12 mm MAX.3 x 1,5mm² 4A 250V-AC | Add to pinlist |
