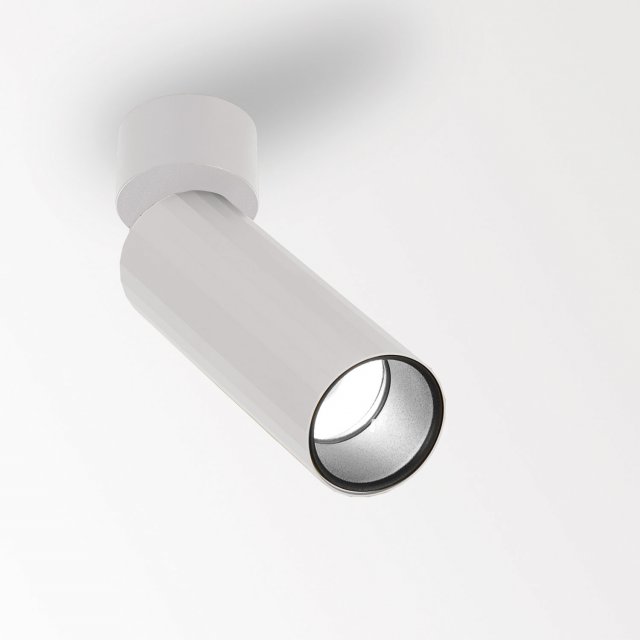

HEDRA L ON 92733 W-W
Surface mounted adjustable spotlight. Beautiful faceted cylinder in 2 lengths. Optional mud kit or coverplate. Remote driver. Accepts 1 accessory.
White-White - 473 232 811 922 W-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 0.4 |
| Adjustability | 0° to 90° swiveling, 355° rotatable |
| Information | REFLECTOR FL-33°
EXCL.LED POWER SUPPLY 350-700mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 5,8-12,4W / CRI>90 (R9: 60) / 2700K / 753-1403lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1403lm // 12,4W // 113lm/W |
| LED technics (luminaire) | 704lm // 14,3W // 49lm/W |
Additional
| Requirements | VIZIR TUBE
LED POWER SUPPLY 350 / 500 / 700mA-DC DIM |
| Options | COVERSET R 90-100 |
| Accessories | VIZIR HONEYCOMB
VIZIR SOFTENING LENS |
Technical data was measured in optimum conditions.
