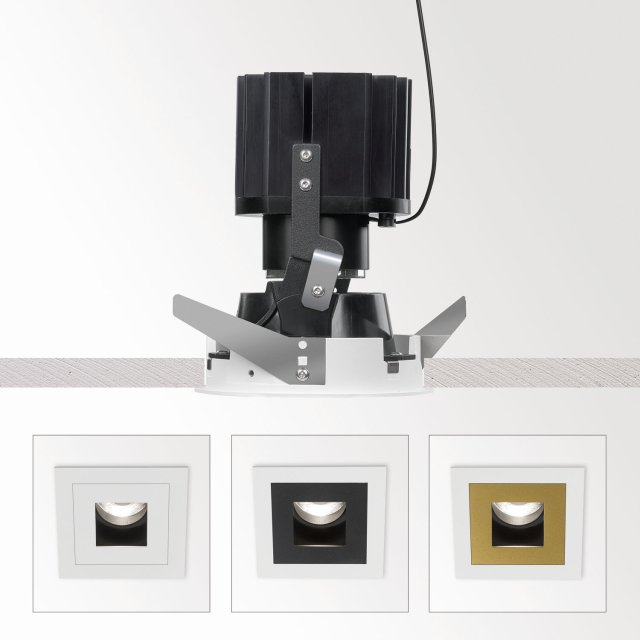

iMAX II SQUARE ADJUSTABLE HO 9-SOFT W
White - 24223 9020 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-1800K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 98 |
| Min. recessed depth (mm) | 155 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 |
| Weight (kg) | 0.4 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | REFLECTOR FL-40°
EXCL.DIMMABLE LED POWER SUPPLY 800mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 15,7W / CRI>90 / 2700K-1800K / 1257lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LED technics (light source) | 1257lm // 15,7W // 80lm/W |
| LED technics (luminaire) | 476lm // 18,1W // 26lm/W |
Additional
| Requirements | DIMMABLE LED POWER SUPPLY 800mA-DC
iMAX II TUBE SQUARE |
| Options | MOUNTING KIT FLUSH iMAX II SQUARE |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
