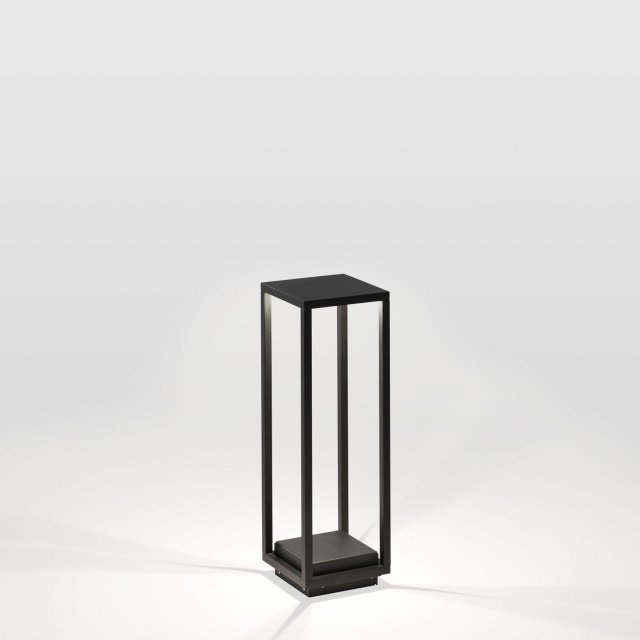

MONTUR L P 45 LED A

MONTUR RECTANGLE POLE

Alu Grey - 232 659 83 A

CRI

CCT

Interesting projects

General

Location	Outdoor
CCT	3000K
Fixation	Floor
Installation	Surface mounted
IP	IP54
IK	IK03
Weight (kg)	1.6
Adjustability	non adjustable
Information	INCL.DIMMABLE LED POWER SUPPLY 500mA-DC

Electrical

Voltage	220-240V / 50-60Hz
Class	II
Dimming type	mains (phase cut-off)
Energy class	F
Certificates	CB, ENEC

Lightsource

Light source	LED
LED information	LED cluster 13,3W / CRI>80 / 3000K / 1250lm
LED technics (light source)	1250lm // 13,3W // 94lm/W
LED technics (luminaire)	771lm // 15,3W // 50lm/W

Additional

Options

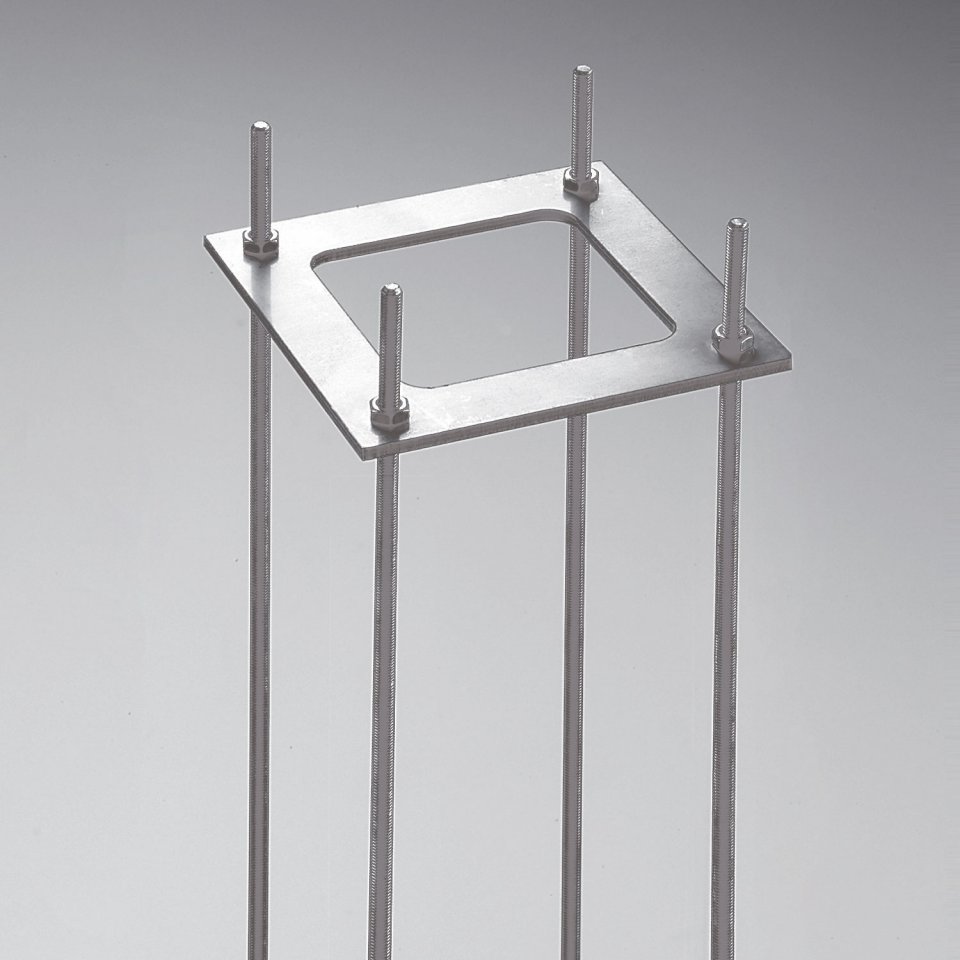

PLATE 3
CBOX
IP68 CONNECTION KIT
IP68 CONNECTOR 3P

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Finish your specifications

Use the information listed below to complete your product

	Product name	Information
	CBOX	INCL.2 x PG13,5 / 1 x PG11	Add to pinlist
	IP68 CONNECTION KIT	CABLE Ø 7,5-10 mm MAX.3 x 4mm² 4A 250V-AC	Add to pinlist
	IP68 CONNECTOR 3P	CABLE Ø 7,5-12 mm MAX.3 x 1,5mm² 4A 250V-AC	Add to pinlist
