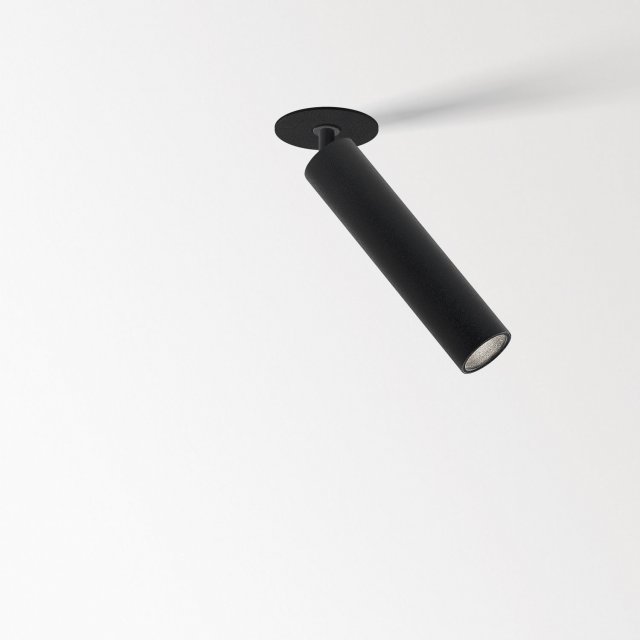

SPY 27 L CLIP 93030 B-B
Black-Black - 24133 9320 B-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling, Low voltage systems |
| Installation | Semi-recessed, Low voltage system mounted |
| Cutout shape | round |
| Cutout size (mm) | 43 |
| Min. recessed depth (mm) | 40 |
| IP | IP20 |
| Weight (kg) | 0.3 |
| Adjustability | 0° to 85° swiveling, 355° rotatable |
| Information | REFLECTOR FL-30°
EXCL.LED POWER SUPPLY 350mA-DC
SPY 27 L TUBE included (B for all versions W for FW version) |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | D |
| Certificates | CB, ENEC, LCA |
Lightsource
| Light source | LED |
| LED information | LED array 5,8W / CRI>90 (R9: 52) / 3000K / 787lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 787lm // 5,8W // 135lm/W |
| LED technics (luminaire) | 288lm // 6,7W // 43lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
