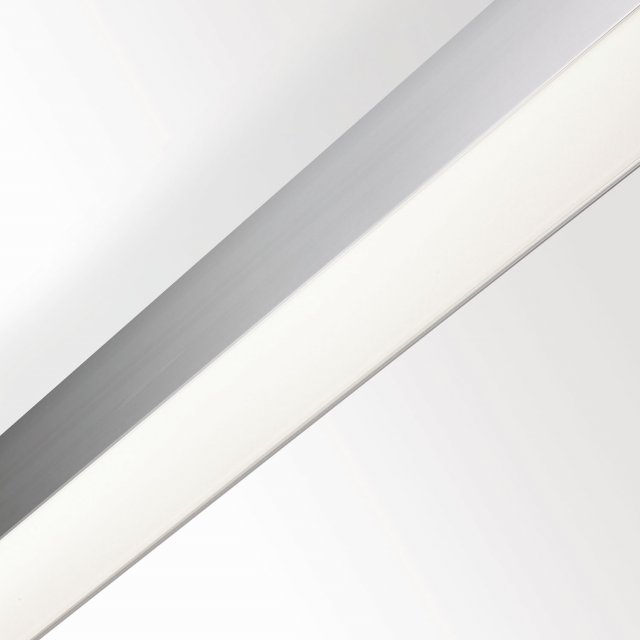

SRL - LED ARRAY 1 x 24W DOWN DIM2 EMERGENCY UNIT 1H

389 610 24 ED2 EM1

CRI

CCT

General

Location	Indoor
CCT	3000K
IP	IP20
Weight (kg)	1.638
Information	EXCL.SRL - PC PROFILE CLUSTER: 3395lm/m CABLING 1 CIRCUIT INCL.EMERGENCY UNIT 1H / BLF 14%

Electrical

Voltage	220-240V / 50-60Hz
Class	I
Dimming type	DALI or push button
Energy class	D
Certificates	CB, ENEC, RCM

Lightsource

Light source	LED
LED information	+ PC SBL: LED cluster 24,5W / CRI>90 (R9: 50) / 3000K / 3802lm OR + PC PRISMATIC: LED cluster 24,5W / CRI>90 (R9: 50) / 3000K / 3802lm
TM-30 Values	Rf: 92 / Rg: 100 OR + PC PRISMATIC: rf: 92 / Rg: 100
SDCM	SDCM3
Riskgroup	RG1
LM80	L80 > 60000
LED technics (light source)	+ PC SBL: 3802lm // 24,5W // 155lm/W OR + PC PRISMATIC: 3802lm // 24,5W // 155lm/W
LED technics (luminaire)	+ PC SBL: 2957lm // 28,2W // 105lm/W OR + PC PRISMATIC: 2853lm // 28,2W // 101lm/W

Additional

Requirements	SRL - PC SBL PROFILE SRL - PC PRISMATIC PROFILE
Options	WIRELESS CONTROL DIM5

Technical data was measured in optimum conditions.
