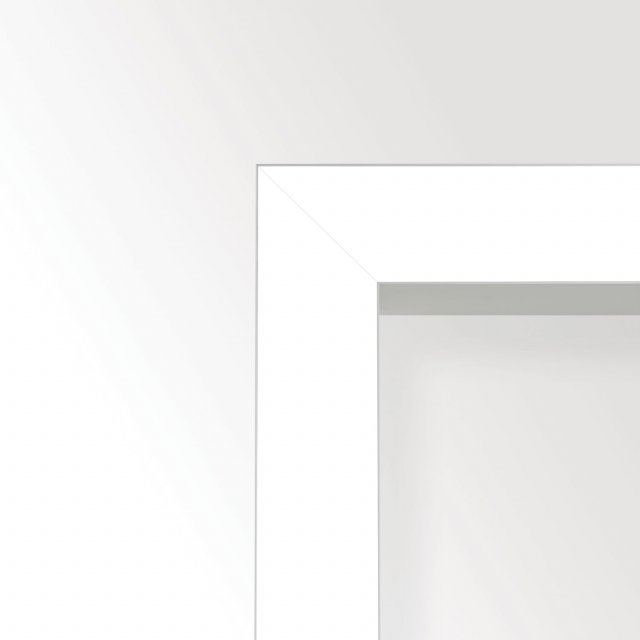

SRL - LED ARRAY 2 x 12W CORNER DOWN DIM2
389 610 212 ED2
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| IP | IP20 |
| Weight (kg) | 1.308 |
| Information | EXCL.SRL - PC PROFILE
CLUSTER: 3395lm/m
CABLING 1 CIRCUIT |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | DALI or push button |
| Energy class | D |
| Certificates | CB, ENEC, RCM |
Lightsource
| Light source | LED |
| LED information | + PC SBL: 2 x (LED cluster 12,2W / CRI>90 (R9: 50) / 3000K / 1901lm)
OR
+ PC PRISMATIC: 2 x (LED cluster 12,2W / CRI>90 (R9: 50) / 3000K / 1901lm) |
| TM-30 Values | Rf: 92 / Rg: 100
OR
+ PC PRISMATIC: rf: 92 / Rg: 100 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L80 > 60000 |
| LED technics (light source) | + PC SBL: 3802lm // 24,4W // 155lm/W
OR
+ PC PRISMATIC: 3802lm // 24,4W // 155lm/W |
| LED technics (luminaire) | + PC SBL: 2957lm // 28,1W // 105lm/W
OR
+ PC PRISMATIC: 2853lm // 28,1W // 102lm/W |
Additional
| Requirements | SRL - PC SBL PROFILE
SRL - PC PRISMATIC PROFILE |
| Options | WIRELESS CONTROL DIM5 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Miscellaneous control equipment
| Product name | Voltage | Class | Dimming type | ||
|---|---|---|---|---|---|
 | WIRELESS CONTROL DIM5 | 220-240V | II | WDL = wireless dimmable | Add to pinlist |
