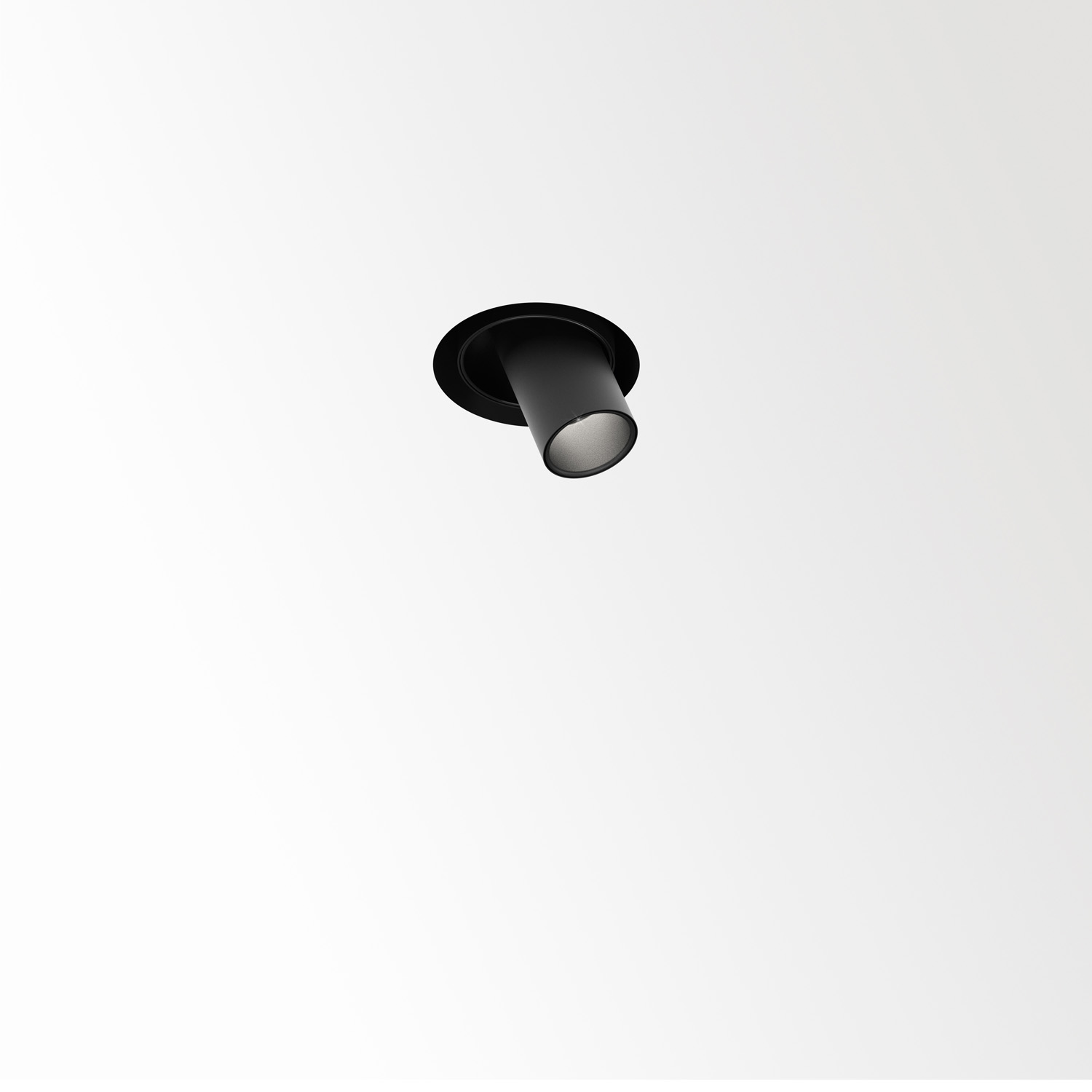

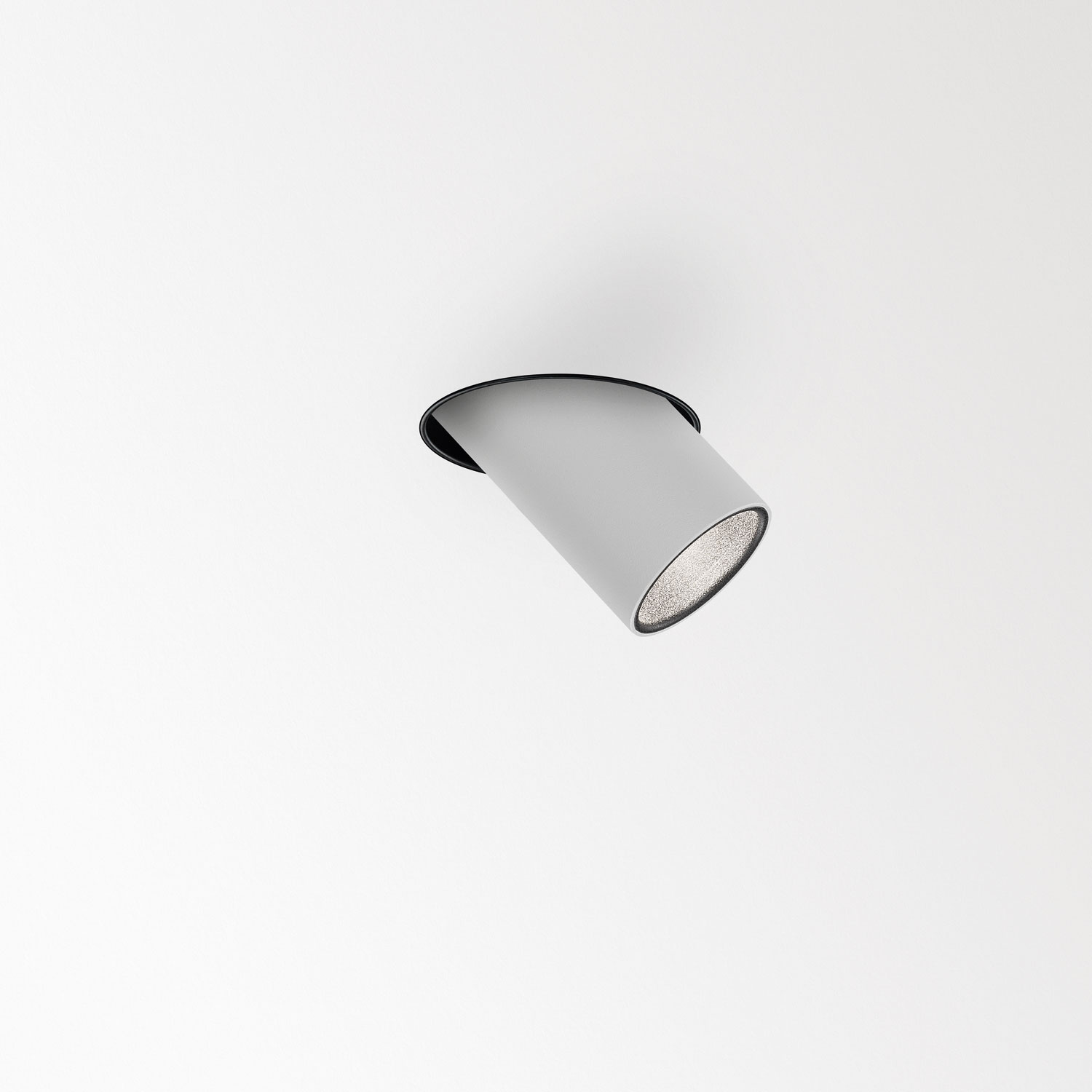

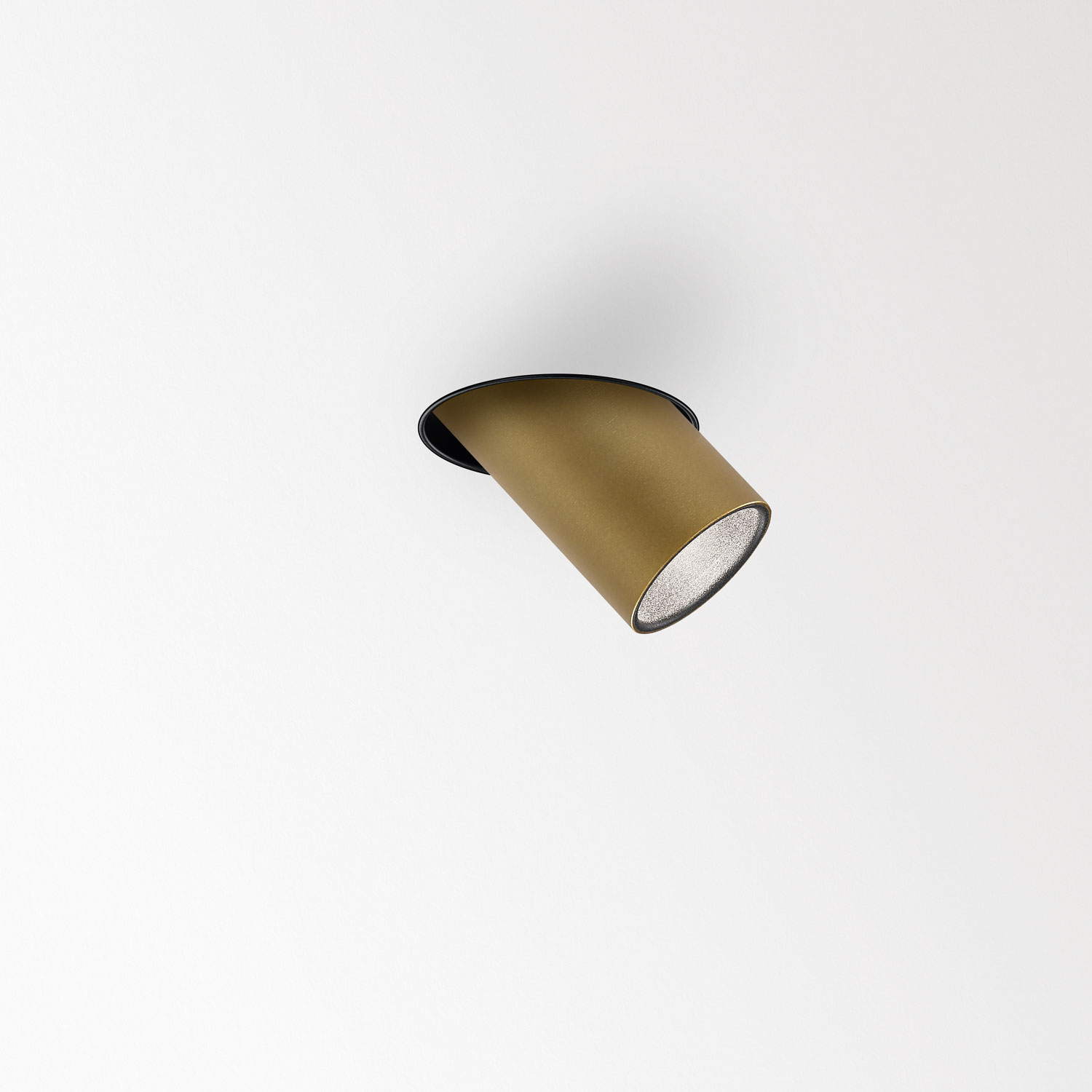

SPY 52 TRIMLESS 92745
Tilgængelige farver
-
SORT
19811 9230 B -
HVID
19811 9230 W -
GULDFARVET
19811 9230 GC -
FLEMISH GOLD
19811 9230 FG -

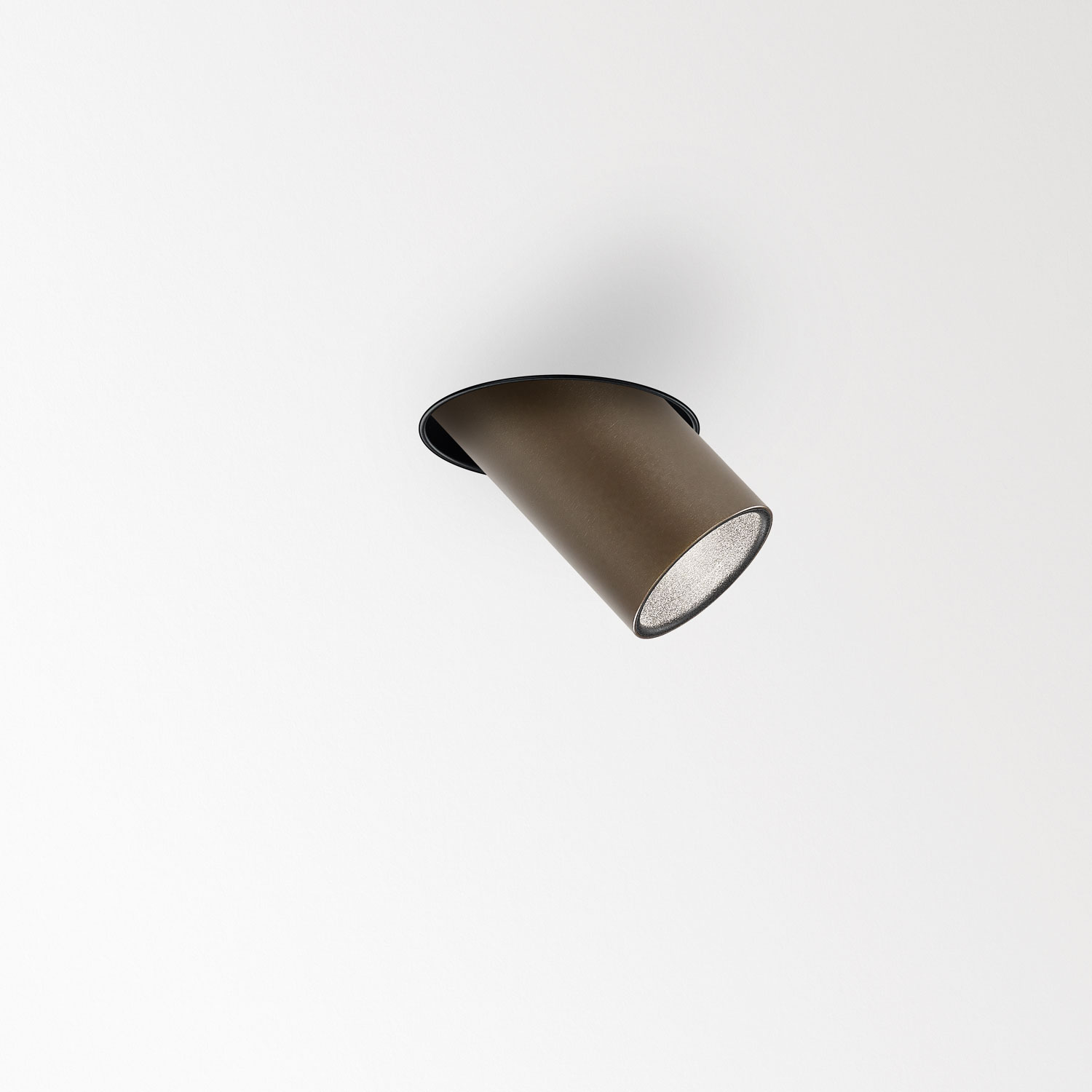

FLEMISH BRONZE
19811 9230 FBR
Egenskaber
| Placering | INDENDØRS |
|---|---|
| Fiksering | LOFT INDBYGGET |
| Udskæringsform/størrelse |  Ø KIT mm |
| Forsænket dybde | 80 mm |
| Monteringsfladens tykkelse | ikke relevant |
| Information |
ADJUSTABLE 0-45°/355° 1 x LED 5,8-12,4W / CRI>90 / 2700K / 753-1403lm REFLECTOR WFL-45° EXCL.LED POWER SUPPLY 350-700mA-DC Optional REFLECTOR 20° available Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Farvetemperatur | Halogen hvid (+2700K) |
| LED Technics (lyskilde) | 1403 lm // 12 W // 113 lm/W |
| Technics LED (armatur) | 898 lm // 14 W // 63 lm/W |
| Elektrisk | |
| Klasse | Klasse III |
| Nettovægt | 0.4 Kg |
| IP | IP20 |
| Mindste afstand | ikke relevant |
| Bemærkninger | ikke relevant |
| Energy Class | E |
| Tilbehør |
HONEYCOMB 42 SPREAD LENS 42 LINEAR SPREAD LENS 42 SOFTENING LENS 42 GLASS SBL 42 |
| Krav |
SPY 52 TUBE MOUNTING KIT SPY 39/52 TRIMLESS O.F.A. MOUNTING KIT AIR 103 LED POWER SUPPLY 350 / 500 / 700mA-DC DIM |
Beskrivelsesikoner:
-
CE-mærkningen på mange produkter viser, at produkterne er i overensstemmelse med de europæiske bestemmelser.
-
Et apparat i klasse III er designet til at blive leveret fra en separat / SELV-strømkilde (separat lavspænding). Spændingen fra en SELV-forsyning er lav nok, til at en person under normale forhold sikkert kan komme i kontakt med den.
-
LOFT indbygget
Finish your specification
Optioner
29810 0100
MOUNTING KIT SIDE AIR ONLY 1
29810 0200
MOUNTING KIT TOP AIR ONLY 1
19810 0180
SPY 52 REFLECTOR 20°
19810 0190
SPY 52 REFLECTOR 45°
Tilbehør
19810 0050
GLASS SBL 42
19810 0060
HONEYCOMB 42 DOUBLE USE
19810 0010
HONEYCOMB 42 SINGLE USE
19810 0020
LINEAR SPREAD LENS 42
19810 0040
SOFTENING LENS 42
19810 0030
SPREAD LENS 42
Krav
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
300 48 700 ED1
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM1
300 48 700 ED5
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM5
300 48 700 MDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W MDL
300 48 700 WDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W WDL
21012 0308
LED POWER SUPPLY 350mA / 7,35W DIM8
21012 0318
LED POWER SUPPLY 500mA / 10W DIM8
21012 0328
LED POWER SUPPLY 700mA / 15W DIM8
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
15212 2030
MOUNTING KIT SPY 39/52 TRIMLESS O.F.A.
15212 0080
MOUNTING KIT SPY 39/52 TRIMLESS CSC
15212 0160
MOUNTING KIT SPY 39/52 TRIMLESS WSC
29810 0030
MOUNTING KIT SIDE AIR 103
29810 0230
MOUNTING KIT TOP AIR 103
29810 0070
MOUNTING KIT NO AIR 103
19810 0100
SPY 52 TUBE
Kompatibilitet loft
Ventilation in plasterboard ceiling
Only with
MOUNTING KIT SIDE AIR 103MOUNTING KIT NO AIR 103
MOUNTING KIT SIDE AIR ONLY 1
Ventilation in concrete + plaster ceiling
Only with
MOUNTING KIT TOP AIR ONLY 1MOUNTING KIT NO AIR 103
MOUNTING KIT TOP AIR 103
