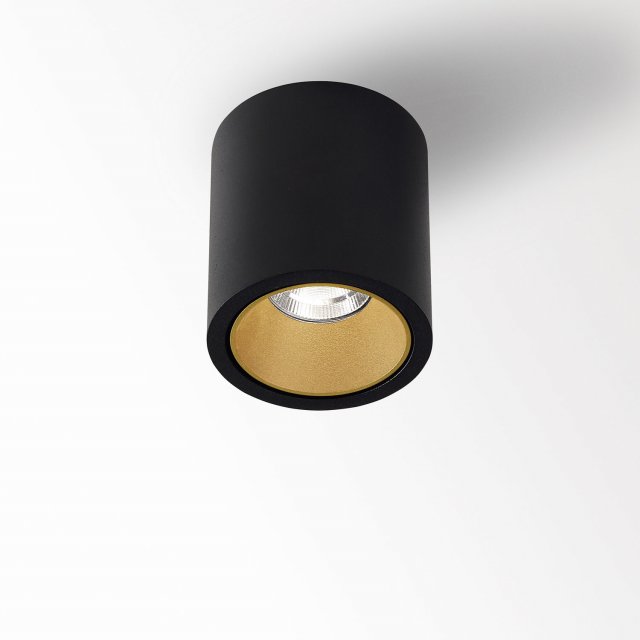

BOXY R 92733 W-W

BOXY R 92733 DIM8 W-W

White-White - 251 70 811 922 ED8 W-W
CRI
Beam angle
CCT

General

Location
Indoor, Outdoor
CCT
2700K
Fixation
Ceiling
Installation
Surface mounted
IP
IP53
IK
IK03
Weight (kg)
0.6
Adjustability
non adjustable
Information
REFLECTOR FL-33° INCL.DIMMABLE LED POWER SUPPLY 500mA-DC

Electrical

Voltage
220-240V / 50-60Hz
Class
II
Dimming type
mains (phase cut-off)
Energy class
E
Certificates
CB, EAC

Lightsource

Light source
LED
LED information
LED array 8,6W / CRI>90 (R9: 60) / 2700K / 1041lm
TM-30 Values
Rf: 89 / Rg: 100
SDCM
SDCM1
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1041lm // 8,6W // 121lm/W
LED technics (luminaire)
815lm // 10W // 82lm/W

Additional

Accessories
BOXY HONEYCOMB BOXY SOFTENING LENS BOXY GLASS SBL
Technical data was measured in optimum conditions.
