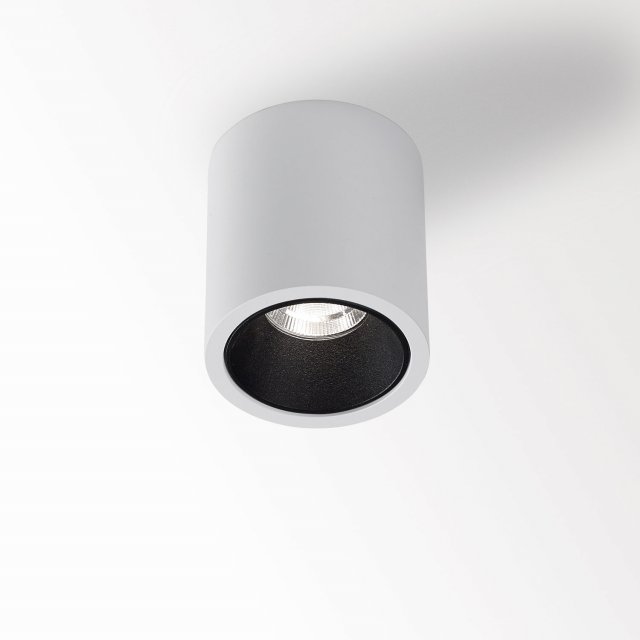

BOXY R 93033 DIM8 W-W
White-White - 251 70 811 932 ED8 W-W
CRI
Beam angle
CCT
General
| Location | Indoor, Outdoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP53 |
| IK | IK03 |
| Weight (kg) | 0.6 |
| Adjustability | non adjustable |
| Information | REFLECTOR FL-33°
INCL.DIMMABLE LED POWER SUPPLY 500mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | II |
| Dimming type | mains (phase cut-off) |
| Energy class | E |
| Certificates | CB, EAC |
Lightsource
| Light source | LED |
| LED information | LED array 8,6W / CRI>90 (R9: 52) / 3000K / 1089lm |
| TM-30 Values | Rf: 90 / Rg: 99 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1089lm // 8,6W // 127lm/W |
| LED technics (luminaire) | 852lm // 10W // 86lm/W |
Additional
| Accessories | BOXY HONEYCOMB
BOXY SOFTENING LENS
BOXY GLASS SBL |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Control gear, ballast and transformers
| Product name | Voltage | Class | Dimming type | ||
|---|---|---|---|---|---|
 | WIRELESS CONTROL DIM8 | 100-240V | II | WDL = wireless dimmable | Add to pinlist |
