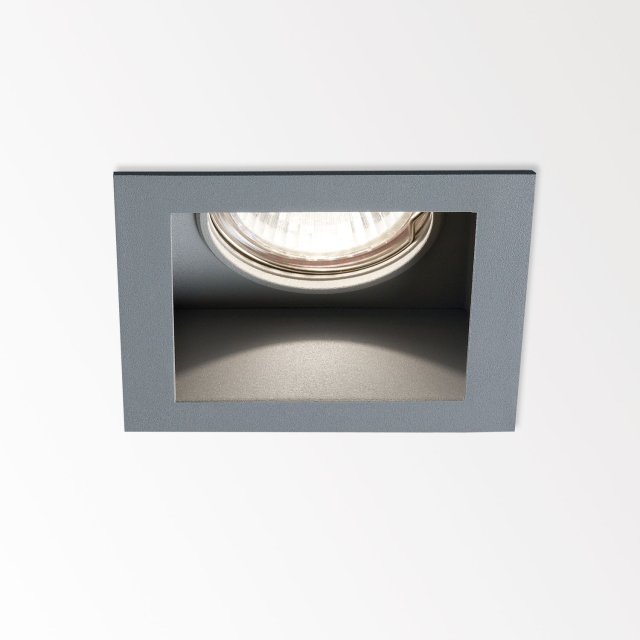

CARREE II X S1 A
CARREE WITH TRIM FOR OUTDOOR USE
Alu Grey - 202 20 41 A
General
| Location | Outdoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 75 x 75 |
| Min. recessed depth (mm) | 90 |
| Thickness of mounting surface (mm) | max.35 |
| IP | IP23/20 |
| IK | IK03 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
Electrical
| Voltage | 12V |
| Electrical | GX5.3 / 12V / EXCL.TRANSFO
1 x QR-C51 max.50W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 0,5 |
Additional
| Options | TRANSFO |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
