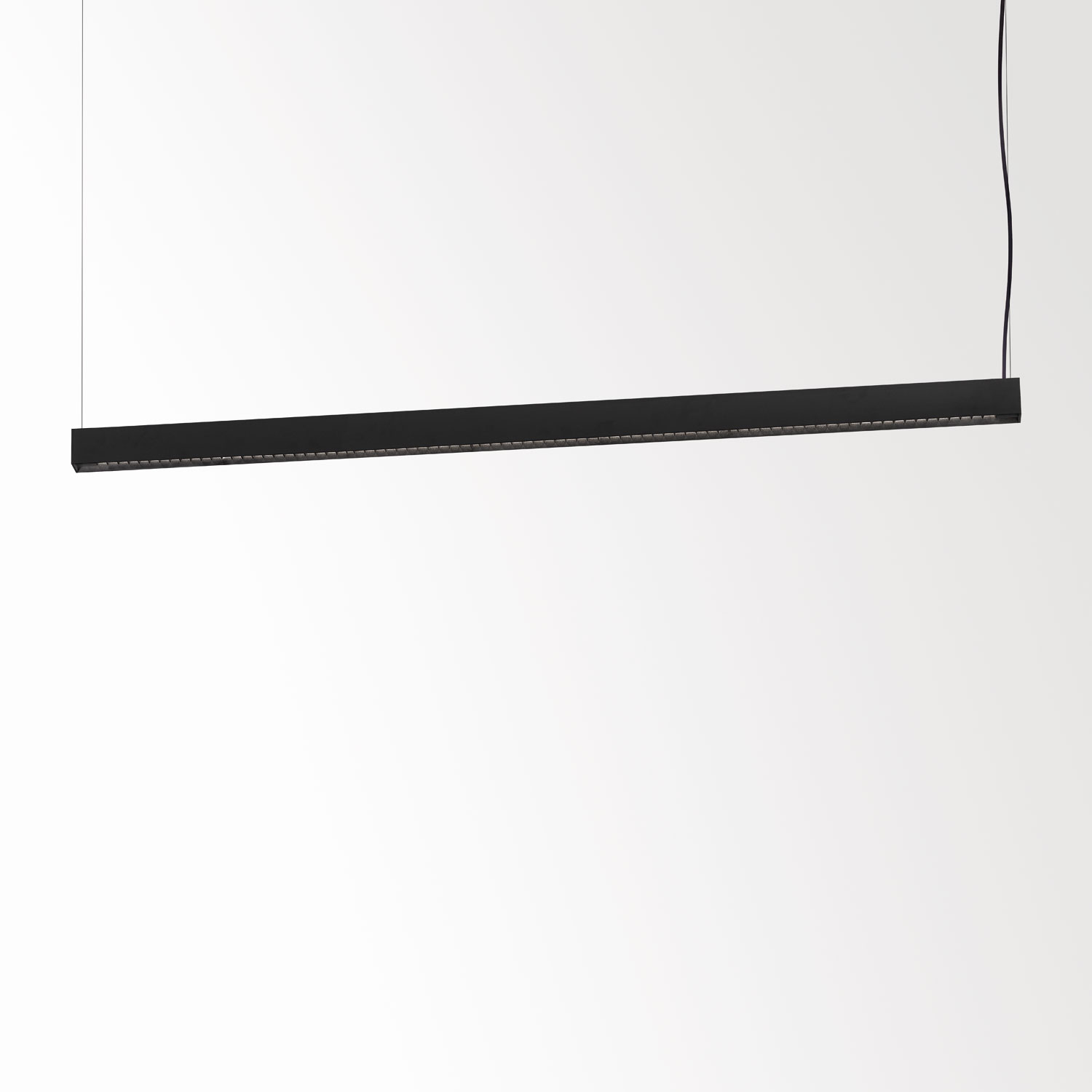

CONFORM P20 DOWN-UP 954067 DIM4

Available colors

  • BLACK-BLACK

    26512 7424 B-B
    Pin this

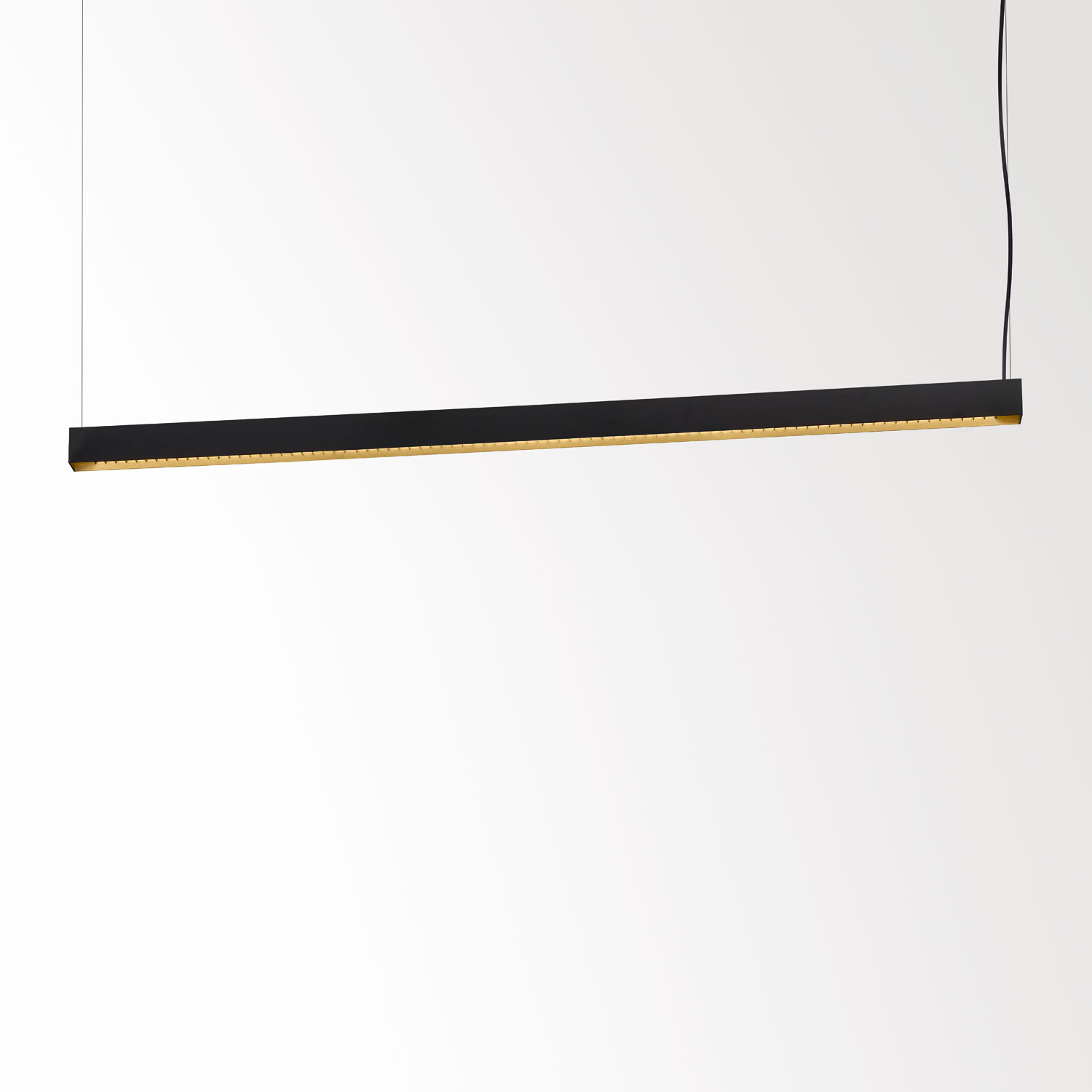

  • BLACK-GOLD MATT

    26512 7424 B-MMAT
    Pin this

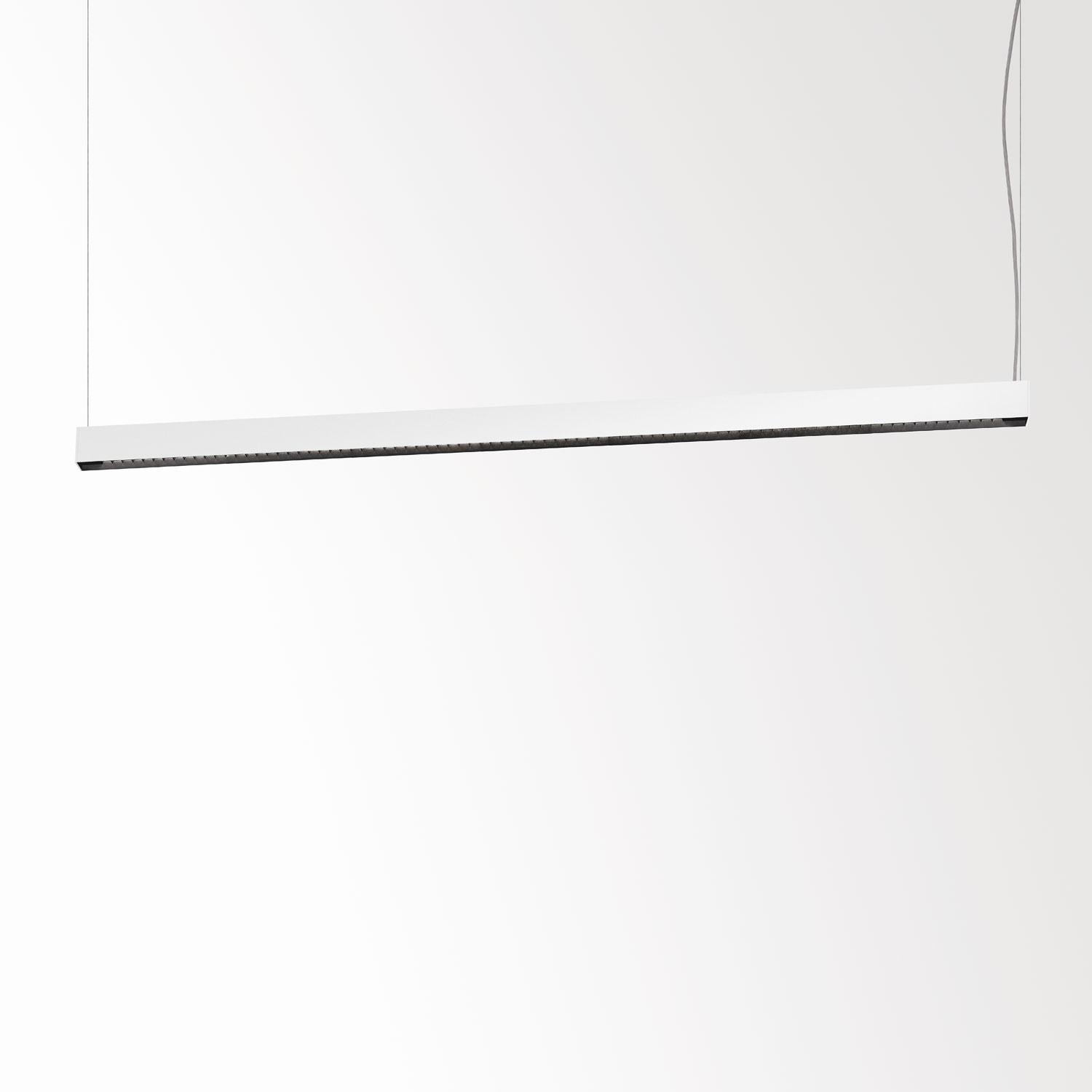

  • WHITE-BLACK

    26512 7424 W-B
    Pin this

Characteristics

Location INTERIOR
Fixation Ceiling Suspended
Recessed depth n.a.
Thickness of mounting surface n.a.

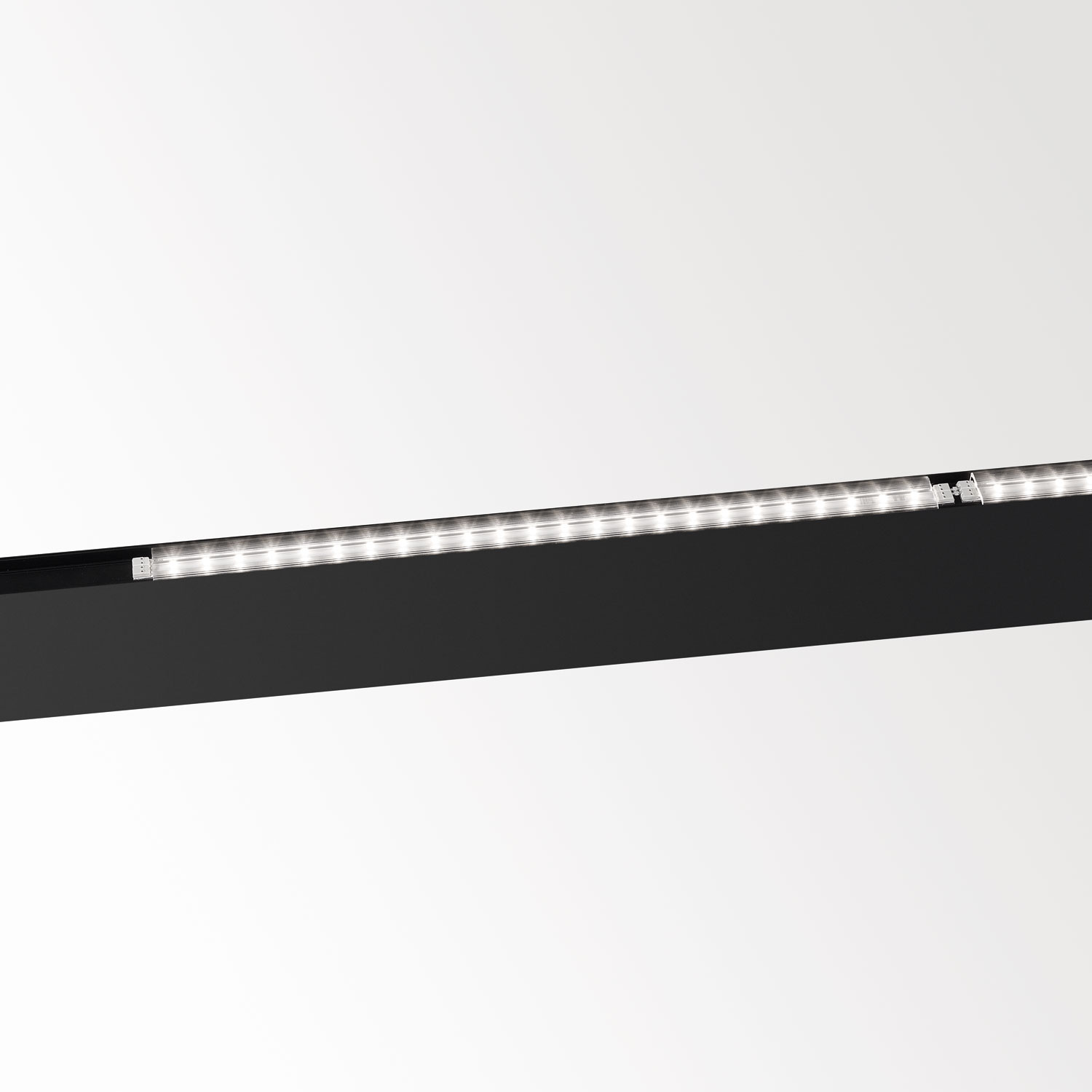

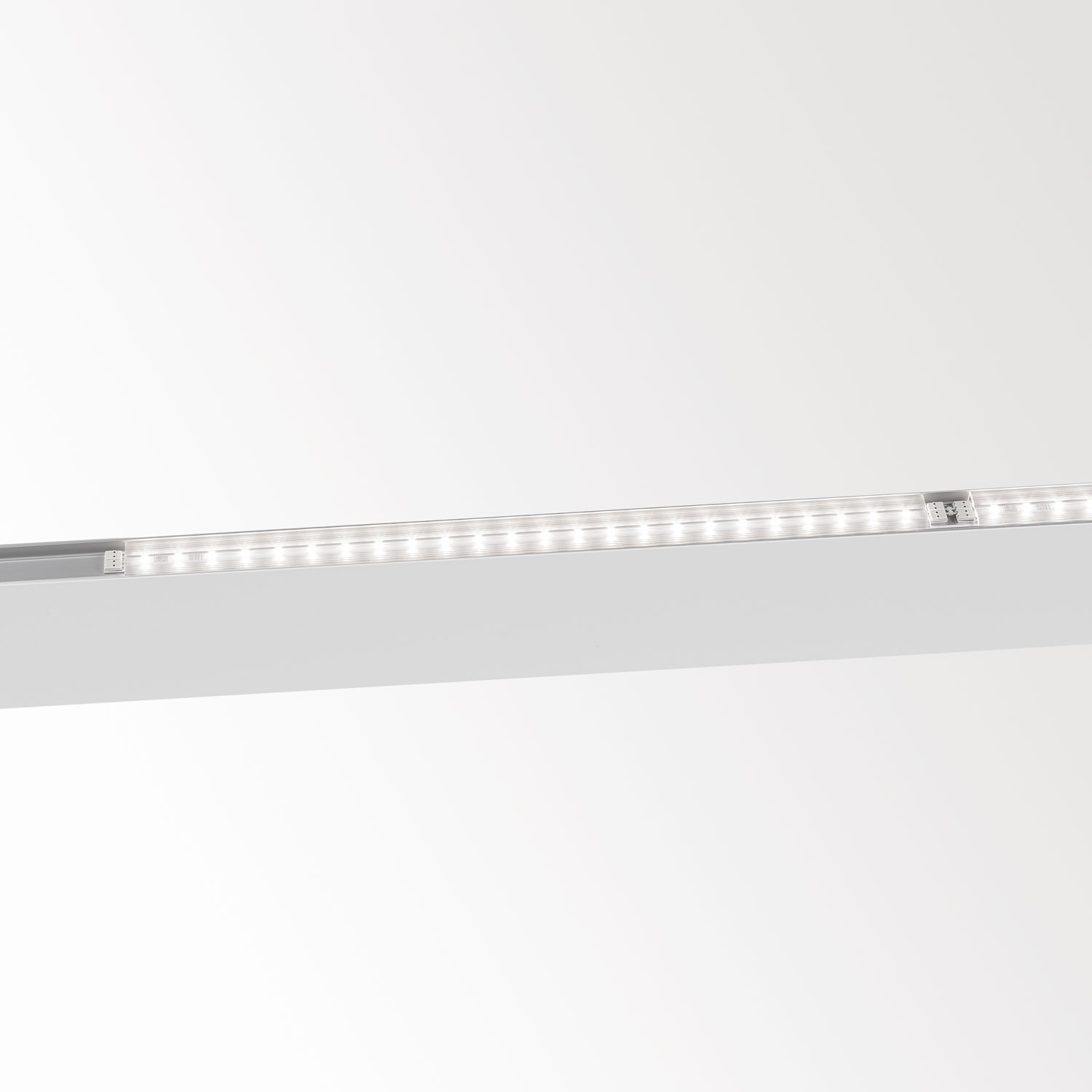

Information LED CLUSTER DOWN 31W / CRI>95 / 4000K / 3274lm
LED CLUSTER UP 24W / CRI>95 / 4000K / 2071lm

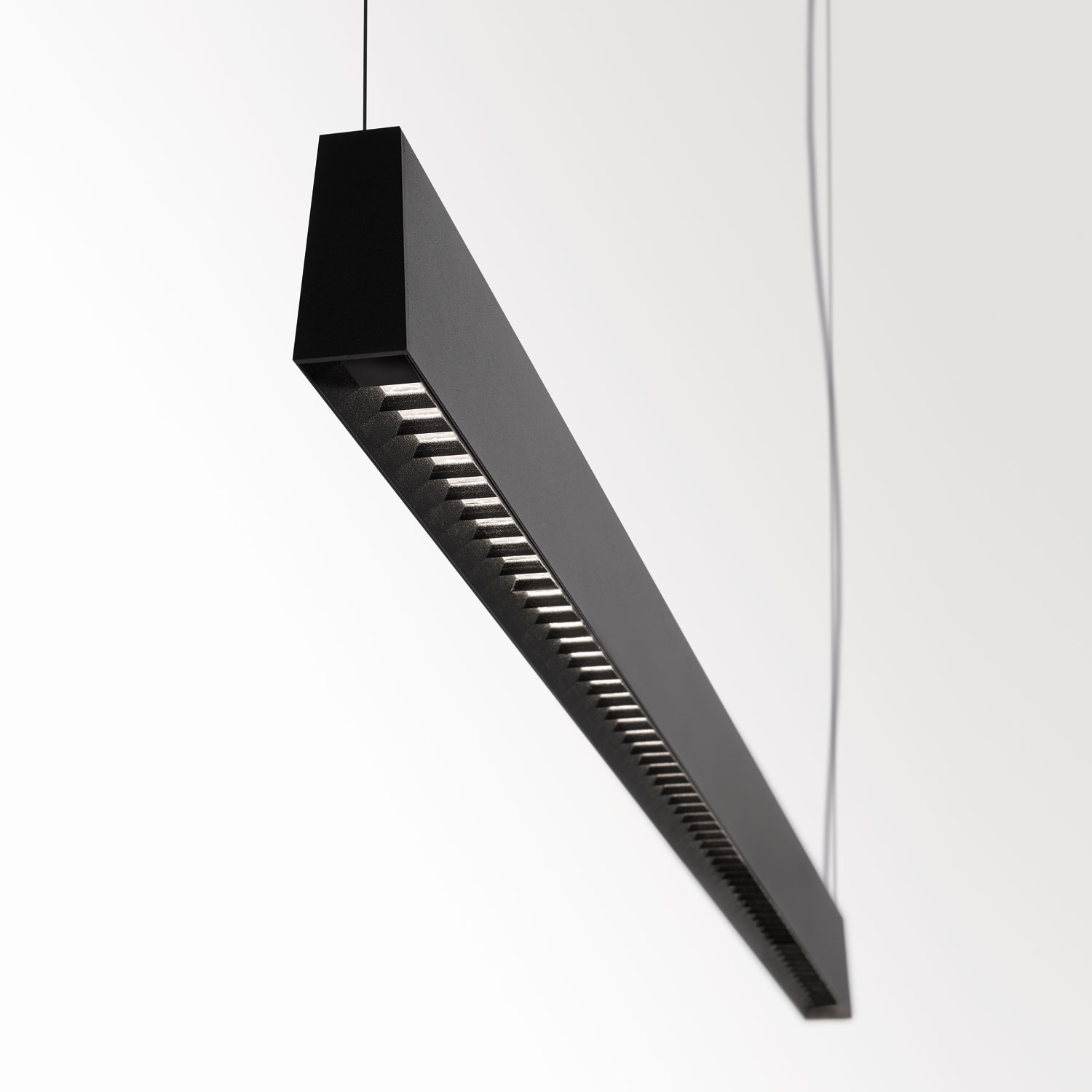

84 x REFLECTOR FL-67° (DOWN)
INCL.DIMMABLE LED POWER SUPPLY 900mA-DC DOWN / 700mA-DC UP
dimmable by DALI or DSI
2 DALI CONTROL CHANNELS
INCL.2 x CABLE SUSPENSION SINGLE AUTO. 1,6m
INCL.1 x CABLE 5 x 0.75mm²
NATURAL LIGHT TECHNOLOGY
CRI CRI 95
Colour temp Neutral White (+4000K)
LED Technics (light source) 5345 lm // 55 W // 98 lm/W
LED Technics (luminaire) 3688 lm // 63 W // 58 lm/W
Electrical 220-240V / 0|50-60Hz
Class Class I
Nett weight 5.4 Kg
IP IP20
Minimum distance n.a.
Remarks n.a.
Energy Class E
Options CABLE BASE R / S
COVERSET R 62-90-100 / S 62-80-90
CONNECTION ST / CONNECTION TRIMLESS
SUSPENSION ST / SUSPENSION TRIMLESS
Click on the icons below for more details
  • European Certificate
  • I
  • Plafond

Finish your specification

Options

204 00 100
COVERSET R 100

204 00 62
COVERSET R 62

204 00 90
COVERSET R 90

204 62 62
COVERSET S 62

204 80 80
COVERSET S 80

204 90 90
COVERSET S 90

203 99 55
CABLE BASE R

203 99 56
CABLE BASE S

15225 0340
SUSPENSION ST

15225 0360
CONNECTION ST

Add to MY DELTALIGHT

Discover more about the CONFORM family

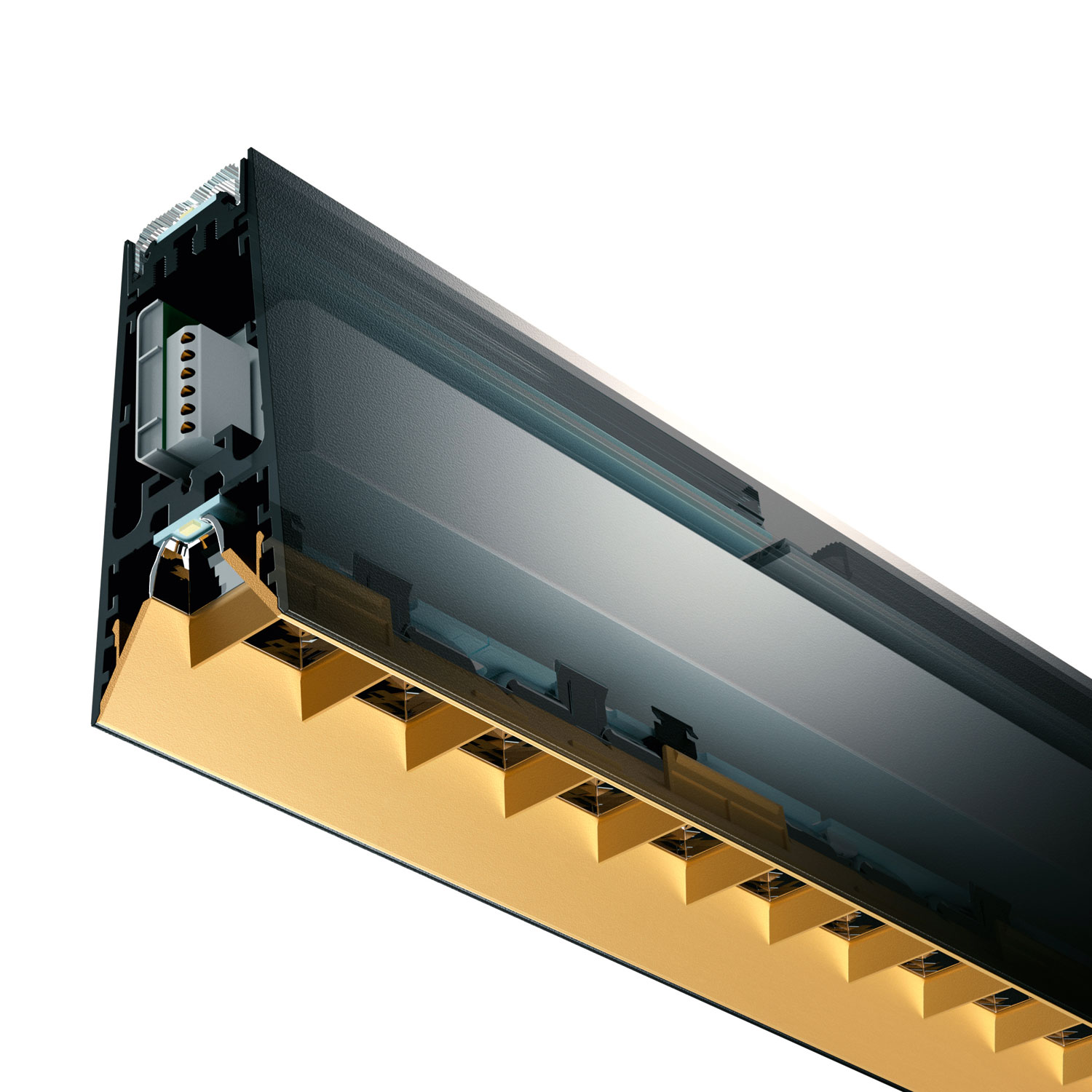

Its elegant design with multiple colour combinations, its specific sun-mimicking spectrum, its low UGR, its well-balanced down-up ratio…we do not exaggerate: Conform is the goddess of office lighting! Conform is designed around the light. It not only perfectly embraces the light source, it reinforces it in multiple aspects. Conform uses Delta Light's Natural Light Technology (NLT), state of the art LEDs with a spectrum that very closely matches that of the sun. That includes a broader spectrum, which is preferable for the human eye and brings out the vibrant colours, and an enhanced cyan energy, boosting the human activity. As so, the LEDs used in Conform help control the human circadian rhythm. To further stimulate the human well-being, Conform uses a down-up ratio of 55% to 45%, as a combination of direct and indirect light is recommended against eye strain. Every downwards facing LED is perfectly embraced by specially designed reflectors, resulting in a beam angle of 67° that enlightens the task area but has no direct impact on the eye. Additionally, the uplight is being spread over the room to enhance the spacial effect and to create a uniform lighting scheme, thanks to the inhouse designed lens extrusion to create a wide batwing beam angle without an intense peak in the centre. CONFORM, by DEAN SKIRA
