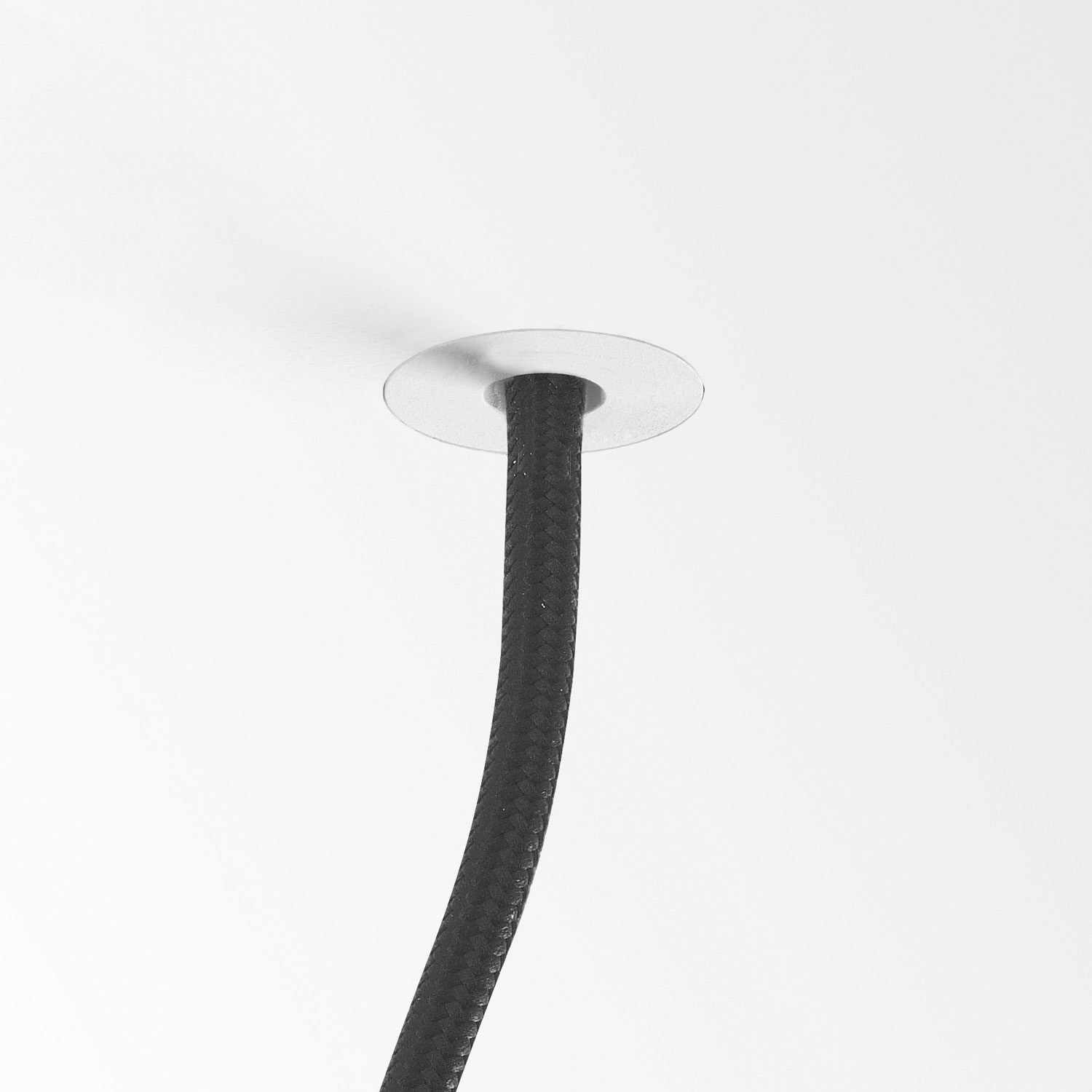

CONNECTION TRIMLESS O.F.A.
328 10 03
Characteristics
| Type | Electric connection parts |
|---|---|
| Location | INTERIOR |
| Cutout shape/size |  62 (CONCRETE: 102) mm |
| Recessed depth | 80 mm |
| Thickness of mounting surface | 9 or 12 |
| Information |
INCL.1 x CONNECTOR 2 x 2,5mm² / 4A / 250V + PE Can be used to suspend luminaires on power cable up to 3kg |
| Class | Class I |
| Nett weight | 0.1 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class I electrical appliance must have its chassis connected to electrical earth (ground) by an earth conductor.
