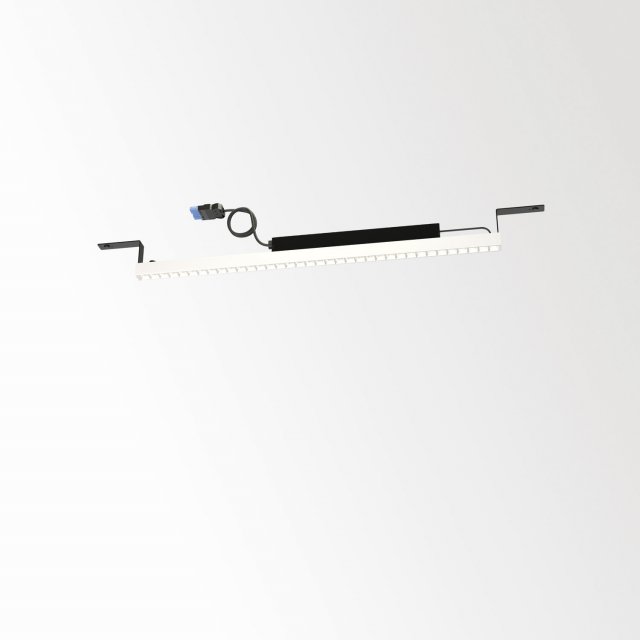

D-LINER 30 INF HF40 13 83067 DIM5 W-W
D-LINER 30 INFORM FOR HEARTFELT 40 ACOUSTIC CEILING
White-White - 29128 8325 W-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| IP | IP20 |
| Weight (kg) | 2 |
| Adjustability | non adjustable |
| Information | 60 x REFLECTOR FL-67°
INCL.DIMMABLE LED POWER SUPPLY 750mA-DC
INCL.1 x CABLE 5 x 0,75mm² - 1m + WIELAND PLUG 5 POLE
INCL.2 x SUSPENSION BRACKET HF40
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Voltage | 220-240V / 0|50-60Hz |
| Class | I |
| Dimming type | DALI |
| Energy class | D |
| Certificates | CB, ENEC, RCM |
Lightsource
| Light source | LED |
| LED information | LED cluster 25,3W / CRI>80 (R9: 50) / 3000K / 4128lm |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | 4128lm // 25,3W // 163lm/W |
| LED technics (luminaire) | 3604lm // 29,1W // 124lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
