DEEP RINGO RIBS IP 93033

Available colors

BLACK Pin this
202 275 811 932 B
Pin this Product pinned in new list
WHITE Pin this
202 275 811 932 W
Pin this Product pinned in new list
FLEMISH GOLD Pin this
202 275 811 932 FG
Pin this Product pinned in new list
FLEMISH BRONZE Pin this
202 275 811 932 FBR
Pin this Product pinned in new list

Characteristics

Location	INTERIOR
Fixation	Ceiling Recessed
Cutout shape/size	76 mm
Recessed depth	90 mm
Thickness of mounting surface	min.5 mm
Information	NON ADJUSTABLE 1 x LED 7,1-10,4W / CRI>90 / 3000K / 812-1128lm REFLECTOR FL-33° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request
CRI	CRI 90
Colour temp	Warm White (+3000K)
LED Technics (light source)	1128 lm // 10 W // 109 lm/W
LED Technics (luminaire)	832 lm // 12 W // 70 lm/W
Electrical
Class	Class III
Nett weight	0.2 Kg
IP	IP44/20
Minimum distance	n.a.
Remarks	n.a.
Requirements	LED POWER SUPPLY 350 / 500mA-DC DIM

Click on the icons below for more details

Description icons:

The CE marking on many products shows that the products is compliant with the European regulations.
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
Ceiling recessed

System ceiling

Plasterboard

Stucanet

Wood

Concrete

Concrete + plaster

Lintel + plaster

Hollow-core slab

Hollow-core slab + plaster

Stretched ceiling

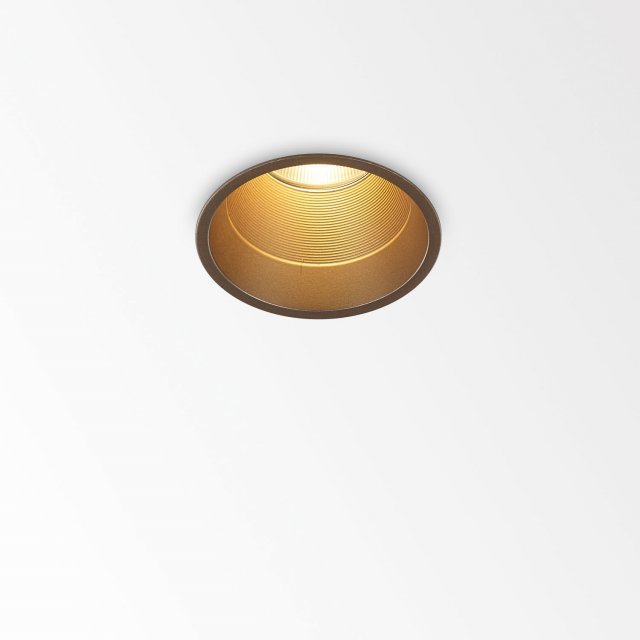

In line with Diro is the Deep Ringo family. The conical shaped reflector of the Deep Ringo fixtures and the the deeper placed LED light, make sure that glare is reduced to a minimum when Deep Ringo is installed in the ceiling. The small trim at the end of the reflector gives a refined touch to this elegant luminaire. The Deep Ringo S is an elegant and highly functional addition to the Delta Light led downlighter range, complementing the existing Ringo product family. The recessed position of the led guarantees a refined ceiling image and higher level of visual comfort. Its pyramid shaped body upgrades Deep Ringo S from other square down lighters, resulting in a higher light output and an aesthetic added value due to the absence of shadow inside the fixture. Deep Ringo S is available in different colours, including gold matte.
