DEEP RINGO TRIMLESS LED IP 92733

Available colors

BLACK Pin this
202 146 811 922 B
Pin this Product pinned in new list
WHITE Pin this
202 146 811 922 W
Pin this Product pinned in new list
GOLD COLORED Pin this
202 146 811 922 GC
Pin this Product pinned in new list
FLEMISH GOLD Pin this
202 146 811 922 FG
Pin this Product pinned in new list
FLEMISH BRONZE Pin this
202 146 811 922 FBR
Pin this Product pinned in new list

Characteristics

Location	INTERIOR
Fixation	Ceiling Recessed
Cutout shape/size	Ø KIT mm
Recessed depth	95 mm
Thickness of mounting surface	n.a.
Information	NON ADJUSTABLE 1 x LED 7,1-10,4W / CRI>90 / 2700K / 779-1083lm REFLECTOR FL-33° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request
CRI	CRI 90
Colour temp	Halogen White (+2700K)
LED Technics (light source)	1083 lm // 10 W // 105 lm/W
LED Technics (luminaire)	824 lm // 12 W // 69 lm/W
Electrical
Class	Class III
Nett weight	0.3 Kg
IP	IP44/20
Minimum distance	n.a.
Remarks	n.a.
Energy Class	E
Requirements	MOUNTING KIT R82 TRIMLESS O.F.A. LED POWER SUPPLY 350 / 500mA-DC DIM

Click on the icons below for more details

Description icons:

The CE marking on many products shows that the products is compliant with the European regulations.
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
Ceiling recessed

System ceiling

Only with

MOUNTING KIT R82 TRIMLESS O.F.A.

Plasterboard

Only with

MOUNTING KIT R82 TRIMLESS O.F.A.

Stucanet

Only with

MOUNTING KIT R82 TRIMLESS O.F.A.

Concrete + plaster

Only with

MOUNTING KIT R82 TRIMLESS O.F.A.

Lintel + plaster

Only with

MOUNTING KIT R82 TRIMLESS O.F.A.

Hollow-core slab + plaster

Only with

MOUNTING KIT R82 TRIMLESS O.F.A.

Stretched ceiling

Only with

MOUNTING KIT R82 TRIMLESS CSC
MOUNTING KIT R82 TRIMLESS WSC

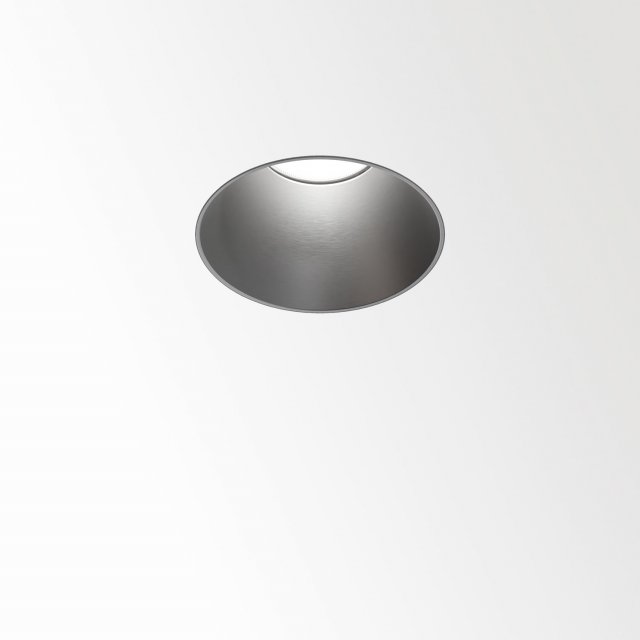

The conical-shaped design of the Deep Ringo fixtures and its deeper placed LED source make sure that glare is reduced to a minimum when Deep Ringo is installed in the ceiling. The small trim gives a refined touch to this elegant luminaire. Available in 3 sizes, with trim or trimless, fix or adjustable, a range of beam angles and multiple finishing colours, Deep Ringo is an easy-to-use downlight throughout the project. Its golden or bronze finish is perfect to add a sniff of luxury to the room. MINI DEEP RINGO Mini Deep Ringo is playful, as it comes in a multitude of finishing colours, has 3 different beam angles to choose from and can be fix or adjustable. A range of possibilities in a slender design. DEEP RINGO Deep Ringo is the most elaborate of the family, offering LED and halogen solutions, for use in both dry and wet areas. Similar as the Reo family, Deep Ringo also offers a ribbed version that reduces the glare thanks to its cascading transition from light source to ceiling. DEEP RINGO X - Outdoor The conical-shaped design of the Deep Ringo fixtures and the deeper placed LED source make sure that glare is reduced to a minimum when Deep Ringo is installed in the ceiling. The small trim gives a refined touch to this elegant luminaire.
