DIRO SBL L 82 B

DIRO SBL L 82 B

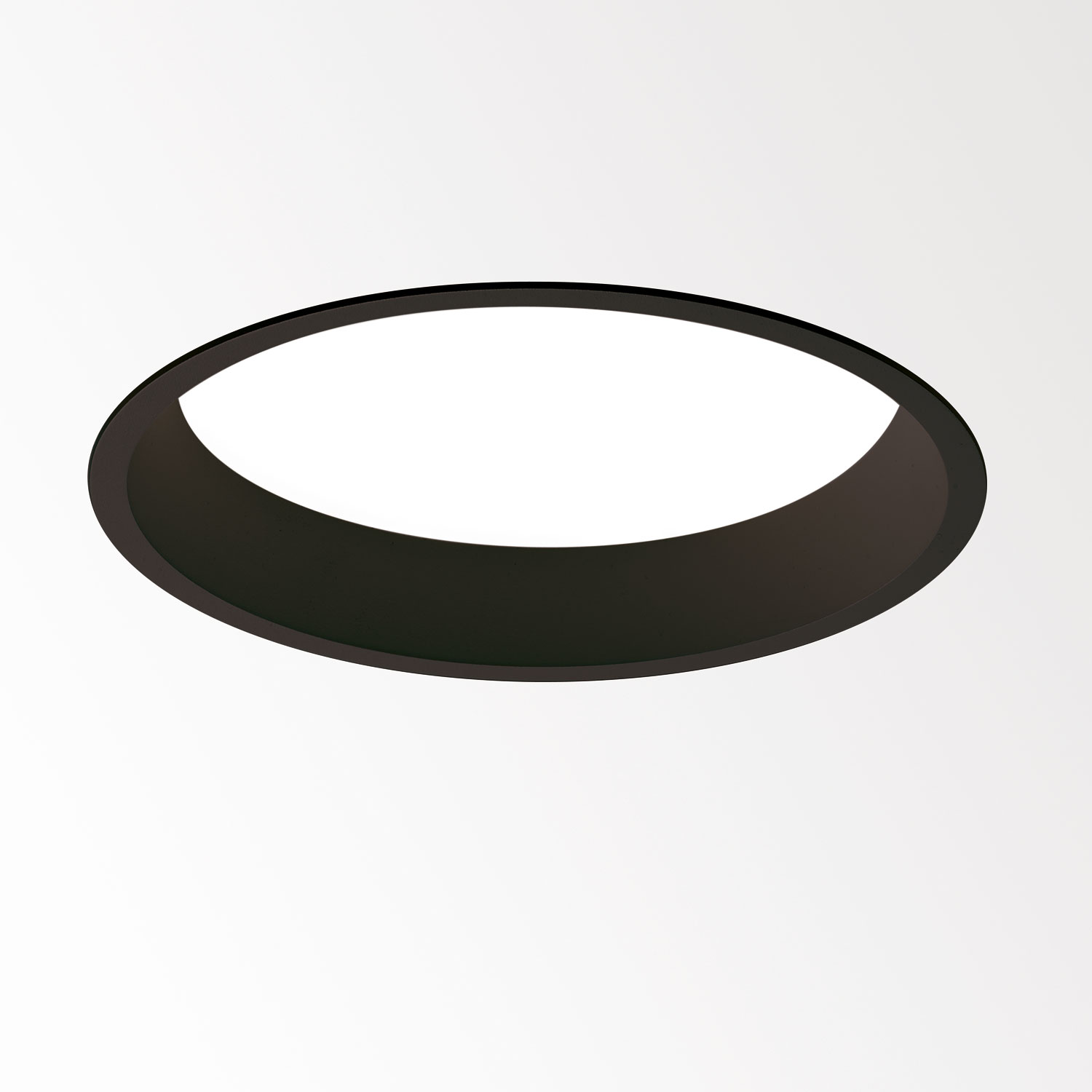

DIRO WITH OPAL DIFFUSER - LARGE - RECESSED
Black - 202 297 82 B
CRI
CCT

General

Location
Indoor
CCT
2700K
Fixation
Ceiling
Installation
Recessed
Cutout shape
round
Cutout size (mm)
208
Min. recessed depth (mm)
70
Thickness of mounting surface (mm)
max.25
IP
IP20
Weight (kg)
1
Adjustability
non adjustable
Information
INCL.LED POWER SUPPLY 1050mA-DC INCL.PC SBL

Electrical

Voltage
100-240V / 50-60Hz
Electrical
100-240V / 50-60Hz 1 x LED
Class
II
Dimming type
non-dimmable
Energy class
C

Lightsource

Light source
LED
LED information
LED FLEX 17,5W / CRI>80 / 2700K / 3000lm
LED technics (light source)
3000 lm // 17 W // 171 lm/W
LED technics (luminaire)
1643lm // 20,1W // 82lm/W
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Ceiling compatibility

Please find an overview of the suitable ceiling types for this specific product.

Ceiling Type
Mounting kit
systemceiling.svg
system ceiling
-
stretch_ceiling.svg
stretched ceiling
-
plasterboard.svg
plasterboard
-
stucanet.svg
stucanet
-
wood.svg
wood
-
