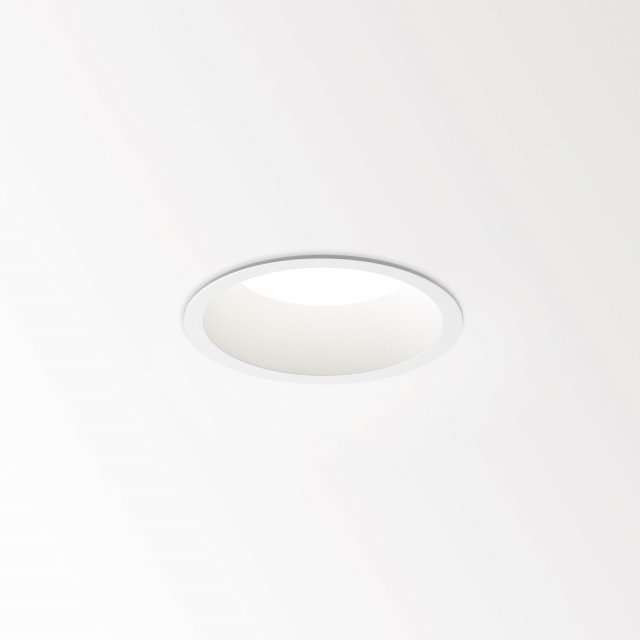

DIRO SBL S 83 W
DIRO WITH OPAL DIFFUSER - RECESSED
White - 202 295 83 W
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 121 |
| Min. recessed depth (mm) | 80 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP43/20 |
| Weight (kg) | 0.4 |
| Adjustability | non adjustable |
| Information | INCL.LED POWER SUPPLY 350mA-DC
INCL.PC SBL |
Electrical
| Voltage | 100-240V / 50-60Hz |
| Electrical | 100-240V / 50-60Hz
1 x LED |
| Class | II |
| Dimming type | non-dimmable |
| Energy class | C |
Lightsource
| Light source | LED |
| LED information | LED FLEX 5,9W / CRI>80 / 3000K / 1020lm |
| LED technics (light source) | 1020 lm // 5,9 W // 173 lm/W |
| LED technics (luminaire) | 382lm // 6,8W // 56lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
