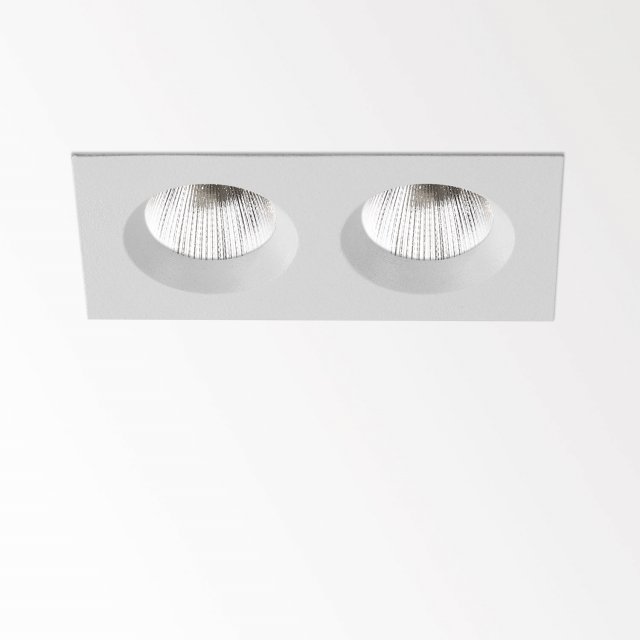

EN-SUITE 2S 93018 W
White - 26319 9310 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 93 x 48 |
| Min. recessed depth (mm) | 50 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 |
| Weight (kg) | 0.1 |
| Adjustability | non adjustable |
| Information | 2 x REFLECTOR SP-18°
EXCL.LED POWER SUPPLY 250mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | A |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | 2 x (LED array 3,9W / CRI>90 (R9: 52) / 3000K / 554lm) |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1108lm // 7,8W // 142lm/W |
| LED technics (luminaire) | 851lm // 9W // 95lm/W |
Additional
| Requirements | LED POWER SUPPLY 250mA-DC DIM |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI POWER 60-360mA-DC | 110-240V | II | non-dimmable | IP20 | round | 40 | 1 | Add to pinlist |
 | LED POWER SUPPLY 250mA-DC / 10W DIM5 | 220-240V | II | DALI | IP20 | round | 40 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 200-350 / 15W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 50 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 250-900 / 20W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 48 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 3(3) | Add to pinlist |
