ENTERO SQ-L 93010
Available colors
-

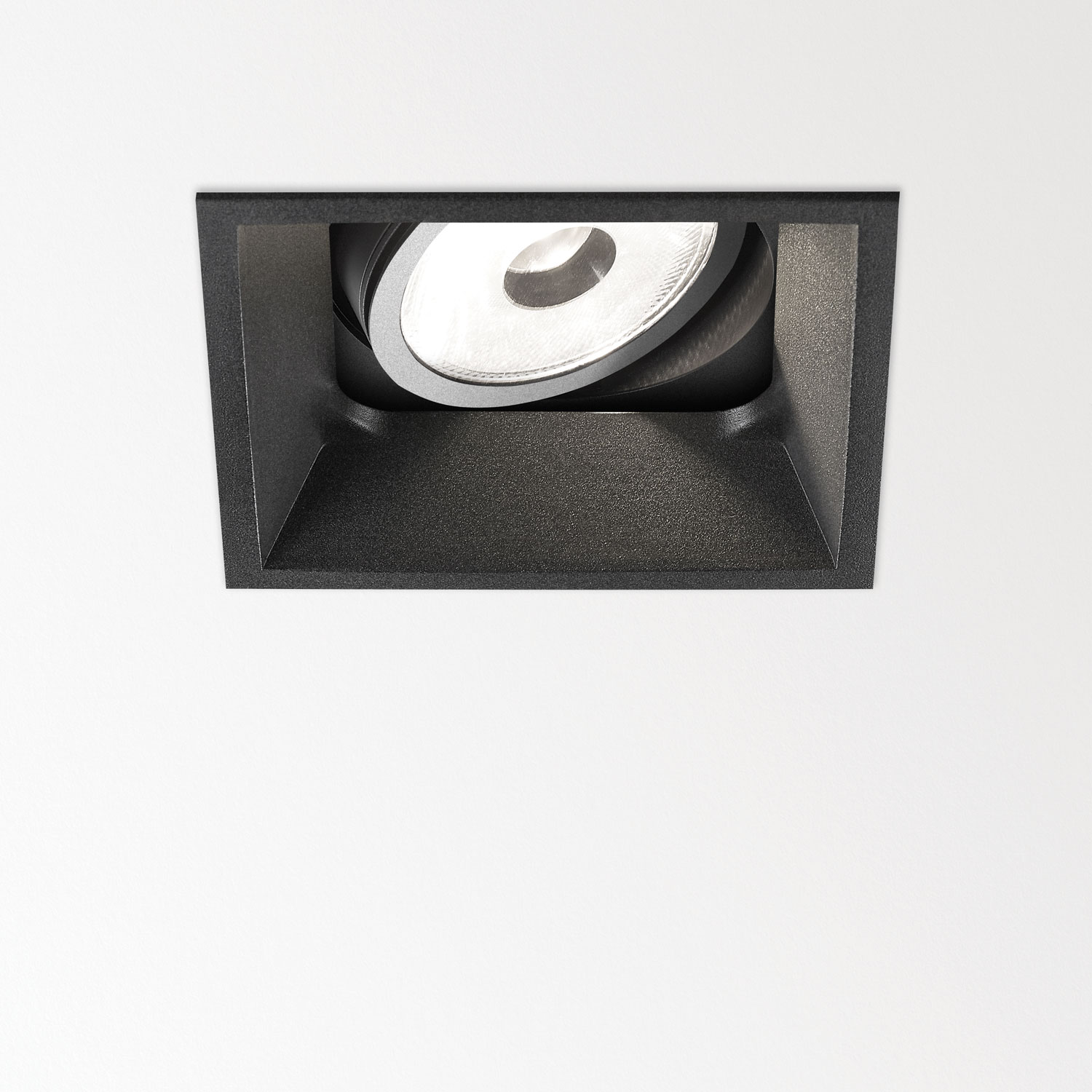

BLACK
28517 9310 B -

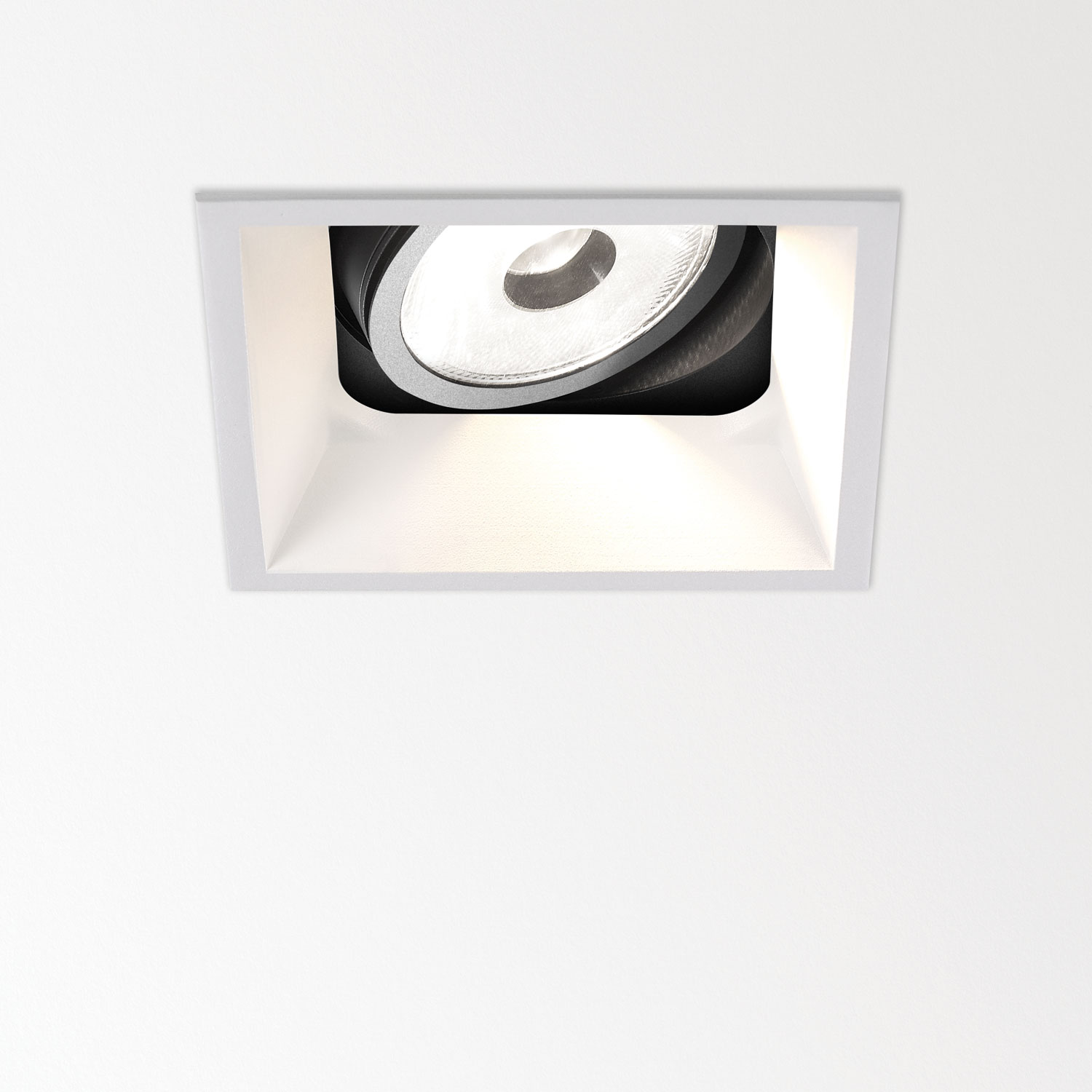

WHITE
28517 9310 W -

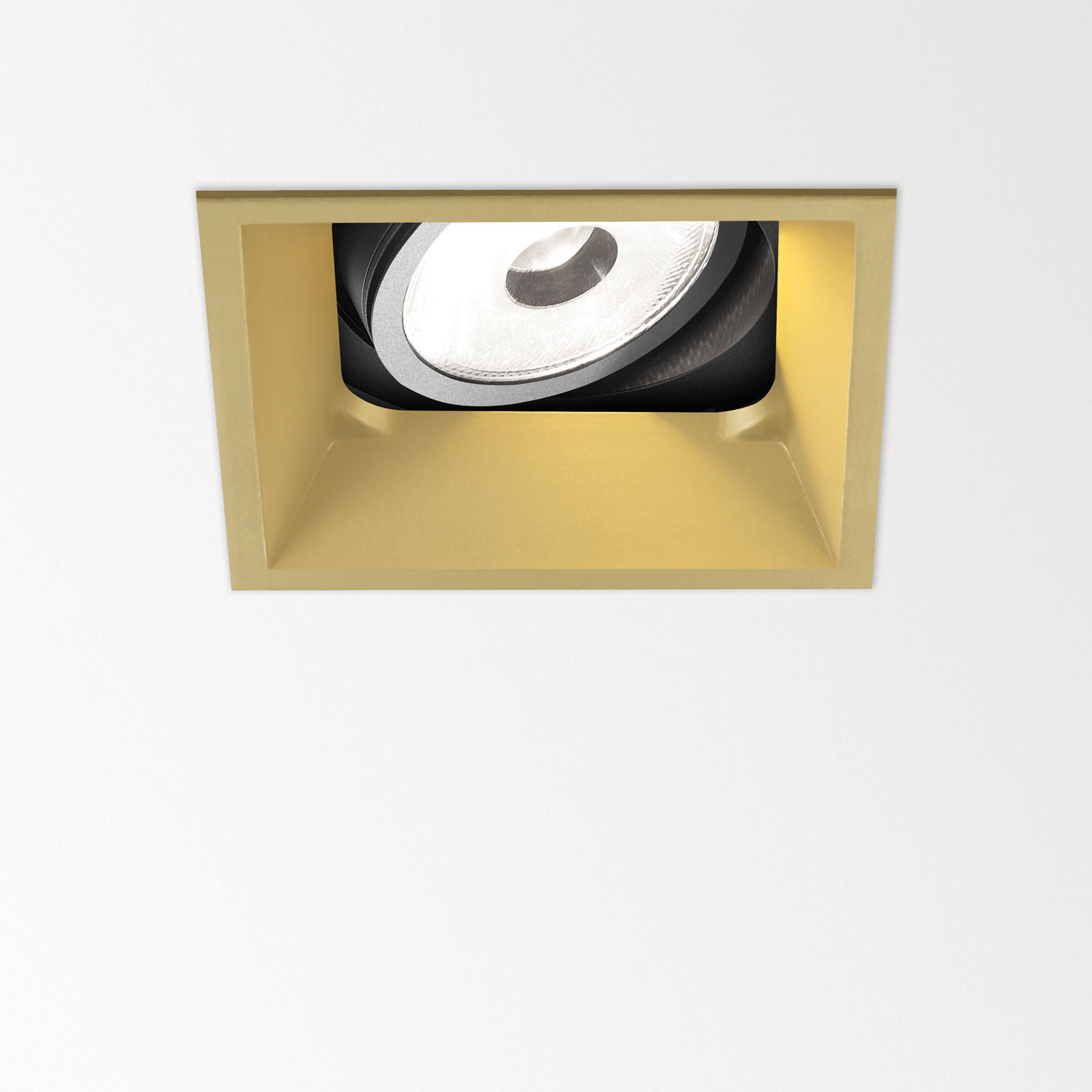

GOLD COLORED
28517 9310 GC
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  112 x 112 mm |
| Recessed depth | 160 mm |
| Thickness of mounting surface | 12,5 or 25 mm |
| Information |
ADJUSTABLE 0-30°/355° 1 x LED 3,9-10,7W / CRI>90 / 3000K / 385-814lm LENS SP-10° EXCL.LED POWER SUPPLY 350-900mA-DC |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 814 lm // 10 W // 76 lm/W |
| LED Technics (luminaire) | 709 lm // 12 W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.745 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | G |
| Accessories |
ENTERO L HONEYCOMB |
| Requirements |
LED POWER SUPPLY 350 / 500 / 700 / 900mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Accessories
28500 0170
ENTERO L HONEYCOMB SINGLE USE
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
300 48 700 ED1
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM1
300 48 700 ED5
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM5
300 48 700 MDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W MDL
300 48 700 WDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W WDL
300 90 110
LED POWER SUPPLY 350mA-DC / 10W DIM8
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Plasterboard
Stucanet
Wood
Concrete
Concrete + plaster
Lintel + plaster
Hollow-core slab
Hollow-core slab + plaster
Stretched ceiling
Discover more about the ENTERO family
Entero is a set of lighting tools enabling architects and designers to create discrete but diverse lighting schemes, using only one luminaire type throughout the entire project. Any type of project.
The Entero name comes from the Spanish language and means “complete”. It is thé most complete product family, created to excel in any environment. A full range of recessed downlights providing a solution for diverse lighting dilemmas. Any project type: retail, residential, public, hospitality, art… Any need. Any size. Anywhere.
Entero is engineered to perfection, both for interior and exterior applications. It enables architects and designers to achieve style continuity throughout the entire project, applying the same clean sightlines and minimal appearance to damp locations, outside ceilings and cantilevers.
The brand-new Entero is presented as a set of adjustable luminaires, available in different power levels, with a multitude of beam angles, with or without trim. For extra flexibility and project diversity, options such as Soft Dim, Tunable White and wallwash complete the Entero family.
