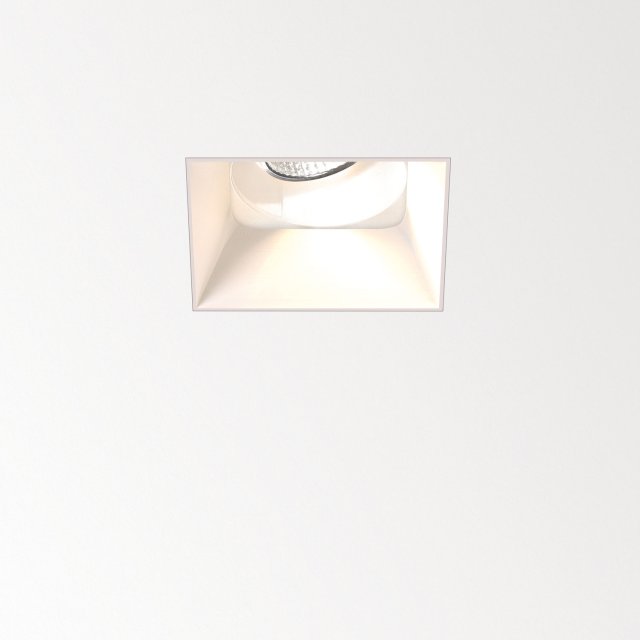

ENTERO SQ-S TRIMLESS IP 92720 B
New

ENTERO SQ-S TRIMLESS IP 92745 B

Black - 28550 9230 B
CRI
Beam angle
CCT
Red Dot Design Award 2022

General

Location
Indoor
CCT
2700K
Fixation
Ceiling
Installation
Recessed
Cutout shape
rectangle
Cutout size (mm)
Ø KIT
Max. recessed depth (mm)
120
IP
IP44/20
Weight (kg)
0.24
Adjustability
0° to 20° swiveling, 355° rotatable
Information
REFLECTOR WFL-45° EXCL.LED POWER SUPPLY 350-500mA-DC

Electrical

Class
III
Dimming type
depending on type of external power supply
Energy class
E
Certificates
CB, ENEC

Lightsource

Light source
LED
LED information
LED array 5,8-8,6W / CRI>90 (R9: 60) / 2700K / 753-1041lm
TM-30 Values
Rf: 89 / Rg: 100
SDCM
SDCM1
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1041lm // 8,6W // 121lm/W
LED technics (luminaire)
681lm // 10W // 69lm/W

Additional

Requirements
MOUNTING KIT ENTERO SQUARE S LED POWER SUPPLY 350 / 500mA-DC DIM
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Ceiling compatibility

Please find an overview of the suitable ceiling types for this specific product.
