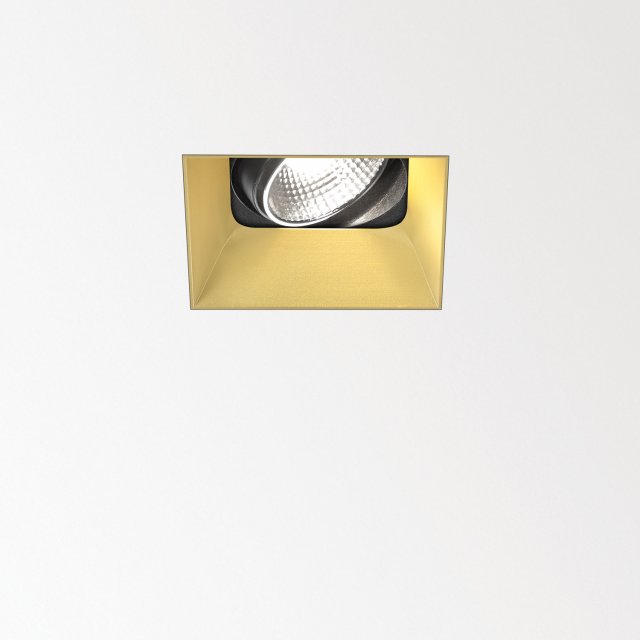

ENTERO SQ-S TRIMLESS SOFT 93020 GC
ENTERO SQUARE SMALL TRIMLESS
Gold Coloured - 28526 9020 GC
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K-1800K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 110 |
| IP | IP20 |
| Weight (kg) | 0.24 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | REFLECTOR FL-20°
EXCL.DIMMABLE LED POWER SUPPLY 250mA-DC
Optional REFLECTOR 45° available |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 8,3W / CRI>90 (R9: 50) / 3000K-1800K / 934lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 934lm // 8,3W // 113lm/W |
| LED technics (luminaire) | 726lm // 9,5W // 76lm/W |
Additional
| Requirements | MOUNTING KIT ENTERO SQUARE S
LED POWER SUPPLY 250mA-DC DIM |
| Accessories | ENTERO S HONEYCOMB
ENTERO S LINEAR SPREAD LENS
ENTERO S SPREAD LENS
ENTERO S SOFTENING LENS
ENTERO S GLASS SBL |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 250mA-DC / 10W DIM5 | 220-240V | II | DALI | IP20 | round | 40 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 200-350 / 15W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 50 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 250-900 / 20W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 48 | 1 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 1(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 3(3) | Add to pinlist |
Mounting kits
| Product name | Cutout shape | Cutout size | Thickness of mounting surface | ||
|---|---|---|---|---|---|
 | MOUNTING KIT ENTERO SQ-S | square | 106 x 106 | min.10-max.25 | Add to pinlist |
