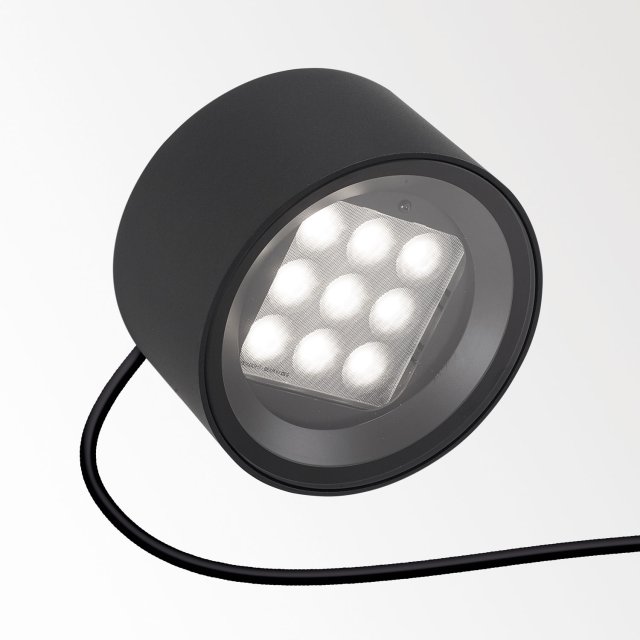

FRAX MB 93047

Available colors

  • DARK GREY

    26010 9380 N
    Pin this

Characteristics

Location EXTERIOR
Fixation Floor Surface mounted / Wall Surface mounted
Recessed depth n.a.
Thickness of mounting surface n.a.
Information ADJUSTABLE 0-120°/360°
4 x LENS SP-14°
LED CLUSTER 23W / CRI>90 / 3000K / 2390lm
INCL.LED POWER SUPPLY 900mA-DC
INCL. BEAM LENS 47°
INCL.1 x CABLE H05 RN-F 3 x 1mm² 2m
Other CRI or KELVIN on request
CRI CRI 90
Colour temp Warm White (+3000K)
LED Technics (light source) 2390 lm // 23 W // 104 lm/W
LED Technics (luminaire) 1673 lm // 26 W // 63 lm/W
Electrical 220-240V / 50-60Hz
Class Class I
Nett weight 2.1 Kg
IP IP65
Minimum distance n.a.
Remarks n.a.
Options FRAX ANTI VANDAL SCREWS
Accessories FRAX M KAP
Requirements FRAX BRACKET
FRAX PIN
FRAX STRAP
Click on the icons below for more details
  • European Certificate
  • I
  • Vloer
  • Wand

Finish your specification

Options

Accessories

26070 0020
FRAX M KAP

Requirements

26070 0060
FRAX BRACKET

26070 0040
FRAX PIN

26070 0050
FRAX STRAP

Add to MY DELTALIGHT

Discover more about the FRAX family

Light and ambiance is not only for indoors, by combining light and architecture in outdoor settings, the city also remains vibrant at night. With its 7 different light effects and its multiple installation options, Frax has been designed for every aspect of the urban architecture: any form, any material or any composition. Optical precision Frax is based on Delta Light’s LED Caset® technology, which combines multiple LEDs with individual collimator lenses per LED to generate a clean-cut light distribution. The individual lenses create a multi-layered light distribution to generate a clean 8° or 14° beam angle. Other beam angles or other light effects are being obtained by adding microlenses in front, sculpting the light into a 26° or 47° beam angle or into a linear or wallwash effect. Visual well-being Frax not only cares about the perfect light effect, it takes care about the passer-by as well. Frax can be provided with an additional honeycomb or a snoot to reduce the possebility from directly looking into the light source. Both of them reduce any undesired lighteffect and the glare associated with it. MADE FOR HARSH ENVIRONMENTS IP65 - IK06 thanks to 5mm thick glass for Frax S IK08 thanks to 8mm thick glass for Frax M - UV-resistant components for extended lifespan - Thermal protector inside to prevent the luminaire from overheating - D-Lock: in-house designed moisture lock to prevent humidity entering the luminaire - No visible cable coming out of the luminaire as all cabling runs through the hinge

More about FRAX
