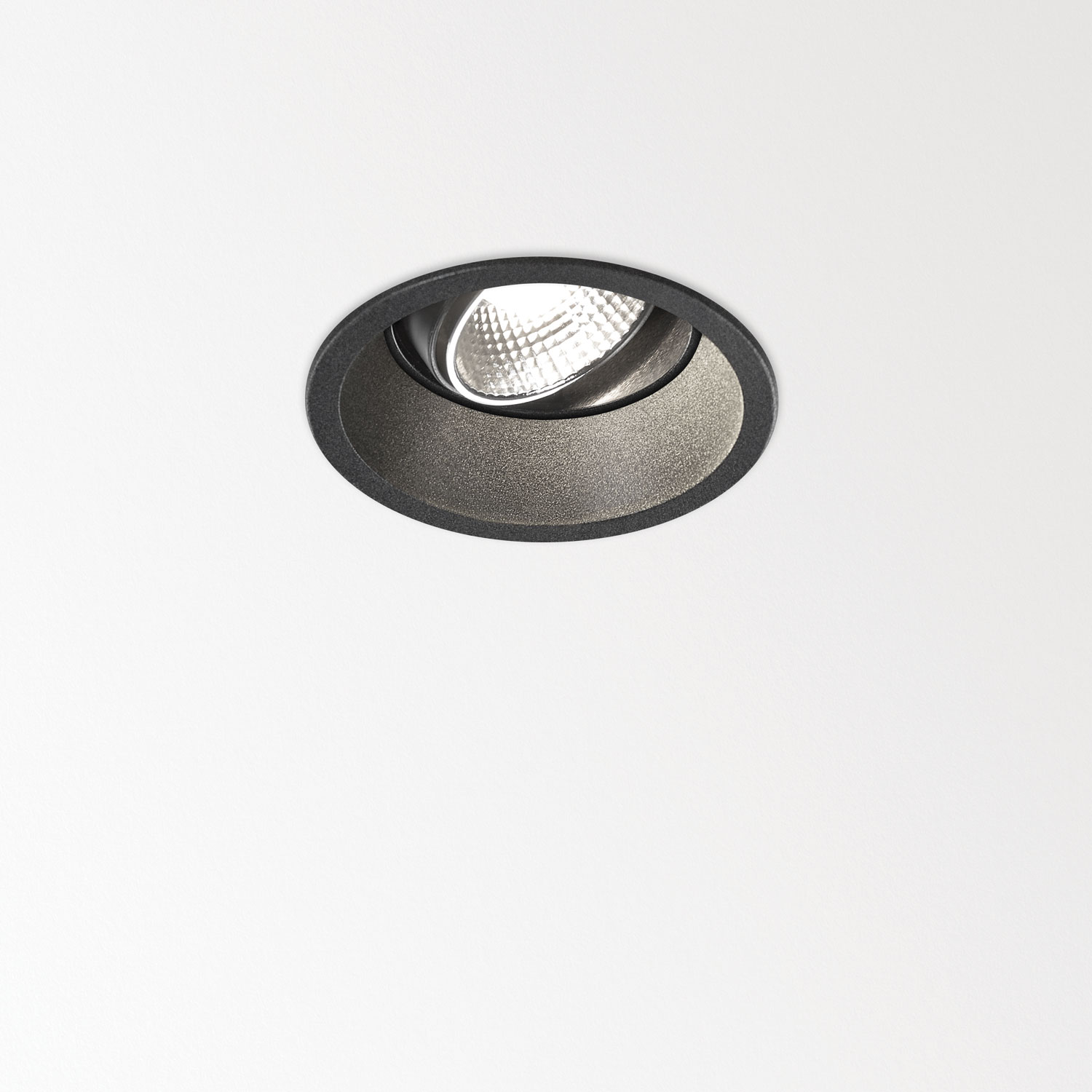

HALOSCAN ST MP 92714

Available colors

  • BLACK

    23111 9210 B
    Pin this
  • WHITE

    23111 9210 W
    Pin this

Characteristics

Location INTERIOR
Fixation Ceiling Recessed
Cutout shape/size Cutout shape 70 mm
Recessed depth 55 mm
Thickness of mounting surface max.25 mm
Information ADJUSTABLE 0-45°/355°
1 x LED 5,8-8,6W / CRI>90 / 2700K / 753-1041lm
LENS SP-14°
EXCL.LED POWER SUPPLY 350-500mA-DC
Other CRI or KELVIN on request
CRI CRI 90
Colour temp Halogen White (+2700K)
LED Technics (light source) 1041 lm // 8 W // 121 lm/W
LED Technics (luminaire) 10 W
Electrical
Class Class III
Nett weight 0.3 Kg
IP IP20
Minimum distance n.a.
Remarks n.a.
Accessories HALOSCAN HONEYCOMB
HALOSCAN LINEAR SPREAD LENS
Requirements LED POWER SUPPLY 350 / 500mA-DC DIM
Click on the icons below for more details
  • European Certificate
  • III
  • Plafond

Finish your specification

Accessories

Requirements

Add to MY DELTALIGHT

Ceiling compatibility

System ceiling

Plasterboard

Wood

Stretched ceiling

Discover more about the HALOSCAN family

Haloscan is a family of accent lights that come semi-recessed, surface mounted or as modules on the magnetic profiles. Designed around its flat optics, Haloscan combines ultra-minimalistic looks with a pleasurable light effect. The light is softly spread by the plane lens, creating up to 4 different beam angles, from spot to floodlight and even linear light. To smoothly turn an tilt, Haloscan uses the Ex-Centric Rotation System, an asymmetrical hinge that combines rotating and tilting abilities in one swift move.
