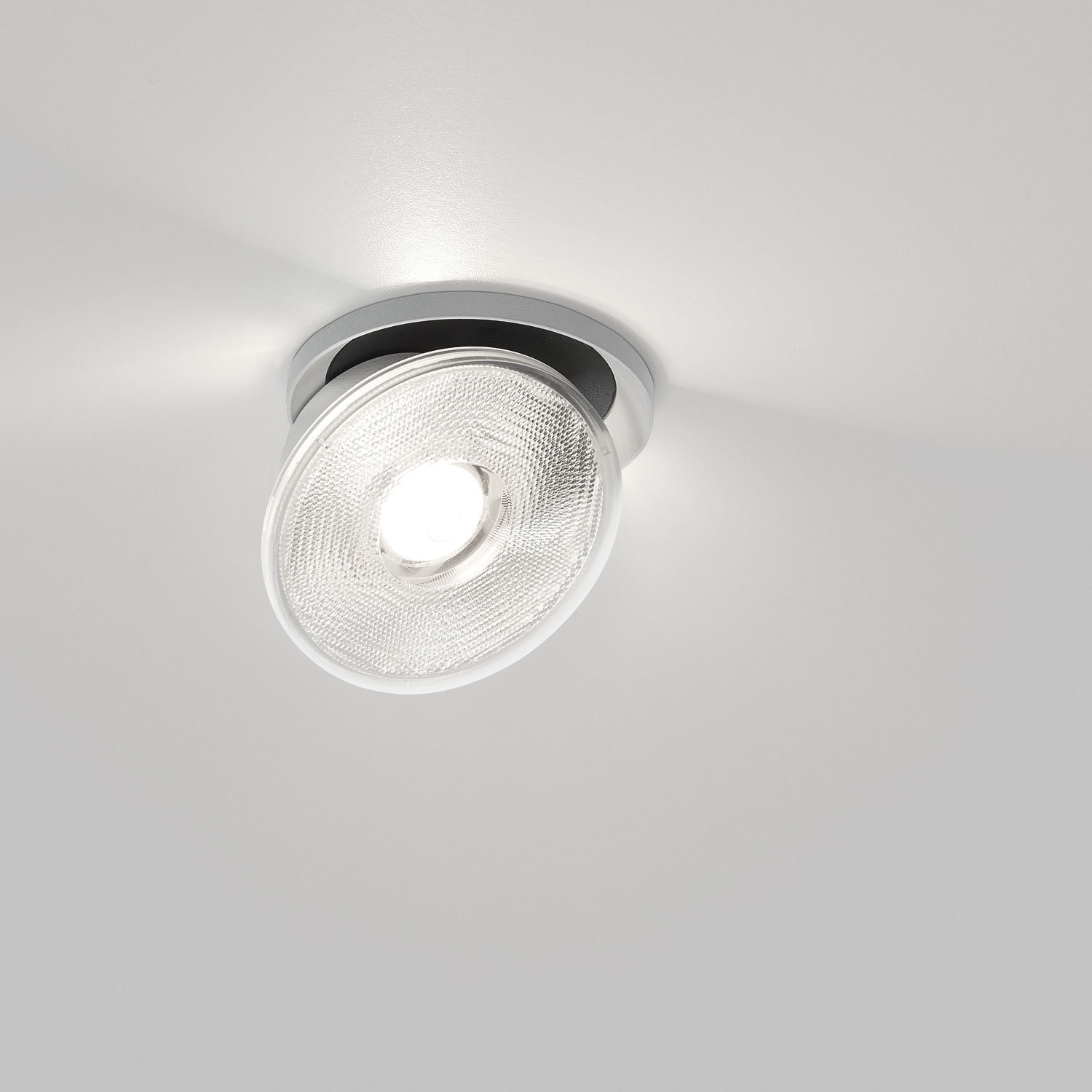

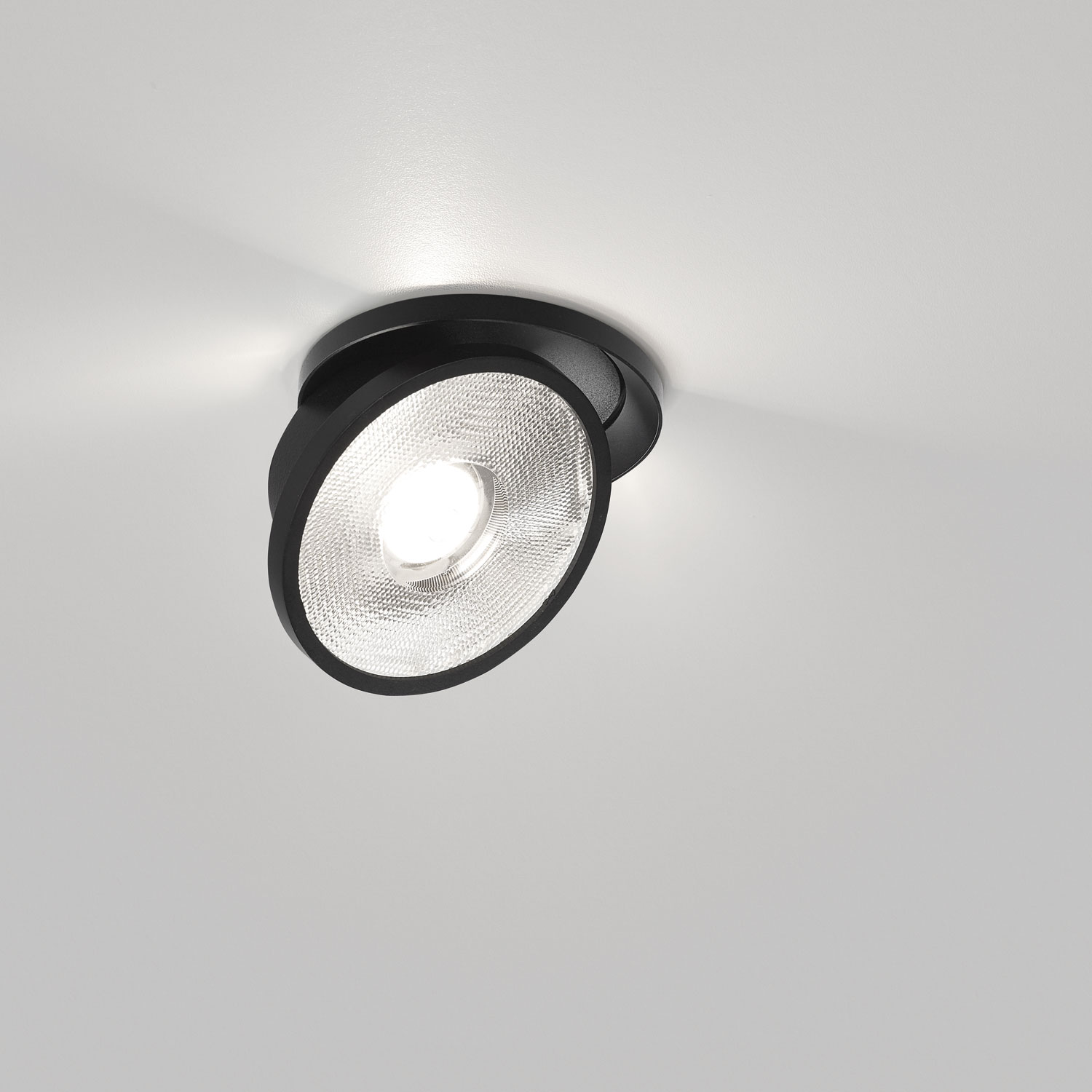

HALOSCAN ST MP 92721
Available colors
-
BLACK
23111 9220 B -
WHITE
23111 9220 W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  70 mm |
| Recessed depth | 55 mm |
| Thickness of mounting surface | min.1 mm |
| Information |
ADJUSTABLE 0-45°/355° 1 x LED 5,8-8,6W / CRI>90 / 2700K / 753-1041lm LENS FL-21° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Halogen White (+2700K) |
| LED Technics (light source) | 1041 lm // 8 W // 121 lm/W |
| LED Technics (luminaire) | 812 lm // 10 W // 82 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.3 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Accessories |
HALOSCAN HONEYCOMB HALOSCAN LINEAR SPREAD LENS |
| Requirements |
LED POWER SUPPLY 350 / 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Accessories
23110 0050
HALOSCAN HONEYCOMB
23110 0040
HALOSCAN LINEAR SPREAD LENS
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 0308
LED POWER SUPPLY 350mA / 7,35W DIM8
21012 0318
LED POWER SUPPLY 500mA / 10W DIM8
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Plasterboard
Wood
Concrete
Concrete + plaster
Lintel + plaster
Hollow-core slab + plaster
Stretched ceiling
Discover more about the HALOSCAN family
Haloscan is a family of accent lights that come semi-recessed, surface mounted or as modules on the magnetic profiles. Designed around its flat optics, Haloscan combines ultra-minimalistic looks with a pleasurable light effect. The light is softly spread by the plane lens, creating up to 4 different beam angles, from spot to floodlight and even linear light. To smoothly turn an tilt, Haloscan uses the Ex-Centric Rotation System, an asymmetrical hinge that combines rotating and tilting abilities in one swift move.
