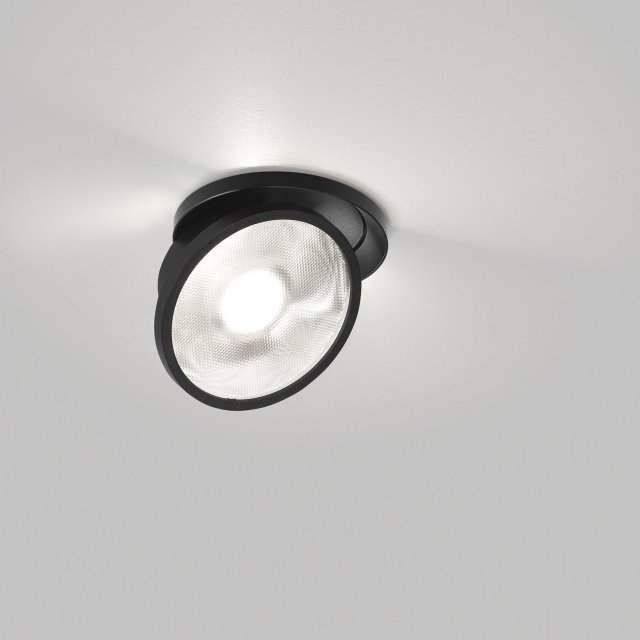

HALOSCAN ST MP SOFT 93014
Available colors
-
BLACK
23112 9010 B -
WHITE
23112 9010 W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  70 mm |
| Recessed depth | 55 mm |
| Thickness of mounting surface | min.1 mm |
| Information |
ADJUSTABLE 0-45°/355° 1 x LED 6W / CRI>90 / 3000-1800K / 623lm LENS SP-14° EXCL.LED POWER SUPPLY 350mA-DC |
| CRI | CRI 90 |
| Colour temp | SOFT DIM (3000K - 1800K) |
| LED Technics (light source) | 623 lm // 6 W // 105 lm/W |
| LED Technics (luminaire) | 532 lm // 7 W // 77 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.3 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Accessories |
HALOSCAN HONEYCOMB HALOSCAN LINEAR SPREAD LENS |
| Requirements |
LED POWER SUPPLY 350mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Accessories
23110 0050
HALOSCAN HONEYCOMB
23110 0040
HALOSCAN LINEAR SPREAD LENS
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
21012 0308
LED POWER SUPPLY 350mA / 7,35W DIM8
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Plasterboard
Wood
Concrete
Concrete + plaster
Lintel + plaster
Hollow-core slab + plaster
Stretched ceiling
Discover more about the HALOSCAN family
Haloscan is a family of accent lights that come semi-recessed, surface mounted or as modules on the magnetic profiles. Designed around its flat optics, Haloscan combines ultra-minimalistic looks with a pleasurable light effect. The light is softly spread by the plane lens, creating up to 4 different beam angles, from spot to floodlight and even linear light. To smoothly turn an tilt, Haloscan uses the Ex-Centric Rotation System, an asymmetrical hinge that combines rotating and tilting abilities in one swift move.
