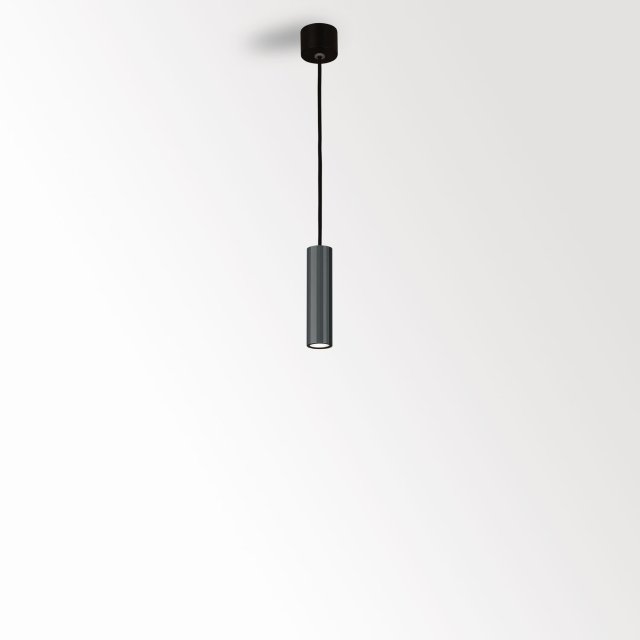

HEDRA 451 C 93040 DIM8
Available colors
-
BLACK
472 221 932 ED8 B -
WHITE
472 221 932 ED8 W -
GOLD COLORED ANODIZED
472 221 932 ED8 GC -
BLACK BRONZE
472 221 932 ED8 BBR
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Suspended |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
INCL.1 x LED 6,4W / CRI>90 / 3000K / 587lm INCL.1 x REFLECTOR WFL-40° INCL.DIMMABLE LED POWER SUPPLY 350mA-DC MAINS DIMMING - TRAILING EDGE INCL.1 x CABLE 2 x 0.75mm² / 1,6m Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 587 lm // 6 W // 92 lm/W |
| LED Technics (luminaire) | 488 lm // 7 W // 66 lm/W |
| Electrical | 220-240V / 50-60Hz |
| Class | Class II |
| Nett weight | 0.6 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Options |
CONNECTION TRIMLESS |
| Requirements |
MIDISPY TUBE |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
Explanation of the class symbol
-
Ceiling suspended
Finish your specification
Options
300 90 004 ED8
WIRELESS CONTROL DIM8
328 10 03
CONNECTION TRIMLESS O.F.A.
Requirements
414 03 00
MIDISPY TUBE
Discover more about the VIZIR/HEDRA family
Vizir and Hedra, two new members of the Delta Light family, add refinement, finesse and color to the range. They are characterized by an atypical hinge, a design element that not only catches the eye, but also serves as storage for technical parts inside the luminaire. Next to black and white, the Vizir and Hedra are available in the new Gold Colored anodization and Black Bronze finishes, ether polished or in faceted texture. The faceted design of the Hedra captures and reflects the ambient light with an ever-changing look as result. It is also the typical design element of the Hedra family, a series of pendant, spotlight and wall mounted luminaires, available as full LED solution or for retrofit bulbs.
