24224 9310
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  Ø KIT mm |
| Recessed depth | 145 mm |
| Thickness of mounting surface | n.a. |
| Information |

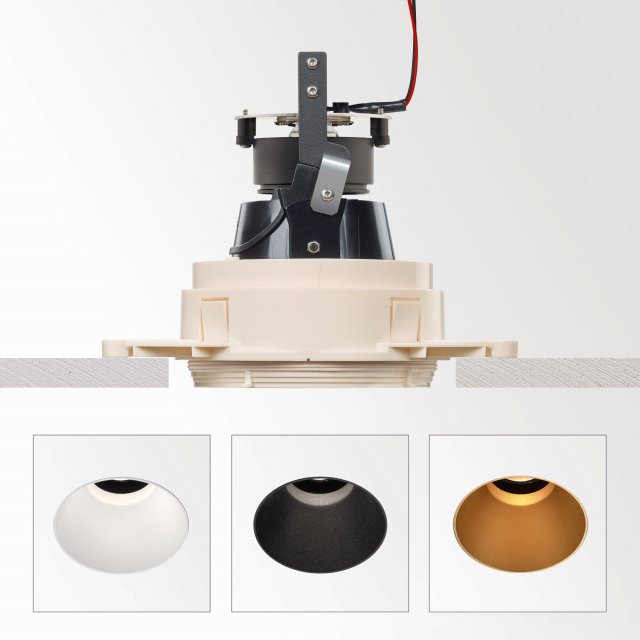

ADJUSTABLE 0-30°/355° 1 x LED 2-3,2W / CRI>90 / 3000K / 229-319lm LENS SP-6° EXCL.LED POWER SUPPLY 700-1050mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 319 lm // 3 W // 100 lm/W |
| LED Technics (luminaire) | 286 lm // 4 W // 78 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.3 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | F |
| Accessories |
IMAX HONEYCOMB |
| Requirements |
MOUNTING KIT R102 TRIMLESS O.F.A. MOUNTING KIT S102 TRIMLESS O.F.A. MOUNTING KIT S102 TRIMLESS iMAX II TUBE TRIMLESS LED POWER SUPPLY 700 / 1050mA-DC DIM |
Description icons:
The CE marking on many products shows that the products is compliant with the European regulations.
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
Ceiling recessed
400 03 01
iMAX HONEYCOMB
300 48 700 ED1
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM1
300 48 700 ED5
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM5
300 48 700 MDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W MDL
300 48 700 PRO ED1
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W PRO DIM1
300 48 700 PRO ED5
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W PRO DIM5
300 48 700 PRO WDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W PRO WDL
300 48 700 WDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W WDL
300 90 148
LED POWER SUPPLY 1050mA-DC / 22W
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 136
LED POWER SUPPLY MULTI-POWER HC DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
15212 2010
MOUNTING KIT R102 TRIMLESS O.F.A.
400 92 00
MOUNTING KIT S102 TRIMLESS
400 92 00 OFA
MOUNTING KIT S102 TRIMLESS O.F.A.
15212 0090
MOUNTING KIT R102 TRIMLESS CSC
15212 0170
MOUNTING KIT R102 TRIMLESS WSC
24213 0020
iMAX II TUBE ROUND TRIMLESS
24213 0030
iMAX II TUBE SQUARE TRIMLESS
Only with
MOUNTING KIT R102 TRIMLESS O.F.A.
Only with
MOUNTING KIT S102 TRIMLESS O.F.A.
Only with
MOUNTING KIT R102 TRIMLESS O.F.A.
Only with
MOUNTING KIT S102 TRIMLESS
Only with
MOUNTING KIT R102 TRIMLESS O.F.A.
The Soft Ceiling concept enables you to create discreet but diverse lighting schemes using only one luminaire type. It allows architects and designers to work with different lighting applications, beams and output levels, using unobtrusive and glare-free fixtures for a zero-sightline ceiling. Thanks to precise engineering, the use of superior lenses and a multitude of accessories, Soft Ceiling fixtures guarantee optimal optic performance and maximum eye comfort. The vast range of options allow you to work with a Soft Ceiling luminaire throughout the entire project, meeting the different needs of each room, without unnecessary cluttering of the ceiling. iMax II symbolizes the maximum eye comfort / minimal appearance philosophy, an ideal lighting solution that fits the Soft Ceiling concept. Where the initial evolution in LED and optics focused on better output, smaller chips and longer lifetime, the second evolution is again shifting to user comfort with more precise optics and better light control. As the purpose of the iMax II family is to provide the best visual comfort to the user - thanks to its recessed LED engine - this range is perfect to build further on this evolution: improved efficiency, improved beam angles and the possibility to combine all versions as they use uniform LED engines. The iMax II range combines premium LED engines with precise optics, delivering high performance, maximum efficacy and high quality illumination. iMax II is using lenses out of plexiglass HW55, a material able to withstand high temperatures and allowing lumen packages up to 2000lm. Next to the high output, the lenses allow for a perfect control of the beam angle and a high uniformity on the light emitting surface, which results in reduced glare. Furthermore, if a different beam angle is required, the lenses can easily be interchanged. The round versions with trim within the range are available with a clear glass, offering IP54. This enables you to continue the Soft Ceiling minimalism and uniformity throughout bathrooms, wellness areas and other indoor damp locations. The Soft Ceiling concept focuses on minimal appearance, giving focus to the light instead of the fixture. As such, the collection fuses Delta Light’s aspirations for design sophistication and attention to detail, with precise engineering and premium materials, resulting in minimal fixtures with maximum impact. The interchangeable tubes and colour finishes allow you to apply luminaires that disappear into the background.
