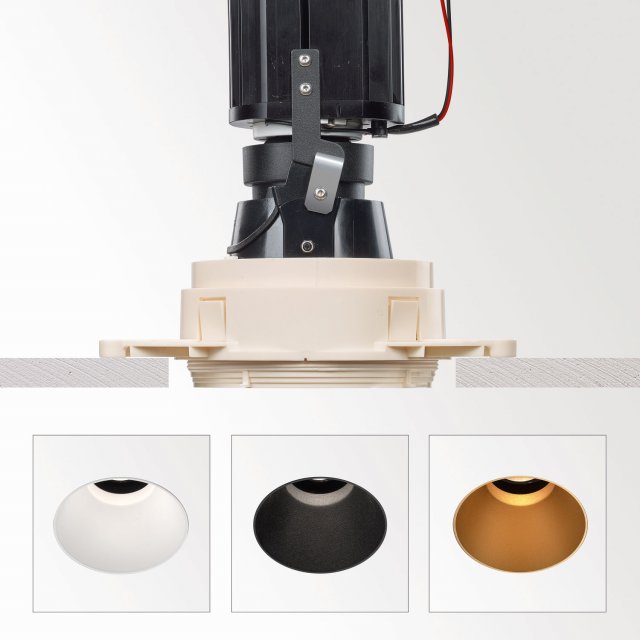

iMAX II ADJUSTABLE TRIMLESS MP 93026
24215 9320
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 190 |
| IP | IP20 |
| Weight (kg) | 0.4 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | LENS FL-26°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Energy class | D |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
Additional
| Requirements | MOUNTING KIT R102 TRIMLESS O.F.A.
MOUNTING KIT S102 TRIMLESS O.F.A.
MOUNTING KIT S102 TRIMLESS
iMAX II TUBE TRIMLESS
LED POWER SUPPLY 350 / 500mA-DC DIM |
| Accessories | iMAX II ACCESSOIRES |
Technical data was measured in optimum conditions.
