iMAX II ADJUSTABLE TRIMLESS MP 93039

24215 9330

Pin thisProduct pinned in new list

Characteristics

Location	INTERIOR
Fixation	Ceiling Recessed
Cutout shape/size	Ø KIT mm
Recessed depth	190 mm
Thickness of mounting surface	n.a.

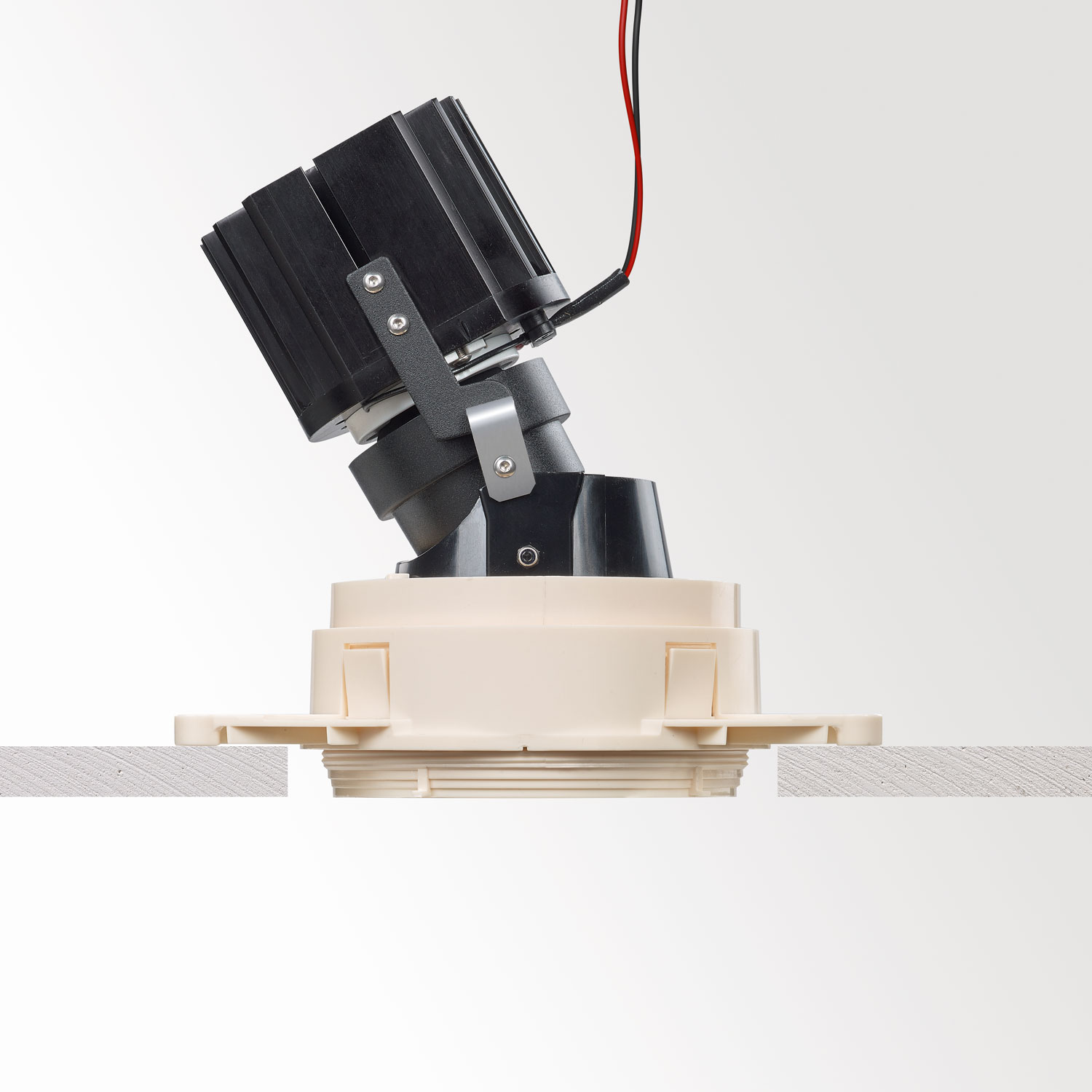

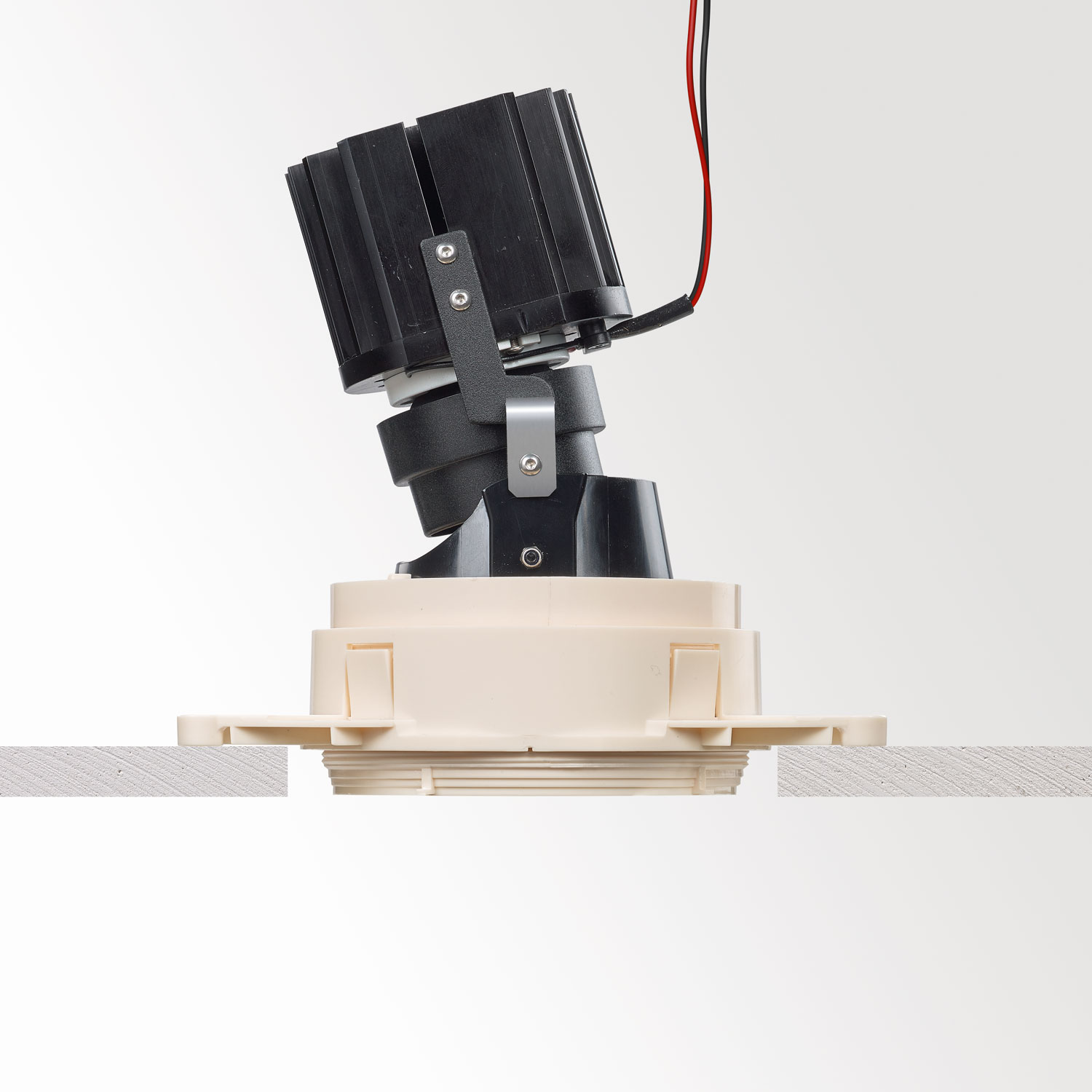

Information	ADJUSTABLE 0-30°/355° 1 x LED 11,6-17,2W / CRI>90 / 3000K / 1524-2101lm LENS FL-39° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request
CRI	CRI 90
Colour temp	Warm White (+3000K)
LED Technics (light source)	2101 lm // 17 W // 123 lm/W
LED Technics (luminaire)	1463 lm // 20 W // 74 lm/W
Electrical
Class	Class III
Nett weight	0.4 Kg
IP	IP20
Minimum distance	n.a.
Remarks	No HONEYCOMB, SPREAD LENS or LINEAR SPREAD LENS @ 500mA !
Energy Class	D
Accessories	iMAX II ACCESSOIRES
Requirements	MOUNTING KIT R102 TRIMLESS O.F.A. MOUNTING KIT S102 TRIMLESS O.F.A. MOUNTING KIT S102 TRIMLESS iMAX II TUBE TRIMLESS LED POWER SUPPLY 350 / 500mA-DC DIM

Click on the icons below for more details

Description icons:

The CE marking on many products shows that the products is compliant with the European regulations.
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
Ceiling recessed
