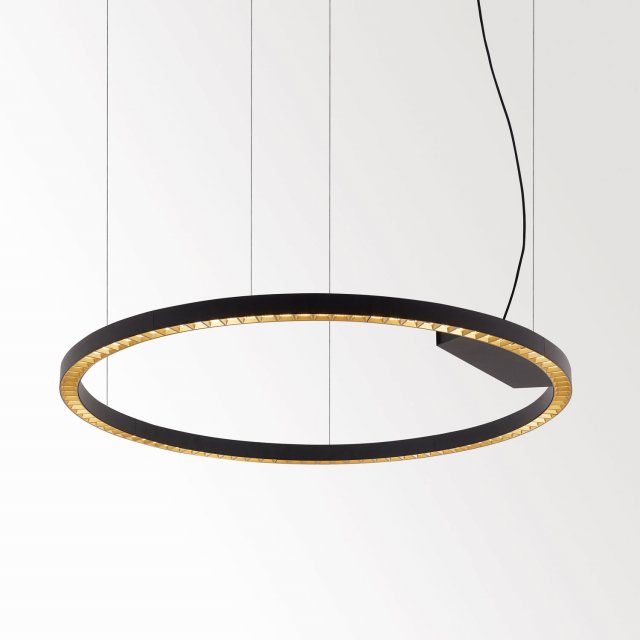

INFORM R1+ DOWN-UP 92748 DIM5
Available colors
-
BLACK-BLACK
26814 9225 B-B -
BLACK-GOLD MATT
26814 9225 B-MMAT -
WHITE-BLACK
26814 9225 W-B -
WHITE-WHITE
26814 9225 W-W -
FLEMISH GOLD-BLACK
26814 9225 FG-B
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Suspended |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
LED CLUSTER DOWN 23,8W / CRI>90 / 2700K / 3546lm LED CLUSTER UP 11,9W / CRI>90 / 2700K / 1773lm 96 x REFLECTOR WFL-71° (DOWN) INCL.DIMMABLE LED POWER SUPPLY 700mA-DC DIMMING BY DALI 2 DALI CONTROL CHANNELS INCL.4 x CABLE SUSPENSION SINGLE AUTO. 1,6m INCL.1 x CABLE 5 x 0.75mm² |
| CRI | CRI 90 |
| Colour temp | Halogen White (+2700K) |
| LED Technics (light source) | 5319 lm // 35 W // 149 lm/W |
| LED Technics (luminaire) | 4441 lm // 41 W // 108 lm/W |
| Electrical | 220-240V / 50-60Hz |
| Class | Class I |
| Nett weight | 2.8 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | C |
| Options |
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class I electrical appliance must have its chassis connected to electrical earth (ground) by an earth conductor.
-
Ceiling suspended
Finish your specification
Options
204 00 100
COVERSET R 100
204 00 62
COVERSET R 62
204 00 90
COVERSET R 90
204 62 62
COVERSET S 62
204 80 80
COVERSET S 80
204 90 90
COVERSET S 90
203 99 55
CABLE BASE R
203 99 56
CABLE BASE S
15225 0340
SUSPENSION ST
328 10 01
SUSPENSION TRIMLESS O.F.A.
15225 0360
CONNECTION ST
328 10 03
CONNECTION TRIMLESS O.F.A.
Discover more about the INFORM family
A working tool The Inform family is an extensive range of linear and curved lighting solutions, designed to be used in applications that include task areas, like landscape offices, meeting rooms, reception desks, home office,… Areas which need technical architectural lighting at its best: eye for design, eye for the user and eye for performance. The base of this family is a combination of Delta Light's Melanopic Light Technology (MLT) with high efficient louvre optics. Ultimate visual comfort Different from the fluorescent tubes, a LED array is build up out of multiple LEDs. Therefore, the reflector is designed to perfectly embrace every individual LED module in a way to boost the efficiency of the complete luminaire while maintaining a high level of visual comfort as every LED dot is shielded from being looked into.
