SCHUMAN EUROPOLE SNCF (FR)
Discover more

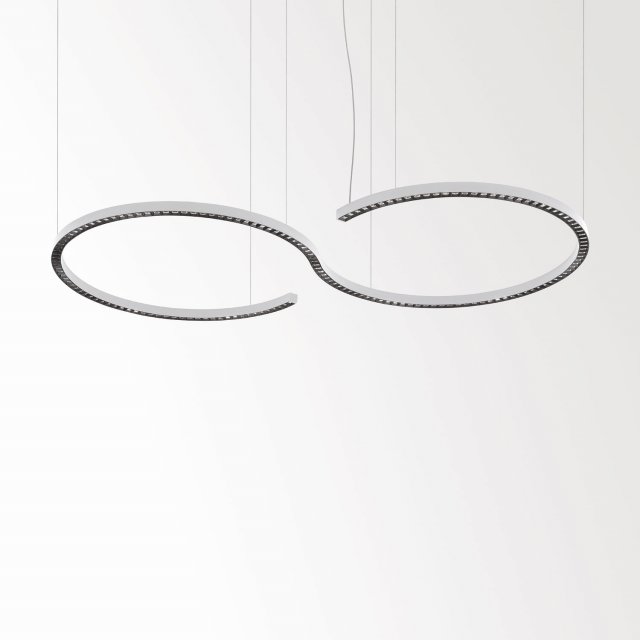

INFORM R3 DOWN-UP 92748
Available colors
-
BLACK-BLACK
26823 9220 B-B -
BLACK-GOLD MATT
26823 9220 B-MMAT -
WHITE-BLACK
26823 9220 W-B -
WHITE-WHITE
26823 9220 W-W -
FLEMISH GOLD-BLACK
26823 9220 FG-B
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Suspended |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
LED CLUSTER DOWN 35,7W / CRI>90 / 2700K / 5319lm LED CLUSTER UP 17,9W / CRI>90 / 2700K / 2660lm 168 x REFLECTOR WFL-71° (DOWN) EXCL.2 x LED POWER SUPPLY 1050mA-DC (DOWN/UP) INCL.7 x CABLE SUSPENSION SINGLE AUTO. 1,6m INCL.1 x CABLE 5 x 0.75mm² |
| CRI | CRI 90 |
| Colour temp | Halogen White (+2700K) |
| LED Technics (light source) | 7979 lm // 53 W // 149 lm/W |
| LED Technics (luminaire) | 6662 lm // 62 W // 108 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 4.2 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | C |
| Options |
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS |
| Requirements |
LED POWER SUPPLY 1050mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling suspended
Finish your specification
Options
204 00 100
COVERSET R 100
204 00 62
COVERSET R 62
204 00 90
COVERSET R 90
204 62 62
COVERSET S 62
204 80 80
COVERSET S 80
204 90 90
COVERSET S 90
203 99 55
CABLE BASE R
203 99 56
CABLE BASE S
15225 0340
SUSPENSION ST
328 10 01
SUSPENSION TRIMLESS O.F.A.
15225 0360
CONNECTION ST
328 10 03
CONNECTION TRIMLESS O.F.A.
Requirements
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
Discover more about the INFORM family
A working tool The Inform family is an extensive range of linear and curved lighting solutions, designed to be used in applications that include task areas, like landscape offices, meeting rooms, reception desks, home office,… Areas which need technical architectural lighting at its best: eye for design, eye for the user and eye for performance. The base of this family is a combination of Delta Light's Melanopic Light Technology (MLT) with high efficient louvre optics. Ultimate visual comfort Different from the fluorescent tubes, a LED array is build up out of multiple LEDs. Therefore, the reflector is designed to perfectly embrace every individual LED module in a way to boost the efficiency of the complete luminaire while maintaining a high level of visual comfort as every LED dot is shielded from being looked into.
