Apto MB (CO)
Discover more
INFORM R4 C DOWN-UP 93048
Available colors
-
BLACK-BLACK
26826 9320 B-B -
BLACK-GOLD MATT
26826 9320 B-MMAT -
WHITE-BLACK
26826 9320 W-B -
WHITE-WHITE
26826 9320 W-W -
FLEMISH GOLD-BLACK
26826 9320 FG-B
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Suspended |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
LED CLUSTER DOWN 23,8W / CRI>90 / 3000K / 3594lm LED CLUSTER UP 11,9W / CRI>90 / 3000K / 1797lm 96 x REFLECTOR WFL-71° (DOWN) EXCL.2 x LED POWER SUPPLY 700mA-DC (DOWN/UP) INCL.3 x CABLE SUSPENSION SINGLE AUTO. 1,6m INCL.1 x CABLE 5 x 0.75mm² |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 5391 lm // 35 W // 151 lm/W |
| LED Technics (luminaire) | 4501 lm // 41 W // 110 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 2.2 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | C |
| Options |
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS |
| Requirements |
LED POWER SUPPLY 700mA-DC DIM INFORM R POWERBOX D/U DIM5 |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling suspended
Finish your specification
Options
204 00 100
COVERSET R 100
204 00 62
COVERSET R 62
204 00 90
COVERSET R 90
204 62 62
COVERSET S 62
204 80 80
COVERSET S 80
204 90 90
COVERSET S 90
203 99 55
CABLE BASE R
203 99 56
CABLE BASE S
15225 0340
SUSPENSION ST
328 10 01
SUSPENSION TRIMLESS O.F.A.
15225 0360
CONNECTION ST
328 10 03
CONNECTION TRIMLESS O.F.A.
Requirements
26810 0025

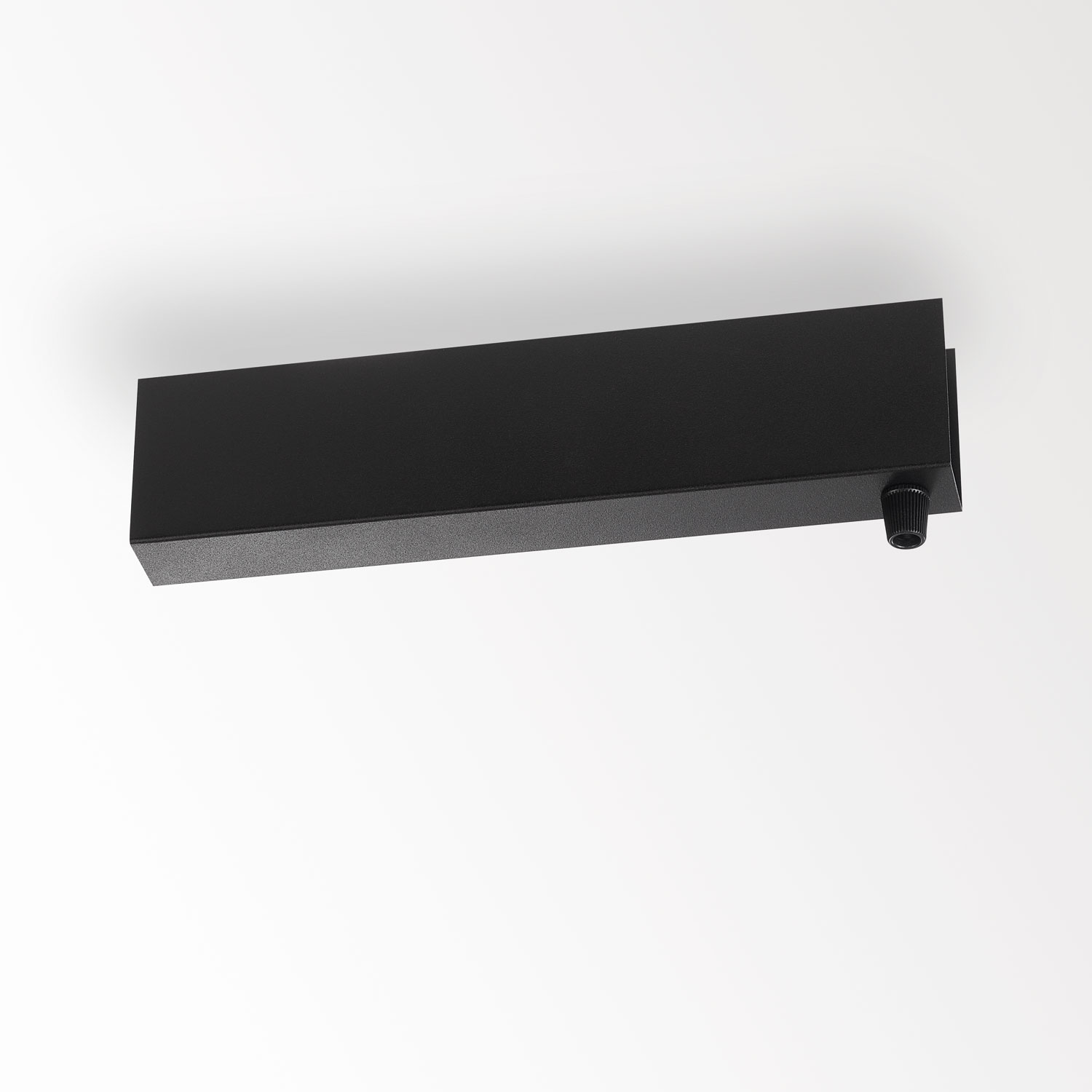

INFORM R POWERBOX D/U DIM5
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
Discover more about the INFORM family
A working tool The Inform family is an extensive range of linear and curved lighting solutions, designed to be used in applications that include task areas, like landscape offices, meeting rooms, reception desks, home office,… Areas which need technical architectural lighting at its best: eye for design, eye for the user and eye for performance. The base of this family is a combination of Delta Light's Melanopic Light Technology (MLT) with high efficient louvre optics. Ultimate visual comfort Different from the fluorescent tubes, a LED array is build up out of multiple LEDs. Therefore, the reflector is designed to perfectly embrace every individual LED module in a way to boost the efficiency of the complete luminaire while maintaining a high level of visual comfort as every LED dot is shielded from being looked into.
Download The Lighting Bible 14.
View beautiful magazines online.
Contact us for additional information.
