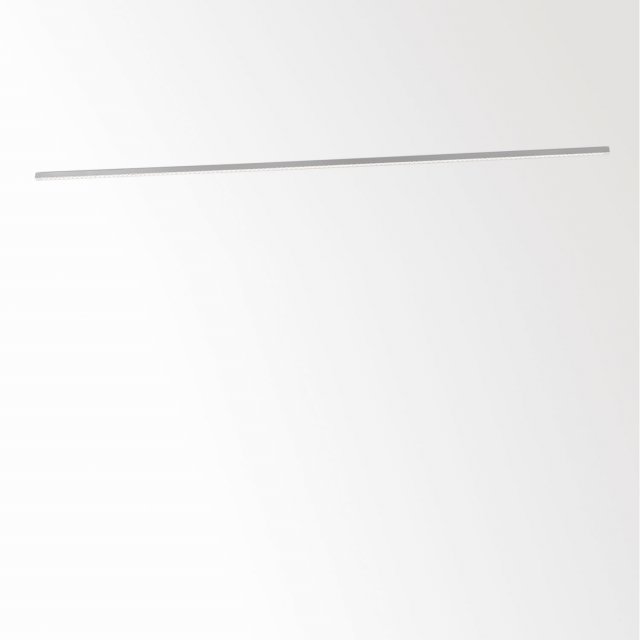

INFORM SQ F282-10 84067 W-W
INFORM 28 SURFACE MOUNTED
White-White - 25528 8420 W-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 4000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 2.2 |
| Adjustability | non adjustable |
| Information | 120 x REFLECTOR FL-67°
EXCL.LED POWER SUPPLY 1000/1500mA-DC
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | B |
| Certificates | CB, ENEC, EPD |
Lightsource
| Light source | LED |
| LED information | LED cluster 32,8-50,6W / CRI>80 (R9: 50) / 4000K / 5892-8652lm |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | 8652lm // 50,6W // 171lm/W |
| LED technics (luminaire) | 7553lm // 58,2W // 130lm/W |
Additional
| Requirements | INFORM POWER SUPPLY 60W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 60W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
 | INFORM POWER SUPPLY 60W | 220-240V | I | non-dimmable | IP20 | - | - | 1 | Add to pinlist |
