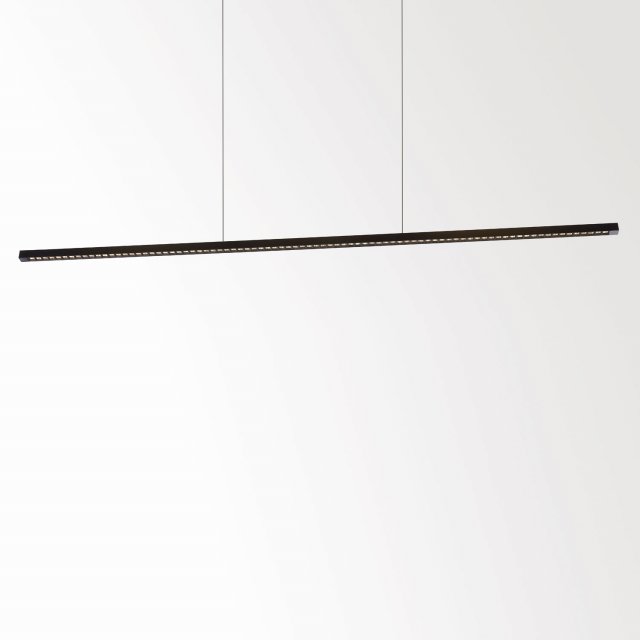

INFORM SQ P200-7 DOWN 84067 B-B
INFORM 28 PENDANT
Black-Black - 25517 8420 B-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 4000K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 1.4 |
| Adjustability | non adjustable |
| Information | 84 x REFLECTOR FL-67°
EXCL.LED POWER SUPPLY 700/1050mA-DC
INCL.2 x CABLE SUSPENSION SINGLE AUTO. 1,6m
POWER VIA CABLE SUSPENSION
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | B |
| Certificates | CB, ENEC, EPD |
Lightsource
| Light source | LED |
| LED information | LED cluster 22,9-35,4W / CRI>80 (R9: 50) / 4000K / 4124-6056lm |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | 6056lm // 35,4W // 171lm/W |
| LED technics (luminaire) | 5287lm // 40,7W // 130lm/W |
Additional
| Requirements | INFORM SQ POWERBOX 50W (DIM5)
INFORM POWER SUPPLY 45W + SUSPENSION+CONNECTION ST |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
Electric connection parts
| Product name | Class | ||
|---|---|---|---|
 | SUSPENSION + CONNECTION ST B | III | Add to pinlist |
 | SUSPENSION + CONNECTION ST W | III | Add to pinlist |
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 45W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
 | INFORM POWER SUPPLY 45W | 220-240V | I | non-dimmable | IP20 | - | - | 1 | Add to pinlist |
