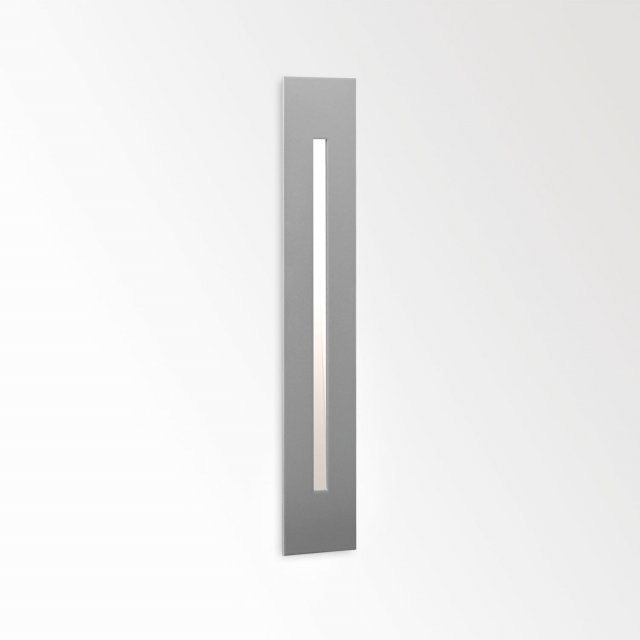

INLET S HW A
INLET WITH TRIM
Alu Grey - 304 05 13 A
CRI
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Wall |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 22 x 170 |
| Min. recessed depth (mm) | 45 |
| Thickness of mounting surface (mm) | min.12 |
| IP | IP20 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
| Information | EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 1W / CRI>80 (R9: 8) / 2700K / 132lm |
| TM-30 Values | rf: 85 / Rg: 97 |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L90B10 > 150000 |
| LED technics (light source) | 132lm // 1W // 132lm/W |
| LED technics (luminaire) | 16lm // 1,2W // 14lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM |
| Options | PLASTERKIT 145
CONCRETE BOX 145
MOUNTING KIT FLUSH INLET |
Technical data was measured in optimum conditions.
