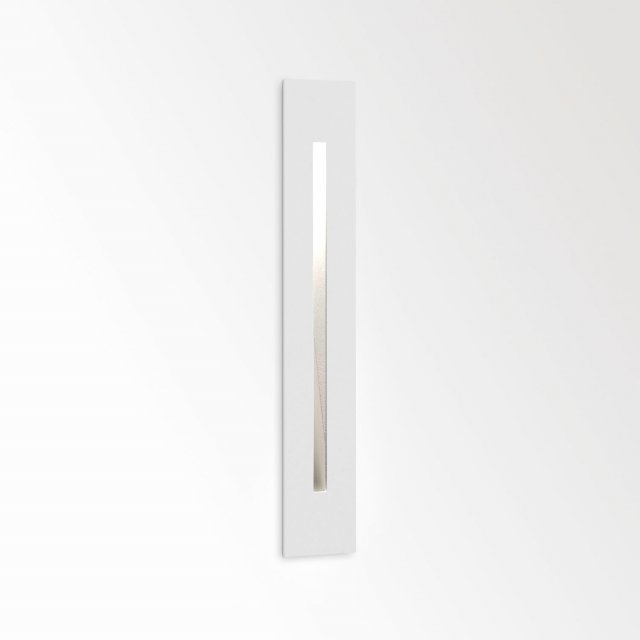

INLET S WW A

General

Location
Indoor
CCT
3000K
Fixation
Wall
Installation
Recessed
Cutout shape
rectangle
Cutout size (mm)
22 x 170
Max. recessed depth (mm)
45
Thickness of mounting surface (mm)
min.12
IP
IP20
Weight (kg)
0.2
Adjustability
non adjustable
Information
EXCL.LED POWER SUPPLY 350mA-DC

Electrical

Class
III
Dimming type
depending on type of external power supply
Energy class
E
Certificates
CB, EAC, ENEC

Lightsource

Light source
LED
LED information
LED cluster 1W / CRI>80 (R9: 6) / 3000K / 132lm
TM-30 Values
Rf: 86 / Rg: 95
SDCM
SDCM3
Riskgroup
RG2
LM80
L90B10 > 120000
LED technics (light source)
132lm // 1W // 132lm/W
LED technics (luminaire)
16lm // 1W // 14lm/W

Additional

Requirements
LED POWER SUPPLY 350mA-DC DIM
Options
PLASTERKIT 145 CONCRETE BOX 145 MOUNTING KIT FLUSH INLET
Technical data was measured in optimum conditions.
