KIX II HP 93011
Available colors
-
ALU GREY
13532 9310 A -
DARK GREY
13532 9310 N
Characteristics
| Location | EXTERIOR |
|---|---|
| Fixation | Floor Surface mounted / Wall Surface mounted |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-90° 1 x LED 16,3W / CRI>90 / 3000K / 2309lm REFLECTOR SP-11° EXCL.LED POWER SUPPLY 500mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 2309 lm // 16 W // 142 lm/W |
| LED Technics (luminaire) | 2047 lm // 19 W // 109 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.9 Kg |
| IP | IP65 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | D |
| Accessories |
KAP KIX HONEYCOMB KIX |
| Requirements |
LED POWER SUPPLY 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Floor surface mounted
-
Wall surface mounted
Finish your specification
Accessories
232 10 03
HONEYCOMB KIX
232 10 00

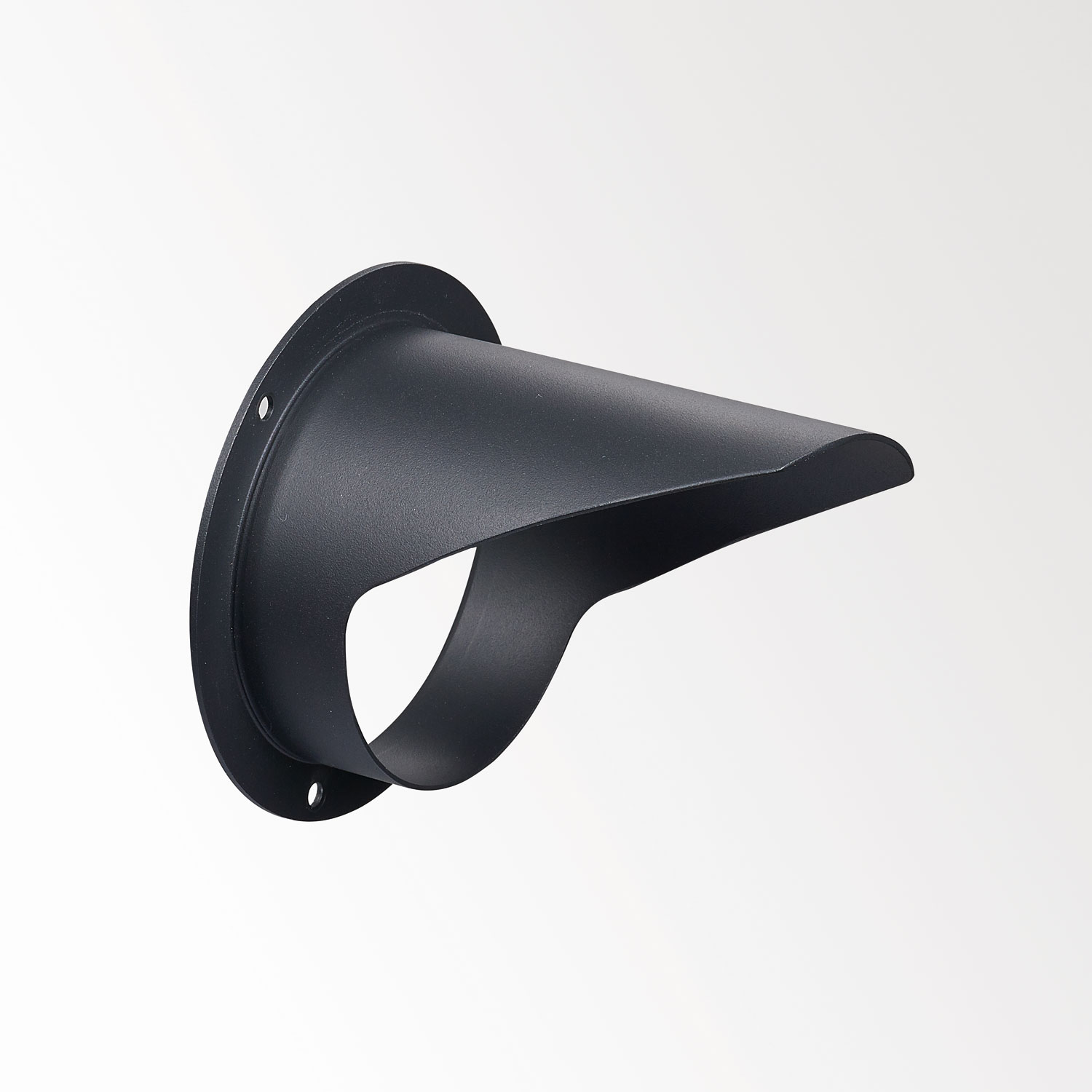

KAP KIX
Requirements
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Discover more about the KIX family

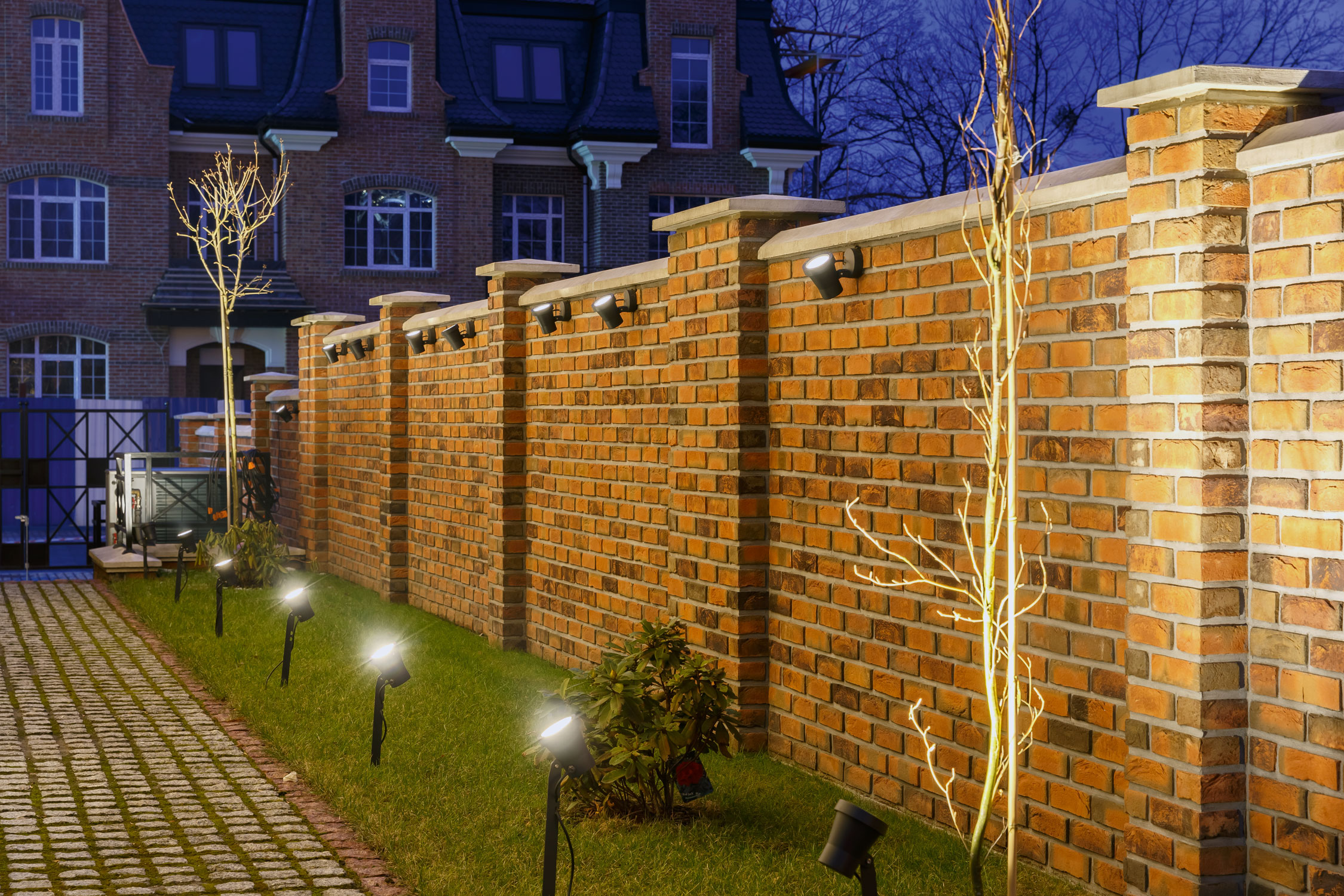

Flexible, subtle, elegant and powerful: these are the keywords that describe the Kix perfectly. Despite its low-profile appearance, Kix excels in light output and quality, ideal for walkway lighting or other landscape applications. Kix is easy and flexible to use thanks to the adjustable head, designed to provide optimal cooling and eliminate glare. Kix is available for installation on wall or floor, to strap around a tree or to mount in soft green areas with a pin. In addition to the more robust version of Kix, there is also a S(mall) and M(edium) version available. Kix S combines a power LED with a lens, resulting in a nice 10° light beam. All models have an IP65 rating and are available in alu grey or dark grey.
