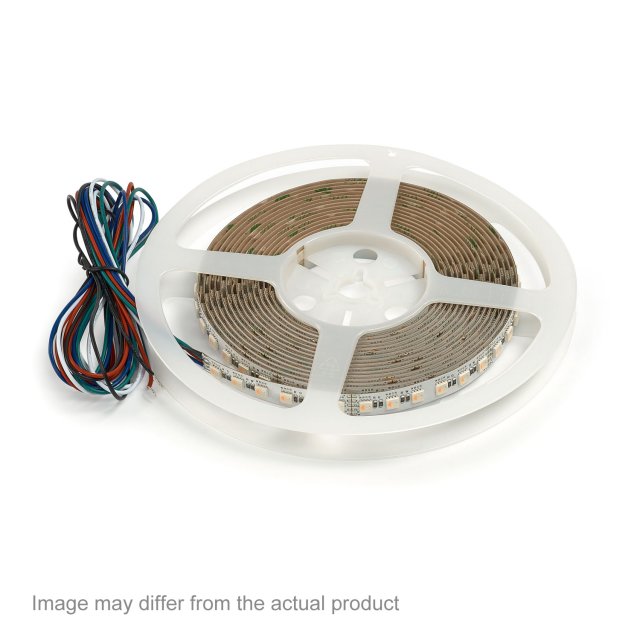

LEDFLEX IN TW 2760 5m

21030 0390

CRI

CCT

General

Location	Indoor
CCT	2700K-6000K
IP	IP20
Weight (kg)	0.1
Information	MAX.L / FLEX : 5m 2x 112 SMD LED/m DIVIDABLE PER 71,43mm LED PITCH : 8,93mm 24V-DC INCL.10 MOUNTING BRACKETS

Electrical

Voltage	24V-DC
Class	III
Energy class	F

Lightsource

LED information	@ 2700K: 9,5W/m / CRI>90 / 2700K-6000K / 1116lm/m OR @ 6000K: 9,5W/m / CRI>90 / 2700K-6000K / 1116lm/m
LED technics (light source)	@ 2700K: 1116lm/m // 9,5W/m // 117lm/W OR @ 6000K: 1116lm/m // 9,5W/m // 117lm/W

Additional

Requirements

LED POWER SUPPLY 24V-DC

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Spec sheet

Finish your specifications

Use the information listed below to complete your product

	Product name	Voltage	Class	Dimming type
	LED DIMMODULE 24V / 5CH / 5A DIM5	-	III	DALI or push button	Add to pinlist

Product name	Voltage	Class	Dimming type	IP	Cutout shape	Cutout size	max. devices / supply
LED POWER SUPPLY 24V-DC / 60W IP67 DIM1	110-240V	II	1-10V	IP67	round	65	max. 5,43m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 90W IP67 DIM1	110-240V	II	1-10V	IP67	round	75	max. 8,21m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 120W IP67 DIM1	110-240V	II	1-10V	IP67	round	75	max. 10,93m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 60W IP67 DIM5	110-240V	II	DALI	IP67	round	65	max. 5,43m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 90W IP67 DIM5	110-240V	II	DALI	IP67	round	75	max. 8,21m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 120W IP67 DIM5	110-240V	II	DALI	IP67	round	75	max. 10,93m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 24W	220-240V	II	non-dimmable	IP20	round	55	max. 2,14m	Add to pinlist
LED POWER SUPPLY 24V-DC / 60W DIM1	220-240V	II	1-10V	IP20	round	61	max. 5,43m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 90W DIM1	220-240V	II	1-10V	IP20	round	70	max. 8,21m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 120W DIM1	220-240V	II	1-10V	IP20	round	70	max.10,93m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 60W DIM5	220-240V	II	DALI	IP20	round	61	max. 5,43m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 100W DIM5	220-240V	II	DALI	IP20	round	70	max. 9,14m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 75W DIM8	220-240V	I	mains (phase cut-off)	IP20	round	85	max. 6,86m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 150W DIM8	220-240V	I	mains (phase cut-off)	IP20	round	85	max. 13,71m non-dim	Add to pinlist
LED POWER SUPPLY 24V-DC / 150W	100-240V	I	non-dimmable	IP67	round	75	max. 13,71m	Add to pinlist
24V-DC / 2 x 4A WIRELESS DIM UNIT	12/24V-DC	III	WDL = wireless dimmable	IP20	-	-	max. 8,79m	Add to pinlist
