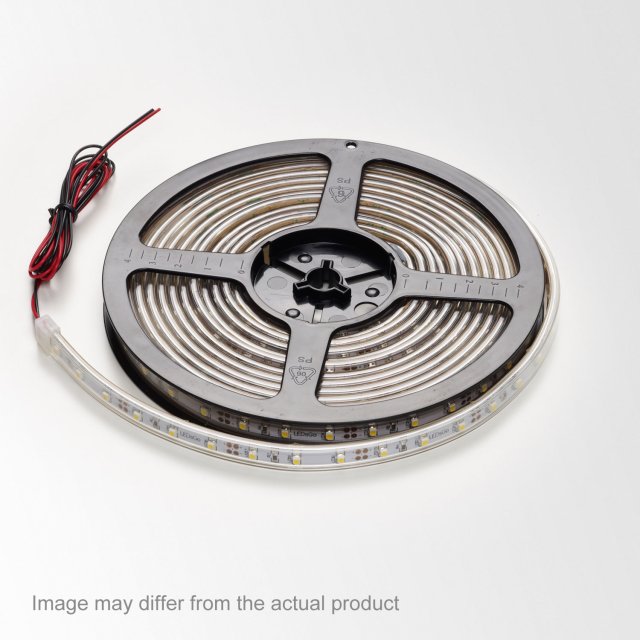

LEDFLEX OUT MP 927 5m

21030 0150

CRI

CCT

Location	Indoor, Outdoor
CCT	2700K
IP	IP65
Weight (kg)	0.1
Information	MAX.L / FLEX : 5m 210 x SMD LED/m DIVIDABLE PER 33,3mm 24V-DC INCL.10 MOUNTING BRACKETS INCL.6 END CAPS + GLUE

LED information	10W/m / CRI>90 / 2700K / 1000lm/m
LED technics (light source)	1000lm/m // 10W/m // 100lm/W

Requirements

LED POWER SUPPLY 24V-DC

Technical data was measured in optimum conditions.

Following downloads are available:

Use the information listed below to complete your product

Product name	Voltage	Class	Dimming type	IP	Cutout shape	Cutout size	max. devices / supply
LED POWER SUPPLY 24V-DC / 60W IP67 DIM1	110-240V	II	1-10V	IP67	round	65	max. 6m	Add to pinlist
LED POWER SUPPLY 24V-DC / 90W IP67 DIM1	110-240V	II	1-10V	IP67	round	75	max. 9m	Add to pinlist
LED POWER SUPPLY 24V-DC / 120W IP67 DIM1	110-240V	II	1-10V	IP67	round	75	max. 12m	Add to pinlist
LED POWER SUPPLY 24V-DC / 60W IP67 DIM5	110-240V	II	DALI	IP67	round	65	max. 6m	Add to pinlist
LED POWER SUPPLY 24V-DC / 90W IP67 DIM5	110-240V	II	DALI	IP67	round	75	max. 9m	Add to pinlist
LED POWER SUPPLY 24V-DC / 120W IP67 DIM5	110-240V	II	DALI	IP67	round	75	max. 12m	Add to pinlist
LED POWER SUPPLY 24V-DC / 24W	220-240V	II	non-dimmable	IP20	round	55	max. 2,40m	Add to pinlist
LED POWER SUPPLY 24V-DC / 60W DIM1	220-240V	II	1-10V	IP20	round	61	max. 6m	Add to pinlist
LED POWER SUPPLY 24V-DC / 90W DIM1	220-240V	II	1-10V	IP20	round	70	max. 9m	Add to pinlist
LED POWER SUPPLY 24V-DC / 120W DIM1	220-240V	II	1-10V	IP20	round	70	max. 12m	Add to pinlist
LED POWER SUPPLY 24V-DC / 60W DIM5	220-240V	II	DALI	IP20	round	61	max. 6m	Add to pinlist
LED POWER SUPPLY 24V-DC / 100W DIM5	220-240V	II	DALI	IP20	round	70	max. 10m	Add to pinlist
LED POWER SUPPLY 24V-DC / 75W DIM8	220-240V	I	mains (phase cut-off)	IP20	round	85	max. 7,50m	Add to pinlist
LED POWER SUPPLY 24V-DC / 150W DIM8	220-240V	I	mains (phase cut-off)	IP20	round	85	max. 15m	Add to pinlist
LED POWER SUPPLY 24V-DC / 150W	100-240V	I	non-dimmable	IP67	round	75	max. 15m	Add to pinlist
