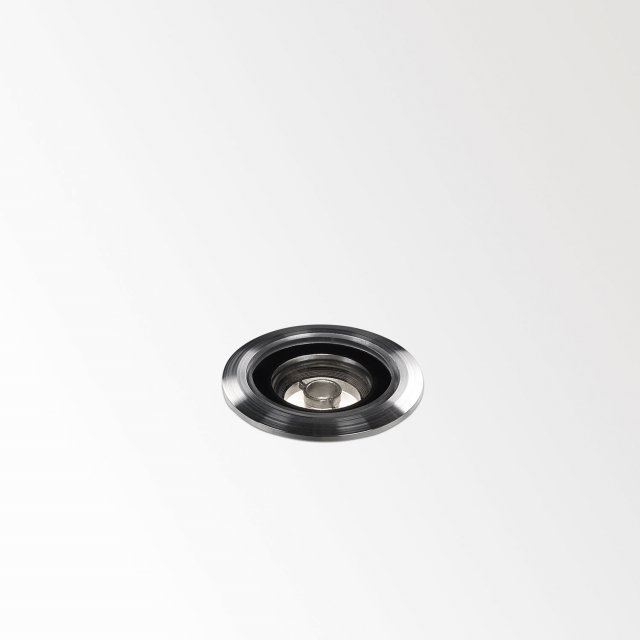

LOGIC 40 R A 93015 INOX

LOGIC 40 R A 93015 INOX

Inox - 13957 9310 INOX
CRI
Beam angle
CCT

General

Location
Outdoor
CCT
3000K
Fixation
Floor
Installation
Recessed
Cutout shape
round
Cutout size (mm)
43
Max. recessed depth (mm)
70
IP
IP67
IK
IK08
Weight (kg)
0.4
Adjustability
non adjustable
Information
REFLECTOR SP-15° INCL.1 x CABLE H05 RN-F 2 x 1mm² 0,5m EXCL.LED POWER SUPPLY 350mA-DC IEC 60598-2-13 : max.150kg 25N/cm² ESG 6mm

Electrical

Class
III
Dimming type
depending on type of external power supply
Energy class
F
Certificates
CB

Lightsource

Light source
LED
LED information
LED array 3,9W / CRI>90 (R9: 55) / 3000K / 385lm
TM-30 Values
Rf: 92 / Rg: 98
SDCM
SDCM2
Riskgroup
RG2 (threshold 0,6m)
LM80
L90B10 > 41000
LED technics (light source)
385lm // 3,9W // 98lm/W
LED technics (luminaire)
186lm // 4W // 42lm/W

Additional

Requirements
LED POWER SUPPLY 350mA-DC DIM
Options
LOGIC 40 BOX R CBOX IP68 CONNECTION KIT IP68 CONNECTOR 3P
Technical data was measured in optimum conditions.
