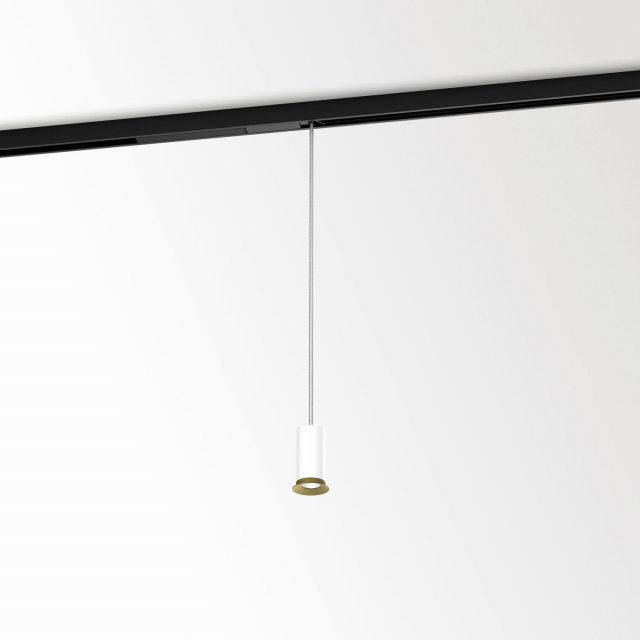

M - CUPPA C 92740 MDL B-GC
New

CUPPA SHADE 120 B

Black - 28800 0010 B
More info
CRI
Beam angle
CCT

General

Location
Indoor
CCT
3000K-1800K
Fixation
Low voltage systems
Installation
Low voltage system mounted
IP
IP20
Weight (kg)
0.4
Adjustability
non adjustable
Information
REFLECTOR WFL-40° EXCL.LED POWER SUPPLY 48V-DC INCL.1 x CABLE 2 x 0.75mm² / 1,6m

Electrical

Voltage
48V-DC
Class
III
Dimming type
MDL = 1-10V or DALI or push button
Energy class
F
Certificates
ENEC

Lightsource

Light source
LED
LED information
LED array 10,2W / CRI>90 (R9: 50) / 3000K-1800K / 1038lm
SDCM
SDCM2
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1038lm // 10,2W // 109lm/W
LED technics (luminaire)
795lm // 12W // 68lm/W

Additional

Remarks
Black cable for B-GC version and grey cable for W-GC version
Requirements
CUPPA SHADE LED POWER SUPPLY 48V-DC
Options
DIMMABLE MODULATOR
Technical data was measured in optimum conditions.
